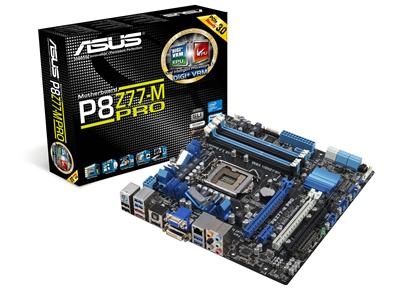

The P8Z77-M Pro with a 32GB DDR3 memory and PCLe 3.0, features the new Intel Z77 express chipset and supports a 22/32 nm CPU providing excellent overclocking capabilities of up to 2400 MHz. It also caters to a wide range of end users by including features such as GeForce® SLI™ and AMD Crossfire for a flawless architecture accommodating the power of up to four graphics cards, whether that be for professional graphics work, heavy duty multimedia or dedicated gaming.

The P8Z77-M Pro also includes Dual Intelligent Processors 2 consisting of two onboard chips, the TPU and EPU providing precise Vcore PWM, integrated graphics voltages and frequency module adjustments with minimal power loss. While the ASUS DIGI+ VRM digital power design empowers users with superior flexibility and perfect precision to ensure optimized performance, extreme system stability and greater power efficiency. Other incredible features include Fan Xpert+ which enables customizable fan controls and the ASUS exclusive UEFI BIOS with a multi-language setting offering a mouse controlled and user friendly interface which can be upgraded using BIOS USB flashback, complete within just one click! Furthermore, containing 6 USB 3.0 ports with USB boost UASP which gains unprecedented speed, the P8Z77-M Pro also features LudicLogix Virtu MVP which boots responsiveness, improves gaming frame rates by 30-70%, sharpens visual quality and works seamlessly with hundreds of game stations. Thus making The P8Z77-M Pro a multifaceted motherboard for excellent quality and value!

Asus Exclusive Innovations

• DIGI+ VRM
• Fan Xpert+
• Network iControl
• USB BIOS Flashback
• USB 3.0 Boost

Innovations

• Dual Intelligent Processors 3 - with New DIGI+ Power Control include three digital voltage controllers, allowing ultra-precise DRAM tuning in addition to ultra-precise CPU voltage control
• Quad GPU AMD CrossfireX - a flawless architecture accommodating the power of up to four graphics cards
• LudicLogix Virtu MVP - boots responsiveness, improves gaming frame rates by 30-70% and sharpens visual quality
• Supports NVIDIA® Quad-GPU SLI™ Technology (with 2 PCIex16 graphics card)

Spec details

• CPU LGA1155 socket for 3rd generation Intel® Core™ processor-based platform and 2nd generation Core™ i7/ i5/ i3/ Pentium® / Celeron® Processors, Supports 22/32nm CPU, Supports Intel® Turbo Boost Technology 2.0* * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
• Chipset Intel® Z77 Express Chipset
• Memory 4 x DIMM, max. 32GB, DDR3 2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C)/1866(O.C.)*/1600/1333/1066 MHz, non-ECC, un-buffered memory, Dual channel memory architecture, Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. Please refer to Memory QVL(Qualified Vendors List) for details.
• Expansion Slots 2 x PCI Express 3.0*/2.0 x16 slots (single at x16 or dual at x8 / x8 mode), 1 x PCI Express 2.0 x16 slot [black] (max. at x4 mode, compatible with PCIe x1 and x4 devices), 1 x PCI Express 2.0 x1 slots * PCIe 3.0 speed is supported by Intel® 3rd generation Core™ processors.
• VGA Integrated Graphics Processor- Intel® HD Graphics support, Multi-VGA output support: HDMI/ DVI-D/ RGB port, Supports HDMI with max. resolution 1920 x 1200@60Hz , Supports DVI-D with max. resolution 1920 x 1200@60Hz, Supports RGB with max. resolution 2048 x 1536@75Hz, Supports Intel® InTru™ 3D/Quick Sync Video/Clear Video HD Technology/Insider™, Maximum shared memory of 1696MB
• Multi-GPU support Supports NVIDIA® Quad-GPU SLI™ Technology (with 2 PCIex16 graphics card), Supports AMD® 3-Way/Quad-GPU CrossFireX™ Technology, Supports LucidLogix Virtu MVP Technology* * LucidLogix Virtu MVP supports Windows 7 operating systems.
• Storage Intel® Z77 Express Chipset, 2 x SATA 6.0 Gb/s ports (gray) with RAID 0, 1, 5, 10 support, 4 x SATA 3.0 Gb/s ports (blue) with RAID 0, 1, 5, 10 support, Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology, ASMedia® 1061 SATA 6Gb/s controller, 2 x eSATA 6Gb/s ports with port multiplier support, Supports on Intel® Core™ processor family with Windows 7 operating systems., * These SATA ports are for data hard drivers only. ATAPI devices are not supported.
• LAN Realtek® 8111F Gigabit LAN controller
• Audio Realtek® ALC892 8-channel high definition audio CODEC, Absolute Pitch 192khz/24bit true BD lossless sound, Supports jack-detection, multi-streaming, front panel jack-retasking, Optical S/PDIF out port at back I/O
• USB 1 x ASMedia USB 3.0 controller- supports ASUS USB 3.0 Boost UASP Mode, 2 x USB 3.0/2.0 ports at back panel(blue), Intel® Z77 Express Chipset- supports ASUS USB 3.0 Boost UASP Mode.*, 2 x USB 3.0/2.0 ports at mid-board for front panel support, 2 x USB 3.0/2.0 ports at back panel(blue), Intel® Z77 Express Chipset, 8 x USB 2.0/1.1 ports (6 ports at mid-board, 2 ports at back panel), * The USB 3.0 ports run USB 3.0 speed under Windows® 7 or later versions.
• ASUS Unique Features: ASUS Dual Intelligent Processors 2 with DIGI+ VRM: ASUS Digital Power Design, ASUS EPU, ASUS TPU
• ASUS Exclusive Overclocking Features: Precision Tweaker 2
• Back Panel I/O Ports 1 x HDMI port, 1 x DVI-D, 1 x RGB, 1 x Optical S/PDIF out, 2 x eSATA 6Gb/s ports, 1 x LAN (RJ45) port, 4 x USB 3.0/2.0 ports (blue, 1 supports USB BIOS Flashback), 2 x USB 2.0/1.1 ports, 8-channel Audio I/O ports
• Internal I/O Connectors: 1 x USB 3.0/2.0 connector supports additional 2 USB ports (19-pin), 3 x USB 2.0/1/1 connectors support additional 6 USB ports, 2 x SATA 6.0Gb/s connectors (gray), 4 x SATA 3.0Gb/s connectors (blue), 1 x CPU Fan connector (4-pin), 3 x Chassis Fan connectors (4-pin), Front panel audio connector (AAFP), 1 x S/PDIF out header, 24-pin EATX Power connector, 8-pin ATX 12V Power connector, System Panel(Q-Connector), 1 x USB BIOS Flashback button, 1 x MemOK! button, 1 x Clear CMOS Jumper, 1 x TPU switch, 1 x EPU switch, 1 x COM port connecter, 1 x TPM header,
• BIOS 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS,
• ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information
• Manageability WfM 2.0, DMI 2.0, WOL by PME, PXE, WOR by PME
• Accessories 2 x Serial ATA 6.0Gb/s cables, 2 x Serial ATA 3.0Gb/s cables, 1 x ASUS SLI bridge connector, 1 x I/O Shield, 2 in 1 Q-connector, User's manual
• Support DVD Drivers, ASUS Utilities, ASUS Update, Anti-virus software (OEM version)
• Form Factor mATX Form Factor, 9.6"x 9.6" (24.4cm x 24.4cm)
