Product

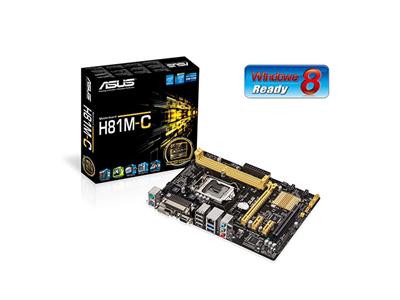

Asus H81M-C S1150 Intel H81 DDR3 mATX

Review this product
Quicklinx: 8Y6BWS00 Mfr#: H81M-C
Ordered upon request

Description

Micro-ATX H81 features new UEFI BIOS and dedicated fan controls to fulfill everyday productivity

  • New UEFI BIOS and EZ Mode: Friendlier, easier, and more intuitive with helpful info added
  • USB 3.0 BOOST (UASP Support): 170% faster transfer speeds than traditional USB 3.0
  • Network iControl: Real-time network bandwidth management
  • CrashFree BIOS 3: Restore corrupted BIOS data from USB storage
  • AI Suite 3: One-stop access to innovative ASUS features

Intel® LGA1150 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Ready

This motherboard supports Intel® 4th generation Core™ i7/i5/i3/Pentium®/Celeron® processors in the LGA1150 package, with iGPU, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, 2-channel (2 DIMM) DDR3 memory and 16 PCI Express lanes. This provides great graphics performance. Intel® 4th generation Core™ i7/i5/i3/Pentium®/Celeron® processors are among the most powerful and energy efficient CPUs in the world.

Intel® H81 Express Chipset

The Intel® H81 Express chipset is a single-chipset design that supports socket LGA1150 4th generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. It natively supports up to two USB 3.0 ports for up to ten times faster transfer rates than USB 2.0. Moreover, the Intel® H81 Express chipset also supports iGPU functionality, letting users enjoy the latest Intel integrated graphics performance.

  • Exclusive EZ mode adds useful info to become even easier

    Media-renowned UEFI BIOS from ASUS provides the smooth mouse-controlled graphical BIOS, and now features more intuitive functions to quickly take you to favorite BIOS pages and frequently-accessed settings through custom shortcuts. You can even write quick notes in-BIOS for future reference, view an activity log of setting changes and modifications, and rename SATA ports.
  • USB 3.0 Boost (UASP support)

    ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol). With USB 3.0 Boost technology, a USB device's transmission speed is significantly increased up to 170%, adding to already fast USB 3.0 performance. ASUS software automatically accelerates data rates for compatible USB 3.0 peripherals without any user interaction.
  • Effortless PCI Express component removal

    Press the Q-slot clip lightly, and graphics cards just pop out. The large winged clip is easy to reach so you don't have to struggle with installing or removing even the biggest graphics cards.
  • Intel H81 Express chipset

    The Intel H81 Express chipset is a single-chipset design that supports socket LGA1150 4th generation Intel Core i7/i5/i3/Pentium/Celeron processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. It natively supports up to two USB 3.0 ports for up to ten times faster transfer rates than USB 2.0. Moreover, the Intel H81 Express chipset also supports iGPU functionality, letting users enjoy the Intel integrated graphics performance.
  • GreenASUS

    Motherboards are EU Energy-related Products (ErP) ready, which requires products meet high efficiency standards with regards to energy consumption. This is in line with the ASUS vision of creating environmentally-friendly and energy-efficient products through design and innovation that reduce the carbon footprint of products and thus mitigate ecological impact.

Specifications

Summary

Product Description
ASUS H81M-C - motherboard - micro ATX - LGA1150 Socket - H81
Product Type
Motherboard - micro ATX
Chipset Type
Intel H81 Express
Processor Socket
1 x LGA1150 Socket
Compatible Processors
Pentium, Celeron, Core i5, Core i3, Core i7
Max RAM Size
16 GB
RAM Supported
2 DIMM slots - DDR3, non-ECC, unbuffered
Storage Ports
2 x SATA-600, 2 x SATA-300
USB / FireWire Ports
USB 3.0 2 x USB 3.0 + 4 x USB 2.0 + (4 x USB 2.0 via headers)
Max Allocated RAM Size
1024 MB
Audio
HD Audio (8-channel)
LAN
Gigabit Ethernet


Detail

General

Product Type
Motherboard - micro ATX
Chipset Type
Intel H81 Express
Processor Socket
LGA1150 Socket
Max Processors Qty
1
Compatible Processors
Pentium, Celeron, Core i5, Core i3, Core i7

Supported RAM

Max Size
16 GB
Technology
DDR3
Bus Clock
1600 MHz, 1333 MHz, 1066 MHz
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture

Graphics

Max Allocated RAM Size
1024 MB

Audio

Type
HD Audio (8-channel)
Audio Codec
Realtek ALC887
Compliant Standards
High Definition Audio

LAN

Network Controller
Realtek RTL8111G
Network Interfaces
Gigabit Ethernet

Expansion / Connectivity

Expansion Slots
1 x CPU , 2 x DIMM 240-pin , 1 x PCIe 2.0 x16 , 2 x PCIe 2.0 x1 , 1 x PCI
Storage Interfaces
SATA-300 -connectors: 2 x 7pin Serial ATA - 2 devices , SATA-600 -connectors: 2 x 7pin Serial ATA - 2 devices
Interfaces
1 x DVI , 2 x USB 3.0 , 1 x VGA , 1 x LAN (Gigabit Ethernet) , 4 x USB 2.0 , 1 x audio line-in - mini-jack , 1 x audio line-out - mini-jack , 1 x microphone - mini-jack , 1 x PS/2 keyboard , 1 x PS/2 mouse , 1 x parallel
Internal Interfaces
4 x USB 2.0 - header , 1 x serial - header , 1 x audio - header
Power Connectors
4-pin ATX12V connector, 24-pin main power connector

Features

BIOS Features
DMI 2.0 support, WfM 2.0 support, ASUS MyLogo2, ASUS Quiet Thermal Solution, ASUS EZ Flash 2, ACPI 2.0a support, ASUS EFI BIOS, SMBIOS 2.7 support
Sleep / Wake Up
Wake on LAN (WOL)
Hardware Features
ASUS Anti-Surge Protection, ESD Guards, GPU Boost, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, All-Solid Capacitor motherboard Design, ASUS EPU (Energy Processing Unit), ASUS Fan Xpert, Intel Turbo Boost Technology 2.0, ASUS USB 3.0 Boost technology, ASUS Network iControl, ESD Protection, ASUS Stainless Steel Back I/O

Miscellaneous

Included Accessories
I/O back plate
Cables Included
2 x Serial ATA cable
Software Included
Drivers & Utilities, ASUS MyLogo2, ASUS EZ Flash 2, ASUS AI Charger, ASUS AI Suite III
Compliant Standards
Plug and Play, ACPI 2.0a
Width
24.4 cm
Depth
17.8 cm
