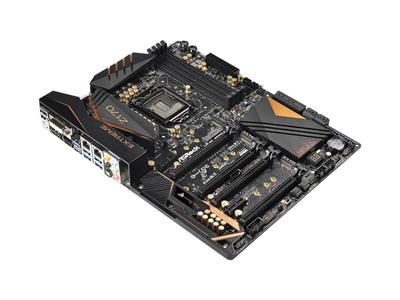

ASRock Z170 Extreme7+ Intel Z170 LGA1151 DDR4 PCIe M.2 USB3.1 ATX

Review this product
Quicklinx: BJWRWS00 Mfr#: Z170 Extreme7+
Processor Socket: LGA1151 Socket
Chipset: Intel Z170
Graphics: Graphics adapter (CPU required)
Form Factor: ATX
Memory Support: DDR4 SDRAM
Ordered upon request
£179.99 ex VAT
£215.98 inc VAT
Qty
Standard delivery Product out of stock. Due date unavailable.

Description

Z170 Extreme7+ : Unsurpassed storage with three Ultra M.2 slots

Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.
A combination of 820uF and 100uF Nichicon 12K Polymer capacitors. Together these capacitors provide clearer, efficient and more responsive CPU Vcore power, and overclockers may achieve higher scores.
Compared to traditional chokes, ASRock's premium 60 A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved vcore voltage to the motherboard.

  • ASRock Super Alloy
  • Supports 6th Generation Intel® Core™ Processors (Socket 1151)
  • Digi Power, 12 Power Phase Design
  • Supports Dual Channel DDR4 3600+(OC)
  • 4 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 PCIe 2.0 x1, 1 Half-size Mini-PCIe
  • NVIDIA® Quad SLI™, AMD 3-Way CrossFireX™
  • Graphics Output Options: DVI-D, HDMI, DisplayPort 1.2
  • Supports Triple Monitor
  • 7.1 CH HD Audio (Realtek ALC1150 Audio Codec), Supports Purity Sound™ 3 & DTS Connect
  • 3 SATA Express, 10 SATA3, 3 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 4 USB 3.1 (2 Type-C & 2 Type-A), 8 USB 3.0 (4 Front, 4 Rear)
  • Free Bundled ASRock Front USB 3.1 Panel
  • Supports Full Spike Protection, ASRock Live Update & APP Shop

Specifications

Summary

Product Description
ASRock Z170 Extreme7+ - motherboard - ATX - LGA1151 Socket - Z170
Product Type
Motherboard - ATX
Chipset Type
Intel Z170 Express
Processor Socket
1 x LGA1151 Socket
Compatible Processors
Pentium, Celeron, Core i5, Core i3, Core i7 ( supports 6th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron )
Max RAM Size
64 GB
RAM Supported
4 DIMM slots - DDR4 , non-ECC , unbuffered
Storage Ports
6 x SATA-600 (RAID), 4 x SATA-600, 3 x SATA Express port, 3 x Ultra M.2
USB / FireWire Ports
1 x USB-C + 1 x USB 3.1 + 4 x USB 3.0 + 2 x USB 2.0 + ( 2 x USB 3.0 + 3 x USB 2.0 via headers )
Audio
HD Audio (8-channel)
LAN
Gigabit Ethernet


Detail

General

Product Type
Motherboard - ATX
Chipset Type
Intel Z170 Express
Processor Socket
LGA1151 Socket
Max Processors Qty
1
Compatible Processors
Pentium, Celeron, Core i5, Core i3, Core i7 ( supports 6th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron )

Supported RAM

Max Size
64 GB
Technology
DDR4
Bus Clock
2133 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 2400 MHz (O.C.), 3200 MHz (O.C.), 3600 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0

Audio

Type
HD Audio (8-channel)
Audio Codec
Realtek ALC1150
Compliant Standards
High Definition Audio

LAN

Network Controller
Intel I219V / I211-AT
Network Interfaces
Gigabit Ethernet

Expansion / Connectivity

Expansion Slots
1 x CPU , 4 x DIMM 288-pin , 4 x PCIe 3.0 x16 , 1 x PCIe 3.0 x1 , 1 x PCIe 2.0 x1 , 1 x Mini PCIe
Storage Interfaces
SATA-600 -connectors: 10 x 7pin Serial ATA, 3 x M.2, 3 x SATA Express port - RAID 0 / RAID 1 / RAID 10 / RAID 5
RAID Features
Intel Rapid Storage Technology
Interfaces
1 x PS/2 keyboard / mouse , 2 x USB 2.0 , 1 x HDMI , 1 x DVI-D , 2 x LAN (Gigabit Ethernet) , 1 x audio line-out - mini-jack , 1 x audio line-in - mini-jack , 1 x microphone - mini-jack , 1 x audio line-out (rear) - mini-jack , 1 x audio line-out (center/subwoofer) - mini-jack , 1 x SPDIF out , 1 x DisplayPort , 1 x USB-C , 1 x USB 3.1 , 4 x USB 3.0
Internal Interfaces
3 x USB 2.0 - header , 2 x USB 3.0 - header , 1 x audio - header , 1 x Thunderbolt - header , 1 x serial - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type
AMI
BIOS Features
SMBIOS 2.3.1. support, ACPI 1.1 support, UEFI BIOS
Manual Settings
Processor core voltage, memory voltage
Hardware Monitoring
CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage, power supply fan tachometer
Sleep / Wake Up
Wake on LAN (WOL)
Hardware Features
12 Phase Power Design, ASRock Instant Flash, Intel Turbo Boost Technology 2.0, Intel Smart Response Technology, ASRock XFast LAN, ASRock XFast RAM, ASRock Crashless BIOS, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, ASRock OMG (Online Management Guard), ASRock Internet Flash, Digi Power Design, ASRock Dehumidifier Function, ASRock Fast Boot, ASRock UEFI System Browser, ASRock UEFI Tech Service, ASRock Easy Driver Installer, ASRock USB Key, 4K resolution support, Supports Intel K-Series unlocked CPU, ASRock BCLK, ELNA Audio Capacitors, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, Nichicon 12K Platinum Caps, I/O Armor, ASRock Live Update

Miscellaneous

Included Accessories
I/O back plate, 1 x M.2 screw, front USB 3.1 panel, 4 x front USB 3.1 screws
Cables Included
4 x Serial ATA cable , 1 x SLI bridge , 1 x Serial ATA power adapter , 1 x USB power cable
Software Included
Drivers & Utilities, ASRock A-Tuning, ASRock Disk Health Report
Compliant Standards
WHQL, FCC, ACPI 1.1, EuP Ready, ErP Ready
