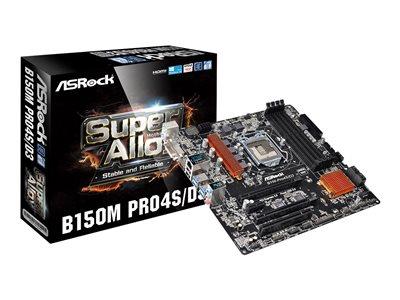

ASRock B150M Pro4S/D3 Intel B150 S1151 DDR3 USB3.0 mATX
Description
What you've never understood about your computer is that it is scared to death of water, H2O, humidity or whatever you'd like to name it. And even though you do not see the water, actually there may be lots of excessive moist in the air killing your motherboard silently and slowly. No, your motherboard doesn't melt when in contact with water like the wicked witch of the west, but it dies of short circuit. Luckily, ASRock has a high density glass fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
High Density Glass Fabric PCBTraditional Glass Fabric PCB
-
High density glass fabric PCB
What you've never understood about your computer is that it is scared to death of water, H2O, humidity or whatever you'd like to name it. And even though you do not see the water, actually there may be lots of excessive moist in the air killing your motherboard silently and slowly. No, your motherboard doesn't melt when in contact with water like the wicked witch of the west, but it dies of short circuit. Luckily, ASRock has a high density glass fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.High Density Glass Fabric PCBTraditional Glass Fabric PCB -
2 x PCIe 3.0 x16 slots
PCIe Gen3 x16 slots that are fully compatible with standard graphics cards and other add-on cards. -
UEFI EZ mode
EZ mode is a dashboard which contains multiple readings of the system's current status. You can check the most crucial information of your system, such as CPU speed, DRAM frequency, SATA information, fan speed, etc. -
ELNA audio caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles. -
Solid capacitor design
ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime. -
Intel LAN
Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
Specifications
Summary
- Product Description
- ASRock B150M Pro4S/D3 - motherboard - micro ATX - LGA1151 Socket - B150
- Product Type
- Motherboard - micro ATX
- Chipset Type
- Intel B150
- Processor Socket
- 1 x LGA1151 Socket
- Compatible Processors
- Pentium, Celeron, Core i5, Core i3, Core i7 (supports 6th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron)
- Max RAM Size
- 64 GB
- RAM Supported
- 4 DIMM slots - DDR3, DDR3L, non-ECC, unbuffered
- Storage Ports
- 6 x SATA-600
- USB / FireWire Ports
- 4 x USB 3.0 + 2 x USB 2.0 + (2 x USB 3.0 + 4 x USB 2.0 via headers)
- Max Allocated RAM Size
- 1792 MB
- Audio
- HD Audio (8-channel)
- LAN
- Gigabit Ethernet
Detailed Specification
General
- Product Type
- Motherboard - micro ATX
- Chipset Type
- Intel B150
- Processor Socket
- LGA1151 Socket
- Max Processors Qty
- 1
- Compatible Processors
- Pentium, Celeron, Core i5, Core i3, Core i7 (supports 6th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron)
Supported RAM
- Max Size
- 64 GB
- Technology
- DDR3, DDR3L
- Bus Clock
- 1600 MHz, 1333 MHz, 1066 MHz, 1866 MHz (O.C.)
- Supported RAM Integrity Check
- Non-ECC
- Registered or Buffered
- Unbuffered
- Features
- Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Graphics
- Max Allocated RAM Size
- 1792 MB
Audio
- Type
- HD Audio (8-channel)
- Audio Codec
- Realtek ALC892
- Compliant Standards
- High Definition Audio, Premium Blu-ray audio support
LAN
- Network Controller
- Intel I219V
- Network Interfaces
- Gigabit Ethernet
Expansion / Connectivity
- Expansion Slots
- 1 x CPU , 4 x DIMM 240-pin , 1 x PCIe 3.0 x16 (x16 mode) , 1 x PCIe 3.0 x16 (x4 mode) , 1 x PCIe 3.0 x1 , 1 x PCI
- Storage Interfaces
- SATA-600 -connectors: 6 x 7pin Serial ATA - 6 devices
- Interfaces
- 1 x PS/2 keyboard , 1 x PS/2 mouse , 1 x HDMI , 1 x DVI-D , 4 x USB 3.0 , 2 x USB 2.0 , 1 x LAN (Gigabit Ethernet) , 1 x audio line-out - mini-jack , 1 x audio line-in - mini-jack , 1 x microphone - mini-jack
- Internal Interfaces
- 1 x USB 3.0 - header , 2 x USB 2.0 - header , 1 x audio - header , 2 x serial - header , 1 x parallel - header
- Power Connectors
- 24-pin main power connector, 8-pin ATX12V connector
Features
- BIOS Type
- AMI
- BIOS Features
- UEFI BIOS, SMBIOS 2.7 support, ACPI 5.0 support
- Hardware Monitoring
- CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage
- Sleep / Wake Up
- Wake on LAN (WOL)
- Hardware Features
- ASRock Instant Flash, HDCP compliant, Intel Extreme Memory Profile (XMP) support, ASRock APP Charger, Intel Turbo Boost Technology 2.0, Intel Clear Video HD Technology, ASRock XFast LAN, ASRock XFast RAM, ASRock Crashless BIOS, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, ASRock OMG (Online Management Guard), ASRock Internet Flash, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, Intel Small Business Advantage support, ASRock Dehumidifier Function, ASRock Fast Boot, ASRock Restart to UEFI, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock UEFI Tech Service, ASRock Easy Driver Installer, ASRock USB Key, 4K resolution support, ELNA Audio Capacitors, ASRock Full Spike Protection, ASRock Cloud, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Live Update
Miscellaneous
- Included Accessories
- I/O back plate
- Cables Included
- 2 x Serial ATA cable
- Software Included
- Drivers & Utilities, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock Disk Health Report
- Compliant Standards
- WHQL, FCC, EuP Ready, ErP Ready, ACPI 5.0
