Description

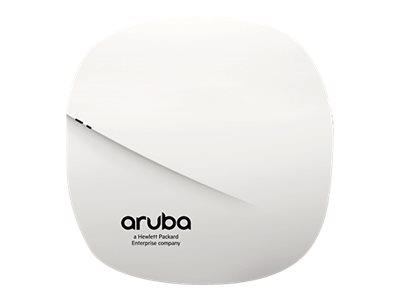

The entry-level Aruba 300 Series Wave 2 access points deliver high performance and superb user experience for medium density environments. These Wave 2 access points deliver multi-user MIMO (MU-MIMO) aware ClientMatch to boost network efficiency and support the growing device density demands on your network.
The 300 Series also has an integrated Bluetooth Aruba Beacon that simplifies the remote management of a network of large-scale battery-powered Aruba beacons while also providing advanced location and indoor way finding, and proximity-based push notification capabilities.
-
Intelligent Power Monitoring
For the Aruba 300 Series Access Points, the IPM power-save feature applies when the unit is powered by an 802.3af PoE source.By default, the USB interface will be the first feature to turn off if AP power consumption exceeds the available power budget. -
Threat Protection and Security
The Aruba 300 Series Access Points feature integrated wireless intrusion protection offers threat protection and mitigation, and eliminates the need for separate RF sensors and security appliances.IP reputation and security services identify, classify, and block malicious files, URLs and IPs, providing comprehensive protection against advanced online threats.Integrated Trusted Platform Module (TPM) for secure storage of credentials and keys.
Specifications
Summary
- Product Description
- HPE Aruba Instant IAP-305 (RW) - radio access point - Wi-Fi 5
- Device Type
- Radio access point
- Form Factor
- In-ceiling - indoor
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
- Frequency Band
- 2.4 GHz, 5 GHz
- Performance
- Concurrent data rate (5 GHz): 1300 Mbps , Concurrent data rate (2.4 GHz): 400 Mbps , Peak data rate: 1.7 Gbps
- Capacity
- Wireless clients per Wi-Fi radio: 255 , BSSIDs per radio: 16
- Included Accessories
- 2 x ceiling mounting clip
- Dimensions (WxDxH)
- 16.5 cm x 16.5 cm x 3.8 cm
- Weight
- 460 g
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Radio access point
- Ruggedized Design
- Indoor
- Width
- 16.5 cm
- Depth
- 16.5 cm
- Height
- 3.8 cm
- Weight
- 460 g
Networking
- Form Factor
- In-ceiling
- Connectivity Technology
- Wireless
- Line Coding Format
- CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
- Spread Spectrum Method
- OFDM, DSSS
- Frequency Band
- 2.4 GHz, 5 GHz
- Performance
- Concurrent data rate (5 GHz): 1300 Mbps , Concurrent data rate (2.4 GHz): 400 Mbps , Peak data rate: 1.7 Gbps
- Capacity
- Wireless clients per Wi-Fi radio: 255 , BSSIDs per radio: 16
- Status Indicators
- System, wireless
- Features
- Auto-uplink (auto MDI/MDI-X), DFS support, Quality of Service (QoS), Trusted Platform Module (TPM), reset button, 2T2R MIMO technology, Maximum Ratio Combining (MRC), 3T3R MIMO technology, Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), cyclic shift diversity (CSD), MU-MIMO technology, enhanced ClientMatch, Aruba Beacons Bluetooth Low-Energy (BLE) technology, wireless intrusion protection
- Compliant Standards
- IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac
Aerial
- Antenna
- Internal
- Antenna Qty
- 3
- Directivity
- Omni-directional
- Gain Level
- 5.4 dBi
Expansion / Connectivity
- Interfaces
- 1 x 1000Base-T - RJ-45 , 1 x USB 2.0 - Type A
Miscellaneous
- Included Accessories
- 2 x ceiling mounting clip
- MTBF
- 1,116,000 hours
- Compliant Standards
- EN 60950, IEC 60950, UL 60950, CB, UL 2043, FCC, EN 60601-1-2, cTUVus, EN 300 328, EN 301 489, EN 60601-1-1, LVD 72/23/EEC, EN 301 893, R&TTE Directive 1995/5/EC
Power
- Power Consumption Operational
- 13 Watt
Software / System Requirements
- OS Provided
- InstantOS
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 5 - 93% (non-condensing)
