Description
The Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F delivers performance and value with support for RIP routing, Access OSPF, 10GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.
-
High-performance access layer switches
The Aruba 2930F Switch series provides performance, security, and ease of use for enterprise edge, SMB, and branch office networks. Delivers a consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager and Airwave Network Management. -
Performance and power at the edge
The Aruba 2930F Switch series is designed with a powerful Aruba ProVision ASIC, to enable the mobile campus with SDN optimizations, low latency, increased packet buffering, and adaptive power consumption. Increase performance with selectable queue configurations and associated memory buffering that meets your specific network application requirements. -
Security and quality of service you can rely on
The Aruba 2930F Switch series includes security and quality of services features to build a network that meets ever-changing corporate policies and compliances while protecting your data from both inside and outside attacks. Flexible authentication options include standards based security protocols such as 802.1X, MAC and Web Authentication, to enhance security and policy-driven application authentication. Powerful, multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, Port Security, and MAC address lockout. -
Simplify with integrated wired/wireless management
The Aruba 2930F Switch series supports Aruba ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies. Supports Aruba Airwave Network Management software to provide common platform for Zero Touch Provisioning management, and monitoring for wired and wireless network devices. RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events. Out-of-band Ethernet management port keeps management traffic segmented from your network data traffic.
Specifications
Summary
- Product Description

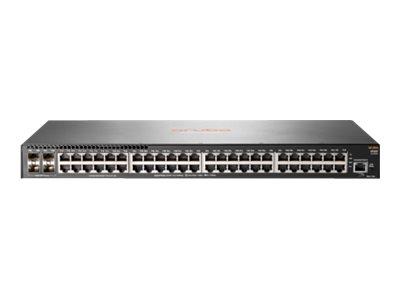

- HPE Aruba 2930F 48G 4SFP - switch - 48 ports - Managed - rack-mountable
- Device Type
- Switch - 48 ports - L3 - Managed
- Enclosure Type
- Side to side airflow rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 48 x 10/100/1000 + 4 x Gigabit SFP
- Performance
- Throughput: 77.4 Mpps , Switching capacity: 104 Gbps , Latency (1 Gbps): 3.8 µs
- Capacity
- IPv4 routing table entries: 2000 , IPv6 routing table entries: 1000 , MAC address entries: 32768
- MAC Address Table Size
- 32K entries
- Jumbo Frame Support
- 9220 bytes
- Routing Protocol
- OSPF, RIP, RIP-1, RIP-2, BGP, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR
- Remote Management Protocol
- SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, XRMON
- Features
- Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), MAC address lockout, dynamic ARP protection, DHCP protection, Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), Type of Service (ToS), OpenFlow support, CPU protection, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Virtual Extensible LAN (VXLAN), Management Information Base (MIB) II, Energy-Efficient Ethernet (EEE)
- Compliant Standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
- Power
- AC 100-127/200-240 V (50/60 Hz)
- Dimensions (WxDxH)
- 44.25 cm x 24.63 cm x 4.39 cm
- Weight
- 3.1 kg
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 48 ports - L3 - Managed
- Enclosure Type
- Side to side airflow rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 48 x 10/100/1000 + 4 x Gigabit SFP
- Performance
- Throughput: 77.4 Mpps , Switching capacity: 104 Gbps , Latency (1 Gbps): 3.8 µs
- Capacity
- IPv4 routing table entries: 2000 , IPv6 routing table entries: 1000 , MAC address entries: 32768
- MAC Address Table Size
- 32K entries
- Jumbo Frame Support
- 9220 bytes
- Routing Protocol
- OSPF, RIP, RIP-1, RIP-2, BGP, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR
- Remote Management Protocol
- SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, XRMON
- Encryption Algorithm
- MD5, SSL
- Authentication Method
- RADIUS, PAP, CHAP, TACACS, TACACS+
- Features
- Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), MAC address lockout, dynamic ARP protection, DHCP protection, Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), Type of Service (ToS), OpenFlow support, CPU protection, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Virtual Extensible LAN (VXLAN), Management Information Base (MIB) II, Energy-Efficient Ethernet (EEE)
- Compliant Standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
- Processor
- 1 x ARM Cortex: 1.016 GHz
- RAM
- 1 GB DDR3 SDRAM
- Flash Memory
- 4 GB
Expansion / Connectivity
- Interfaces
- 48 x 1000Base-T RJ-45 , 4 x Gigabit LAN SFP , 1 x serial (console) RJ-45 , 1 x Type B
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 100-127/200-240 V (50/60 Hz)
- Power Consumption Operational
- 46.6 Watt
- 80 PLUS Certification
- 80 PLUS Silver
Miscellaneous
- Compliant Standards
- CISPR 22 Class A, CISPR 24, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, ICES-003 Class A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, VCCI Class A, IEC 60825-1:2007, CNS 13438, EN 55024:2010, EN 55022:2010, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 60825-1:2007, FCC CFR47 Part 15 A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
Dimensions & Weight
- Width
- 44.25 cm
- Depth
- 24.63 cm
- Height
- 4.39 cm
- Weight
- 3.1 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 15 - 95% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 15 - 95% (non-condensing)
