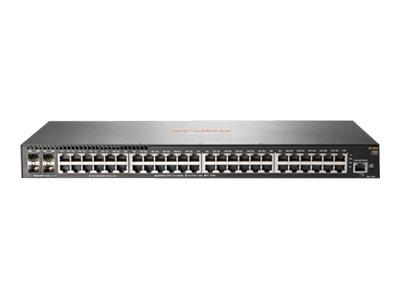

Aruba 2540 48G PoE+ 4SFP+ Switch

Aruba 2540 48G PoE+ 4SFP+ Switch

Review this product
Quicklinx: CRVLWS00 Mfr#: JL357A
Type: Gigabit Ethernet
Ports: 48
Managed: Yes
POE: PoE+
Stock Status: In Stock
12 in stock
£1,618.27 ex VAT
£1,941.92 inc VAT
Qty
Standard delivery Delivered within 3 working days

Description

Designed for the digital workplace, the Aruba 2540 Switch Series is optimized for mobile users. With advanced security and network management tools - Aruba ClearPass policy manager and Aruba AirWave - this layer-2 access switch is easy to deploy and manage. With support from cloud-based Aruba Central, you can quickly set up remote branch sites with little or no IT help.

Specifications

Summary

Product Description
Aruba 2540 48G PoE+ 4SFP+ - switch - 48 ports - Managed - rack-mountable
Device Type
Switch - 48 ports - Managed
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+
Power Over Ethernet (PoE)
PoE+
PoE Budget
370 W
Performance
Throughput: 112 Mpps , Switching capacity: 176 Gbps
MAC Address Table Size
16384 entries
Power
AC 120/230 V (50/60 Hz)
Dimensions (WxDxH)
44.25 cm x 30.42 cm x 4.39 cm
Weight
4.46 kg


Detail

General

Device Type
Switch - 48 ports - Managed
Enclosure Type
Desktop, rack-mountable, wall-mountable 1U
Subtype
Gigabit Ethernet
Ports
48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+
Power Over Ethernet (PoE)
PoE+
PoE Budget
370 W
Performance
Throughput: 112 Mpps , Switching capacity: 176 Gbps
MAC Address Table Size
16384 entries
Encryption Algorithm
SSL
Authentication Method
RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Processor
1 x ARM: 1016 MHz
RAM
1 GB DDR3 SDRAM
Flash Memory
4 GB

Expansion / Connectivity

Interfaces
48 x 1000Base-T RJ-45 PoE+ , 4 x Gigabit / 10Gbit LAN SFP+ , 1 x console RJ-45 management , 1 x micro-USB Type B management

Power

Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
459 Watt

Miscellaneous

Compliant Standards
CISPR 22 Class A, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, ICES-003 Class A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, VCCI Class A, IEC 60825-1:2007, CNS 13438, EN 55024: CISPR 24:2010, EN 55022:2010, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 60825-1:2007, FCC CFR47 Part 15 A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013

Dimensions & Weight

Width
44.25 cm
Depth
30.42 cm
Height
4.39 cm
Weight
4.46 kg

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
15 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
15 - 90% (non-condensing)
