Description

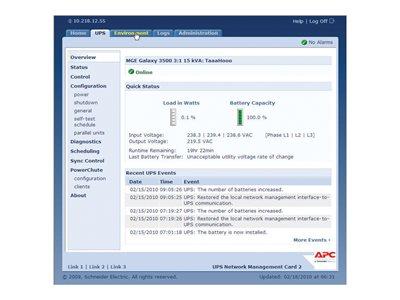

APC UPS network management card allows for secure monitoring and control of an individual APC UPS via web browser, command line interface, or SNMP. Embedded technology provides exceptional reliability with notification features that inform you of problems as they occur.
-
BACnet/IP Support
Supports reporting UPS information to Building Management Systems or other third party management systems via BACnet/IP (BTL certified) (Single Phase Smart-UPS and Symmetra only). -
Command line interface
Offers simultaneous remote management access through Telnet and SSH -
Compatible with SmartSlot enabled UPSs
Compatible with all SmartSlot UPSs -
Device Encryption
Securely connect via HTTPS/SSL, SSH (up to 2048-bit encryption), SNMPv3 -
Expandable Input and Output Ports
Supports the Temperature Sensor, Temperature and Humidity Sensor and Dry Contact I/O Accessory -
IPv6 Support
Capable of operating on a network using IPv6 protocol -
Modbus TCP Support
Supports reporting UPS information to Building Management Systems or other third party management systems via Modbus TCP. -
Multiple language support
Web browser interface available in English, French, Russian, Chinese, Japanese, Korean, German, Italian, Spanish, Portuguese -
Multiple user access
Supports simultaneous web browser access for up to 8 users and network command line interface access for up to 3 users -
Smart Battery Management Support
Detailed battery information including battery cartridge parameters provides early-warning fault analysis to simplify management of the entire battery system (SRT Smart-UPS only). -
Standard UPS RFC 1628 MIB Compatible
Make UPS information available to your preferred network, server or enterprise management system by forwarding SNMP traps (events) using RFC 1628 MIB. -
UPS Firmware Update
User friendly mechanism to remotely and seamlessly update UPS firmware via the web browser interface (SMX, SMT and SRT Smart-UPS only).
Specifications
Summary
- Product Description
- APC Network Management Card 2 with Environmental Monitoring - remote management adapter
- Device Type
- Remote management adapter
- Form Factor
- Plug-in module
- Dimensions (WxDxH)
- 12.1 cm x 11.4 cm x 3.8 cm
- Weight
- 90 g
- Cabling Type
- Ethernet 10Base-T, Ethernet 100Base-TX
- Data Link Protocol
- 10Mb LAN, 100Mb LAN
- Network / Transport Protocol
- FTP
- Colour
- Black
- Manufacturer Warranty
- 2-year warranty
- Designed For
- P/N: SCL500RM1UC, SCL500RM1UNC, SMT1000JOS6, SMTL1000RM2UC, SMTL1000RMI2UC, SMTL750RMI2UC, SMX2KR2UNCX145, SRT1000RMXLI, SRT1000RMXLI-NC, SRT1000XLI, SRT1000XLJ, SRT10KXLTW, SRT1500RMXLI-NC, SRT1500XLI, SRT1500XLJ, SRT2200XLI-KR, SRT2400XLJ, SRT3000XLA-TW, SRT3000XLTW, SRT5KRMXLW-TW, SRT6KXLTW
Detailed Specification
General
- Device Type
- Remote management adapter
- Form Factor
- Plug-in module
Networking
- Connectivity Technology
- Wired
- Cabling Type
- Ethernet 10Base-T, Ethernet 100Base-TX
- Data Link Protocol
- Ethernet, Fast Ethernet
- Network / Transport Protocol
- FTP
- Remote Management Protocol
- SNMP 1, SNMP 2, Telnet, SNMP 3, HTTPS, SSH, CLI, SCP
- Features
- 2048-bit encryption, E-mail alert, IPv6 support, firmware upgradable, RADIUS support, temperature sensor
Expansion / Connectivity
- Interfaces
- X network - Ethernet 10Base-T/100Base-TX
- Compatible Slots
- 1 x SmartSlot
Miscellaneous
- Included Accessories
- Temperature sensor
- Encryption Algorithm
- SSL
- Compliant Standards
- C-Tick, GOST, ICES-003, EN55024, RoHS, FCC Part 15 A, REACH, AS/NZS 3548 Class A, VCCI Class A, EN 55022 Class A
- Colour
- Black
Software / System Requirements
- Software Included
- Drivers & Utilities
Dimensions & Weight
- Width
- 12.1 cm
- Depth
- 11.4 cm
- Height
- 3.8 cm
- Weight
- 90 g
Dimensions & Weight (Shipping)
- Shipping Width
- 23.5 cm
- Shipping Depth
- 15.9 cm
- Shipping Height
- 5.1 cm
- Shipping Weight
- 340 g
Manufacturer Warranty
- Service & Support
- Limited warranty - replace or repair - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 0 - 95%
Compatibility Information
- Designed For
- P/N: G3H10K3IM6X710, G3H10K3IM9X710, GVX1000K1000GS, GVX1000K1000HS, GVX1000K1250GS, GVX1000K1250HS, GVX1000K1500GS, GVX1000K1500HS, GVX1000K750GS, GVX1000K750HS, GVX1250K1000GS, GVX1250K1000HS, GVX1250K1250GS, GVX1250K1250HS, GVX1250K1500GS, GVX1250K1500HS, GVX1500K1250GS, GVX1500K1250HS, GVX1500K1500GS, GVX1500K1500HS, GVX1750K1500GS, GVX1750K1500HS, GVX500K1000GS, GVX500K1000HS, GVX500K1250GS, GVX500K1250HS, GVX500K1500GS, GVX500K1500HS, GVX500K500GS, GVX500K500HS, GVX500K750GS, GVX500K750HS, GVX625K1000GS, GVX625K1000HS, GVX625K625GS, GVX625K625HS, GVX750K1000GS, GVX750K1000HS, GVX750K1250GS, GVX750K1250HS, GVX750K1500GS, GVX750K1500HS, GVX750K500GS, GVX750K500HS, GVX750K750HS, SCL500RM1UC, SCL500RM1UNC, SMT1000I-AR, SMT1000IC, SMT1000JOS6, SMT1000R2I-AR, SMT1000RMI2UC, SMT1500I-AR, SMT1500IC, SMT1500NC, SMT1500R2I-AR, SMT1500RM2UNC, SMT1500RMI2UC, SMT2200C, SMT2200I2U-BR, SMT2200I-AR, SMT2200IC, SMT2200R2I-AR, SMT2200RM2UC, SMT2200RM2UNC, SMT2200RMI2UC, SMT30002U-BR, SMT3000C, SMT3000I2U-BR, SMT3000I-AR, SMT3000IC, SMT3000R2I-AR, SMT3000RM2UC, SMT3000RM2UNC, SMT3000RMI2UC, SMT750JOS6, SMT750RMI2UC, SMTL1000RM2UC, SMTL1000RMI2UC, SMTL750RM2UC, SMTL750RMI2UC, SMX1000US, SMX1500RMNCUS, SMX1500RMUS, SMX2000LVNCUS, SMX2000LVUS, SMX2200RMLVUS, SMX2KR2UNCX145, SMX2KRMLVNCUS, SMX3000HV-BR, SMX3000HVTUS, SMX3000LVNCUS, SMX3000LVUS, SMX3000RMLVUS, SMX3KRMLVNCUS, SMX750US, SRC1KI, SRC2KI, SRT1000RMXLI, SRT1000RMXLI-NC, SRT1000XLI, SRT1000XLJ, SRT10KXLTUS, SRT10KXLTW, SRT10RMXLIX806, SRT1500RMXLA-NC, SRT1500RMXLI, SRT1500RMXLI-NC, SRT1500XLI, SRT1500XLJ, SRT2200RMXLAUS, SRT2200XLI-KR, SRT2400XLJ, SRT3000XLA-TW, SRT3000XLAUS, SRT3000XLTW, SRT5KRMXLTUS, SRT5KRMXLW-TW, SRT5KXLJ, SRT5KXLTUS, SRT6KXLTUS, SRT6KXLTW, SRT8KXLTUS, SRTL1000RMXLI, SRTL1000RMXLI-NC, SRTL1500RMXLI, SRTL1500RMXLI-NC, SRTL2200RMXLI, SRTL2200RMXLI-NC, SRTL3000RMXLI, SRTL3000RMXLI-NC, SUA1500I-IN, SUA3000I-IN, SURT20KUXI-IN, SUVTJP20KF2B4S, SY30K40E
