Description
Attach the device to an emergency power off (EPO) system so that power can be turned off in an emergency situation. Green mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. High frequency design reduces or eliminates bulky transformers resulting in lighter units for ease of handling. Energy meter provides actual kilowatt hours of usage for energy conscious users. Intuitive LCD interface provides clear and accurate information with the ability to configure the UPS locally with easy to use navigation keys. UPS recognizes when external battery packs are attached and automatically adjusts runtime. Multiple outlet groups may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on / off and non-critical load shedding.
-
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics -
Cold-start capable
Provides temporary battery power when the utility power is out -
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature -
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection -
High online efficiency
Reduces utility costs, generates less heat -
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys -
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning -
Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding -
SmartSlot
Customize UPS capabilities with management cards -
Energy meter
Provides actual kilowatt hours of usage for energy conscious users -
Scalable runtime
Allows additional run time to be quickly added as needed -
Plug-and-Play external batteries
Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS -
Auto recognition of external batteries
UPS recognizes when external battery packs are attached and automatically adjusts runtime -
Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment -
Multiple switched outlet groups
Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding -
High frequency design
Reduces or eliminates bulky transformers resulting in lighter units for ease of handling -
EPO
Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation
Specifications
Summary
- Product Description

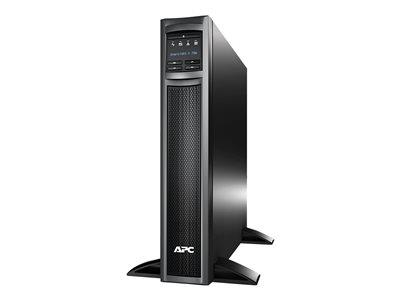

- APC Smart-UPS X 750 Rack/Tower LCD - UPS - 600 Watt - 750 VA
- Device Type
- UPS - rack-mountable
- Rack Size
- 2U
- Weight
- 22.1 kg
- Input Voltage
- AC 230 V
- Output Voltage
- AC 230 V ± 5%
- Power Capacity
- 600 Watt / 750 VA
- Input Connectors
- Power IEC 60320 C14
- Output connectors
- 8 x power IEC 60320 C13
- Battery
- Lead Acid
- Run Time (Up To)
- 14.2 min at full load
- Colour
- Black
- Dimensions (WxDxH)
- 8.9 cm x 49 cm x 43.2 cm
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Device Type
- UPS - rack-mountable
- Height (Rack Units)
- 2U
- Colour
- Black
Power Device
- UPS Technology
- Line interactive
- Power Modules Qty
- 1
- Input Voltage
- AC 230 V
- Frequency Provided
- 47 - 63 Hz
- Frequency Required
- 50/60 Hz
- Input Connectors
- Power IEC 60320 C14
- Power Output Connectors Details
- 8 x power IEC 60320 C13
- Output Voltage
- AC 230 V ± 5% - 47 - 63 Hz
- Power Capacity
- 600 Watt / 750 VA
- Output Waveform
- Sinewave
- Surge Suppression
- Yes
- Surge Energy Rating
- 645 Joules
Battery
- Technology
- Lead Acid
- Run Time (Up To)
- 14.2 min at full load , 37.8 min at half load
- Recharge Time
- 3 hours
Expansion / Connectivity
- Expansion Slots
- 1 (total) / 1 (free) x SmartSlot
Miscellaneous
- Cables Included
- Serial cable - external , Power cable - integrated - 1.8 m
- Features
- Audible alarm, LCD display
- Compliant Standards
- C-Tick, UL 1449, VDE, EN 50091-2, RoHS Exemption 7b, EN 50091-1
Software / System Requirements
- Software Included
- APC PowerChute Business Edition
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years , Limited warranty - batteries - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 0 - 95%
- Sound Emission
- 40 dBA
Dimensions & Weight
- Width
- 8.9 cm
- Depth
- 49 cm
- Height
- 43.2 cm
- Weight
- 22.1 kg
Dimensions & Weight (Shipping)
- Shipping Width
- 24.6 cm
- Shipping Depth
- 62 cm
- Shipping Height
- 58.9 cm
- Shipping Weight
- 26.5 kg
