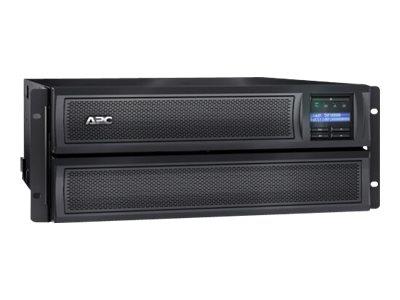

Name: APC Smart-UPS X 3000 Rack/Tower LCD 2700 Watt 3000 VA
Price: 1824.6 GBP
Availability: InStock
Rating: 0.0 (0 reviews)

Description

APC award-winning Smart-UPS is the most popular UPS in the world for servers, storage and network power protection. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery.

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics
Cold-start capable
Provides temporary battery power when the utility power is out
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection
High online efficiency
Reduces utility costs, generates less heat
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning
SmartSlot
Customize UPS capabilities with management cards
Energy meter
Provides actual kilowatt hours of usage for energy conscious users
Scalable runtime
Allows additional run time to be quickly added as needed
Auto recognition of external batteries
UPS recognizes when external battery packs are attached and automatically adjusts runtime
Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment
Multiple switched outlet groups
Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding
High frequency design
Reduces or eliminates bulky transformers resulting in lighter units for ease of handling
StruxureWare Data Center Expert Compatibility
Discover and monitor PowerChute Agents via SNMP v1 or v3. Integrate SNMP Traps for timely notifications of UPS critical events
Sequenced shutdown and reboot
Customize shutdown and reboot sequence of connected servers and UPSs

Specifications

Summary

Product Description: APC Smart-UPS X 3000 Rack/Tower LCD - UPS - 2700 Watt - 3000 VA

Device Type: UPS - rack-mountable / external

Rack Size: 4U

Weight: 38.64 kg

Input Voltage: AC 230 V

Output Voltage: AC 230 V

Power Capacity: 2700 Watt / 3000 VA

Input Connectors: 1 x power IEC 60320 C20

Output connectors: 8 x power IEC 60320 C13 , 2 x IEC jumper , 2 x power IEC 60320 C19

Battery: Lead Acid

Batteries Qty: 1

Run Time (Up To): 6.3 min at full load

Networking: RS-232, USB

Colour: Black

Dimensions (WxDxH): 17.8 cm x 48.3 cm x 43.2 cm

Manufacturer Warranty: 3-year warranty

Designed For: P/N: AR2487G, AR3105W, AR3140G, AR3155W, AR3305W, AR3340G, AR3355SP, AR3355W, AR4000MVX429, AR4000MVX432, AR4018IX429, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4024IX431, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4038IX432, NBWL0356A, SMX2000LVUS, SRT1500RMXLA-NC

Detailed Specification

General

Device Type: UPS - rack-mountable / external

Height (Rack Units): 4U

Colour: Black

Power Device

UPS Technology: Line interactive

Input Voltage: AC 230 V

Input Voltage Range: AC 140 - 280 V

Frequency Provided: 47 - 63 Hz

Frequency Required: 47 - 63 Hz

Input Connectors: 1 x power IEC 60320 C20

Power Output Connectors Details: 8 x power IEC 60320 C13 , 2 x IEC jumper , 2 x power IEC 60320 C19

Output Voltage: AC 230 V 47 - 63 Hz

Power Capacity: 2700 Watt / 3000 VA

Output Waveform: Sinewave

Surge Suppression: Yes

Surge Energy Rating: 645 Joules

Circuit Protection: Circuit breaker

Efficiency: 98.5%

Battery

Quantity: 1

Technology: Lead Acid

Run Time (Up To): 6.3 min at full load , 15.7 min at half load

Recharge Time: 3 hours

Networking

Remote Management Interface: RS-232, USB

Expansion / Connectivity

Interfaces: 1 x USB , 1 x RS-232 , 1 x EPO (emergency power off)

Expansion Slots: 1 (total) / 1 (free) x SmartSlot

Miscellaneous

Cables Included: Serial cable , USB cable , Power cable 1.83 m

Rack Mounting Kit: Included

Features: Audible alarm, LCD display, overload protection

Compliant Standards: CSA, C-Tick, GOST, UL 1449, UL 1778, VDE, IEC 60950, EN 50091-2, IRAM, RoHS, EN 50091-1, FCC Part 15 A, REACH

Software / System Requirements

Software Included: APC PowerChute Business Edition

Manufacturer Warranty

Service & Support: Limited warranty - 3 years , Limited warranty - batteries - 2 years

Environmental Parameters

Min Operating Temperature: 0 °C

Max Operating Temperature: 40 °C

Humidity Range Operating: 0 - 95%

Sound Emission: 55 dBA

Dimensions & Weight

Width: 17.8 cm

Depth: 48.3 cm

Height: 43.2 cm

Weight: 38.64 kg

Dimensions & Weight (Shipping)

Shipping Width: 58.6 cm

Shipping Depth: 63.3 cm

Shipping Height: 33 cm

Shipping Weight: 47.73 kg

Compatibility Information

Designed For: P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC2513, ACF001, ACF002, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR202, AR203A, AR204A, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3810, AR3812, AR3814, AR4000MV, AR4000MVX429, AR4000MVX432, AR4018, AR4018A, AR4018I, AR4018IA, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X431, AR4018X432, AR4024, AR4024A, AR4024I, AR4024IA, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X429, AR4038X431, AR4038X432, AR7007, AR7050, AR7057, AR8135BLK, NBWL0356A, SMX2000LVNC, SMX2000LVUS, SRT1500RMXLA-NC, SU2200R3X167
