Description
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys. Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
-
High online efficiency
Reduces utility costs, generates less heat. -
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. -
High frequency design
Reduces or eliminates bulky transformers resulting in lighter units for ease of handling. -
Energy meter
Provides actual kilowatt hours of usage for energy conscious users. -
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. -
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys. -
Auto recognition of external batteries
UPS recognizes when external battery packs are attached and automatically adjusts runtime. -
Multiple switched outlet groups
Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. -
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics. -
Scalable runtime
Allows additional run time to be quickly added as needed. -
Cold-start capable
Provides temporary battery power when the utility power is out. -
Plug-and-Play external batteries
Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS. -
Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment. -
Intelligent Card Slot
Customize UPS capabilities with management cards. -
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Specifications
Summary
- Product Description

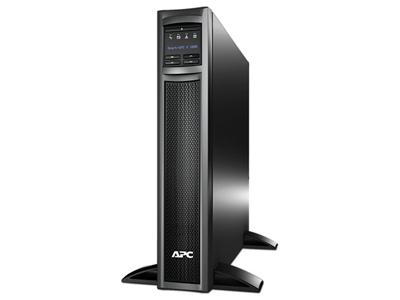

- APC Smart-UPS X 1000 Rack/Tower LCD - UPS - 800 Watt - 1000 VA
- Device Type
- UPS - rack-mountable
- Rack Size
- 2U
- Weight
- 22.9 kg
- Input Voltage
- AC 230 V
- Output Voltage
- AC 230 V
- Power Capacity
- 800 Watt / 1000 VA
- Input Connectors
- 1 x power IEC 60320 C14
- Output connectors
- 8 x power IEC 60320 C13
- Battery
- Lead Acid
- Run Time (Up To)
- 8.1 min at full load
- Networking
- RS-232, USB
- Colour
- Black
- Dimensions (WxDxH)
- 43.2 cm x 49 cm x 8.9 cm
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Device Type
- UPS - rack-mountable
- Height (Rack Units)
- 2U
- Colour
- Black
Power Device
- UPS Technology
- Line interactive
- Input Voltage
- AC 230 V
- Input Voltage Range
- AC 160 - 285 V
- Input Voltage Range (Adjustable)
- AC 151 - 302 V
- Frequency Provided
- 47 - 63 Hz
- Input Connectors
- 1 x power IEC 60320 C14
- Power Output Connectors Details
- 8 x power IEC 60320 C13
- Output Voltage
- AC 230 V 47 - 63 Hz
- Power Capacity
- 800 Watt / 1000 VA
- Output Waveform
- Sinewave
- Surge Suppression
- Yes
- Surge Energy Rating
- 600 Joules
- Circuit Protection
- Circuit breaker
Battery
- Technology
- Lead Acid
- Run Time (Up To)
- 8.1 min at full load , 24.2 min at half load
- Recharge Time
- 3 hours
Networking
- Remote Management Interface
- RS-232, USB
Expansion / Connectivity
- Interfaces
- 1 x EPO (emergency power off) , 1 x management (RS-232) , 1 x USB
- Expansion Slots
- 1 (total) / 1 (free) x SmartSlot
Miscellaneous
- Cables Included
- Serial cable - external , USB cable - external , Power cable 1.8 m
- Rack Mounting Kit
- Included
- Features
- Audible alarm, emergency power off, LCD display, noise filtering
- Compliant Standards
- C-Tick, UL 1449, VDE, EN 50091-2, RoHS Exemption 7b, RoHS, EN 50091-1, REACH
Software / System Requirements
- Software Included
- APC PowerChute Business Edition
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years , Limited warranty - batteries - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 0 - 95%
- Sound Emission
- 40 dBA
Dimensions & Weight
- Width
- 43.2 cm
- Depth
- 49 cm
- Height
- 8.9 cm
- Weight
- 22.9 kg
Dimensions & Weight (Shipping)
- Shipping Width
- 58.9 cm
- Shipping Depth
- 62 cm
- Shipping Height
- 24.6 cm
- Shipping Weight
- 27.3 kg
