Description
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry's most rigorous standards.
Network manageable via serial, USB or optional Ethernet. Includes Powerchute Network Shutdown Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.
Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation, and zero transfer time to battery during power events.
-
LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms. -
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection. -
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance -
Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Specifications
Summary
- Product Description

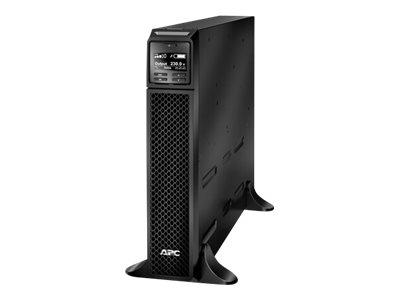

- APC Smart-UPS SRT 2200VA - UPS - 1980 Watt - 2200 VA
- Device Type
- UPS - external
- Weight
- 25 kg
- Input Voltage
- AC 230 V
- Output Voltage
- AC 230 V ± 3%
- Power Capacity
- 1980 Watt / 2200 VA
- Input Connectors
- Power IEC 60320 C20, power BS 1363A, Europlug (power CEE 7/16)
- Output connectors
- 8 x power IEC 60320 C13 , 2 x power IEC 60320 C19
- Battery
- Lead Acid
- Run Time (Up To)
- 3.9 min at full load
- Networking
- RS-232, USB
- Dimensions (WxDxH)
- 8.5 cm x 58.4 cm x 43.2 cm
- Environmental Standards
- ENERGY STAR
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Device Type
- UPS - external
Power Device
- UPS Technology
- On-line
- Input Voltage
- AC 230 V
- Input Voltage Range
- AC 220 - 240 V
- Input Voltage Range (Adjustable)
- AC 100 - 275 V
- Frequency Provided
- 50/60 Hz
- Frequency Required
- 40 - 70 Hz
- Input Connectors
- Power IEC 60320 C20, power BS 1363A, Europlug (power CEE 7/16)
- Power Output Connectors Details
- 8 x power IEC 60320 C13 , 2 x power IEC 60320 C19
- Output Voltage
- AC 230 V ± 3% - 50/60 Hz
- Power Capacity
- 1980 Watt / 2200 VA
- Output Waveform
- Sinewave
- Surge Suppression
- Yes
- Surge Energy Rating
- 340 Joules
Battery
- Technology
- Lead Acid
- Recharge Time
- 3 hours
- Features
- Maintenance free, sealed, leak-proof
Networking
- Remote Management Interface
- RS-232, USB
Expansion / Connectivity
- Interfaces
- 1 x serial - RJ-45 , 1 x EPO (emergency power off) , 1 x management (USB)
- Expansion Slots
- 1 (total) / 1 (free) x SmartSlot
Miscellaneous
- Cables Included
- Power cable 2.44 m
- Features
- Audible alarm, emergency power off, LCD display, internal bypass
- Compliant Standards
- VDE, IEC 62040-2, IP20, EAC, RCM, IEC 62040-1
Software / System Requirements
- Software Included
- APC PowerChute Business Edition
Sustainability Information
- ENERGY STAR
- Yes
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years , Limited warranty - batteries - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 0 - 95% (non-condensing)
- Sound Emission
- 55 dBA
Dimensions & Weight
- Width
- 8.5 cm
- Depth
- 58.4 cm
- Height
- 43.2 cm
- Weight
- 25 kg
Dimensions & Weight (Shipping)
- Shipping Width
- 59.9 cm
- Shipping Depth
- 81 cm
- Shipping Height
- 24.6 cm
- Shipping Weight
- 30.84 kg
