LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms. -
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection. -
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance -
Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Specifications
Summary
- Product Description

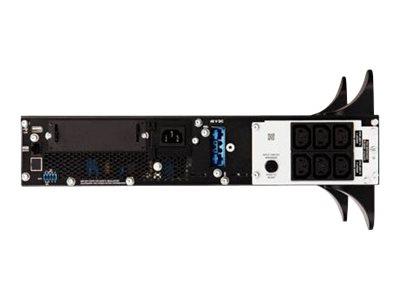

- APC Smart-UPS SRT 1000VA RM - UPS - 1000 Watt - 1000 VA
- Device Type
- UPS - Power Factor Correction (PFC) - rack-mountable
- Rack Size
- 2U
- Weight
- 21 kg
- Input Voltage
- AC 230 V
- Output Voltage
- AC 220/230/240 V ± 2%
- Power Capacity
- 1000 Watt / 1000 VA
- Input Connectors
- 1 x power IEC 60320 C14, power BS 1363A, Europlug (power CEE 7/16)
- Output connectors
- 6 x power IEC 60320 C13
- Battery
- Lead Acid
- Run Time (Up To)
- 8.5 min at full load
- Networking
- RS-232, USB
- Colour
- Black
- Dimensions (WxDxH)
- 43.2 cm x 50.5 cm x 8.5 cm
- Environmental Standards
- ENERGY STAR
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Device Type
- UPS - Power Factor Correction (PFC) - rack-mountable
- Height (Rack Units)
- 2U
- Colour
- Black
Power Device
- UPS Technology
- On-line
- Input Voltage
- AC 230 V
- Input Voltage Range
- AC 50 - 150 / 80 - 150 V
- Frequency Provided
- 50/60 Hz ± 3Hz
- Frequency Required
- 40 - 70 Hz
- Input Connectors
- 1 x power IEC 60320 C14, power BS 1363A, Europlug (power CEE 7/16)
- Power Output Connectors Details
- 6 x power IEC 60320 C13
- Output Voltage
- AC 220/230/240 V ± 2% - 50/60 Hz
- Power Capacity
- 1000 Watt / 1000 VA
- Output Waveform
- Sinewave
- Surge Suppression
- Yes
- Surge Energy Rating
- 432 Joules
- Circuit Protection
- Circuit breaker
Battery
- Technology
- Lead Acid
- Run Time (Up To)
- 8.5 min at full load , 21.1 min at half load , 9.8 min at 900 Watts , 13.8 min at 700 Watts , 59.6 min at 200 Watts
- Recharge Time
- 3 hours
- Features
- Maintenance free, sealed, leak-proof
Networking
- Remote Management Interface
- RS-232, USB
Expansion / Connectivity
- Interfaces
- 1 x management (RS-232) - RJ-45 , 1 x EPO (emergency power off) , 1 x management (USB)
- Expansion Slots
- 1 (total) / 1 (free) x SmartSlot
Miscellaneous
- Cables Included
- Power cable 1.83 m , USB cable - external
- Rack Mounting Kit
- Included
- Features
- Audible alarm, LCD display, internal bypass, LED indicators, cold-start function, firmware upgradable, automatic self-test, hot-swappable batteries, Eco-Mode, reset breaker
- Compliant Standards
- RoHS, REACH, IP20, EAC
Software / System Requirements
- Software Included
- APC PowerChute Business Edition
Sustainability Information
- ENERGY STAR
- Yes
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years , Limited warranty - batteries - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 0 - 95% (non-condensing)
- Sound Emission
- 50 dBA
Dimensions & Weight
- Width
- 43.2 cm
- Depth
- 50.5 cm
- Height
- 8.5 cm
- Weight
- 21 kg
Dimensions & Weight (Shipping)
- Shipping Width
- 59.4 cm
- Shipping Depth
- 74.9 cm
- Shipping Height
- 24.6 cm
- Shipping Weight
- 29.6 kg
