Description
Text and mimic diagrams display modes of operation, system parameters and alarms. Operating mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Specifications
Summary
- Product Description

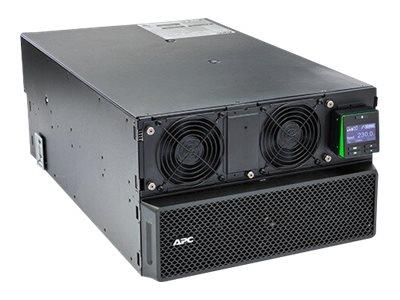

- APC Smart-UPS SRT 10000VA RM - UPS - 10 kW - 10000 VA
- Device Type
- UPS - rack-mountable
- Rack Size
- 6U
- Weight
- 111.82 kg
- Input Voltage
- AC 230 V
- Output Voltage
- AC 230 V ± 3%
- Power Capacity
- 10 kW / 10000 VA
- Input Connectors
- Hardwire 5-wire (3PH + N + G), hardwire 3-wire (1PH + N + G)
- Output connectors
- 6 x power IEC 60320 C13 , 4 x power IEC 60320 C19 , 1 x hardwire 3-wire (HN + G) , 3 x IEC connector
- Battery
- Lead Acid
- Run Time (Up To)
- 3.8 min at full load
- Networking
- Ethernet 10/100, USB
- Dimensions (WxDxH)
- 43.2 cm x 71.5 cm x 26.3 cm
- Manufacturer Warranty
- 3 years warranty
Detail
General
- Device Type
- UPS - rack-mountable
- Height (Rack Units)
- 6U
- Colour
- Black
Power Device
- UPS Technology
- On-line
- Input Voltage
- AC 230 V
- Frequency Provided
- 50/60 Hz
- Frequency Required
- 45 - 65 Hz
- Input Connectors
- Hardwire 5-wire (3PH + N + G), hardwire 3-wire (1PH + N + G)
- Power Output Connectors Details
- 6 x power IEC 60320 C13 , 4 x power IEC 60320 C19 , 1 x hardwire 3-wire (HN + G) , 3 x IEC connector
- Output Voltage
- AC 230 V ± 3% - 50/60 Hz
- Power Capacity
- 10 kW / 10000 VA
- Output Waveform
- Sinewave
- Surge Suppression
- Yes
- Surge Energy Rating
- 480 Joules
- Efficiency
- 98%
Battery
- Technology
- Lead Acid
- Run Time (Up To)
- 3.8 min at full load , 11.5 min at half load
- Recharge Time
- 3 hours
- Features
- Maintenance free, sealed, leak-proof
Networking
- Remote Management Interface
- Ethernet 10/100, USB
Expansion / Connectivity
- Interfaces
- 1 x management (Ethernet) - RJ-45 , 1 x management (USB) - 4 pin USB Type B , 1 x EPO (emergency power off) , 1 x serial - RJ-45
- Expansion Slots
- 1 (total) / 1 (free) x SmartSlot
Miscellaneous
- Features
- Audible alarm, LCD display
- Compliant Standards
- C-Tick, VDE, IEC 60950, EN 50091-2, RoHS, EN 50091-1, REACH, EN 62040-2, IP20, EAC
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years , Limited warranty - batteries - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 0 - 95% (non-condensing)
- Sound Emission
- 55 dBA
Dimensions & Weight
- Width
- 43.2 cm
- Depth
- 71.5 cm
- Height
- 26.3 cm
- Weight
- 111.82 kg
Dimensions & Weight (Shipping)
- Shipping Width
- 60 cm
- Shipping Depth
- 1 m
- Shipping Height
- 46.1 cm
- Shipping Weight
- 130 kg
