Description
APC Smart-UPS protects your data by supplying reliable, network-grade power in either traditional Tower or Rack-optimized form factors for space constrained business critical applications. Award winning APC Smart-UPS is the perfect UPS for protecting business critical fileservers (Intel or UNIX based), minicomputers, network switches and hubs, Point of Sale, retail/bank back office and ATM's.
-
Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
Specifications
Summary
- Product Description

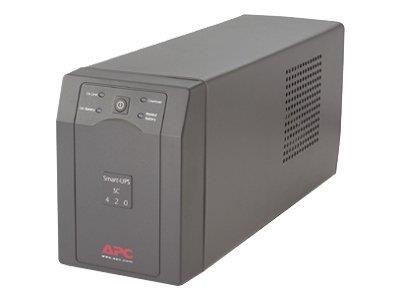

- APC Smart-UPS SC 420VA - UPS - 260 watt - 420 VA
- Device Type
- UPS - external
- Weight
- 9 kg
- Input Voltage
- AC 230 V
- Output Voltage
- AC 230 V
- Power Capacity
- 260 watt / 420 VA
- Input Connectors
- 1 x power IEC 60320 C14
- Output connectors
- 4 x power IEC 60320 C13
- Battery
- Lead Acid
- Battery Form Factor
- Plug-in module
- Run Time (Up To)
- 5.5 min at full load
- Colour
- Grey
- Dimensions (WxDxH)
- 12 cm x 37 cm x 17 cm
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- UPS - external
- Battery Enclosure Type
- Plug-in module
- Colour
- Grey
Power Device
- UPS Technology
- Line interactive
- Input Voltage
- AC 230 V
- Input Voltage Range
- AC 160 - 286 V
- Input Voltage Range (Adjustable)
- AC 151 - 302 V
- Frequency Required
- 50/60 Hz
- Input Connectors
- 1 x power IEC 60320 C14
- Power Output Connectors Details
- 4 x power IEC 60320 C13
- Output Voltage
- AC 230 V
- Power Capacity
- 260 watt / 420 VA
- Dataline Surge Protection
- Ethernet 10/100Base-TX - RJ-45
- Surge Suppression
- Yes
- Surge Energy Rating
- 320 joules
Battery
- Technology
- Lead Acid
- Run Time (Up To)
- 5.5 min at full load
Expansion / Connectivity
- Interfaces
- 1 x RS-232 - 9 pin D-Sub (DB-9)
Miscellaneous
- Cables Included
- Power cable - integrated - 1.8 m , Serial cable
- Features
- Audible alarm
- Compliant Standards
- FCC Class B certified, CSA, NOM, UL 1449, UL 1778, FCC Part 15
Software / System Requirements
- Software Included
- APC PowerChute Business Edition
Manufacturer Warranty
- Service & Support
- Limited warranty - parts and labour - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 0 - 95%
Dimensions & Weight
- Width
- 12 cm
- Depth
- 37 cm
- Height
- 17 cm
- Weight
- 9 kg
