Description
APC Smart-UPS protects your data by supplying reliable, network-grade power in either traditional Tower or Rack-optimized form factors for space constrained business critical applications. Award winning APC Smart-UPS is the perfect UPS for protecting business critical fileservers (Intel or UNIX based), minicomputers, network switches and hubs, Point of Sale, retail/bank back office and ATM's. Rack Mount versions are the choice for rack optimized servers, server appliances, blade servers, other blade devices and rack-mounted network switches and hubs.
With included PowerChute management software for servers and workstations, IT administrators can provide safe system shutdown and advanced UPS management (all major operating systems are supported). Connectivity is through serial or USB port (USB not standard on all models). Additional manageability is available through the SmartSlot, an internal accessory slot that allows you to install optional accessories to enhance the performance of your UPS. Network connection with Web browser management and/or environmental monitoring, serial port expansion, and out-of-band management options are available. With pure sine-wave output ensuring compatibility with all connected devices, Intelligent Battery Management ensuring a highly available UPS and an advanced 16 segment bar graph display ensuring information and management, the Smart-UPS is a UPS you can count on.
-
Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements. -
USB connectivity
USB compatibility and connectivity ensures quick and easy installation of the free PowerChute Personal Edition Software.
Specifications
Summary
- Product Description

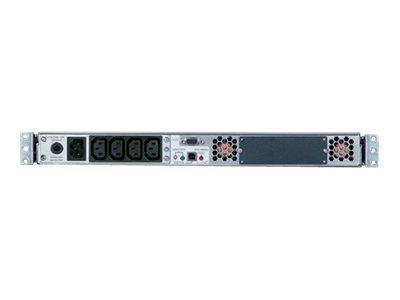

- APC Smart-UPS RM 1000VA USB & Serial - UPS - 640 Watt - 1000 VA
- Device Type
- UPS - rack-mountable
- Rack Size
- 1U
- Weight
- 22 kg
- Input Voltage
- AC 230 V
- Output Voltage
- AC 220/230/240 V
- Power Capacity
- 640 Watt / 1000 VA
- Input Connectors
- 1 x power IEC 60320 C14
- Output connectors
- 4 x power IEC 60320 C13
- Battery
- Lead Acid
- Run Time (Up To)
- 5.4 min at full load
- Colour
- Black
- Dimensions (WxDxH)
- 43 cm x 66 cm x 4 cm
- Manufacturer Warranty
- 2-year warranty
- Designed For
- P/N: AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP, AR3140G, AR3340G, AR3357X674, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4024IX431, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4038IX432, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, NBWL0356A
Detailed Specification
General
- Device Type
- UPS - rack-mountable
- Height (Rack Units)
- 1U
- Colour
- Black
Power Device
- UPS Technology
- Line interactive
- Supported Battery Technology
- Lead Acid
- Input Voltage
- AC 230 V
- Input Voltage Range
- AC 160 - 286 V
- Input Voltage Range (Adjustable)
- AC 151 - 302 V
- Frequency Required
- 50/60 Hz
- Input Connectors
- 1 x power IEC 60320 C14
- Power Output Connectors Details
- 4 x power IEC 60320 C13
- Output Voltage
- AC 220/230/240 V
- Power Capacity
- 640 Watt / 1000 VA
- Output Waveform
- Sinewave
- Surge Suppression
- Yes
- Surge Energy Rating
- 480 Joules
Battery
- Technology
- Lead Acid
- Run Time (Up To)
- 5.4 min at full load
Expansion / Connectivity
- Interfaces
- 1 x management (RS-232) - 9 pin D-Sub (DB-9) , 1 x management (USB) - 4 pin USB Type B
- Expansion Slots
- 1 (total) / 1 (free) x SmartSlot
Miscellaneous
- Cables Included
- Serial cable - external , USB cable - external
- Rack Mounting Kit
- Included
- Features
- LED display, audible alarm
- Compliant Standards
- C-Tick, GOST, PCBC, UL 1449, VDE
Software / System Requirements
- Software Included
- APC PowerChute Business Edition
Manufacturer Warranty
- Service & Support
- Limited warranty - parts and labour - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Min Storage Temperature
- -15 °C
- Max Storage Temperature
- 45 °C
- Humidity Range Operating
- 0 - 95%
- Humidity Range Storage
- 0 - 95%
Dimensions & Weight
- Width
- 43 cm
- Depth
- 66 cm
- Height
- 4 cm
- Weight
- 22 kg
Compatibility Information
- Designed For
- P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3003, AR3003SP, AR3006, AR3006SP, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3103, AR3103SP, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3106, AR3106SP, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3357X674, AR3810, AR3812, AR3814, AR4018, AR4018A, AR4018I, AR4018IA, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X431, AR4018X432, AR4024, AR4024A, AR4024I, AR4024IA, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X429, AR4038X431, AR4038X432, AR7007, AR7050, AR7057, AR8135BLK, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, NBWL0356A
