Name: APC Smart-UPS C 1000VA 2U LCD - UPS (rack-mountable)
Price: 583.19 GBP
Availability: InStock
Rating: 0.0 (0 reviews)

Description

Marketing description is not available.

SmartConnect
Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
Software package
SmartConnect software for remote power monitoring feature availability varies by terms of use

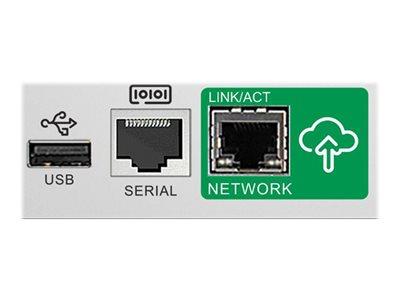

Communication port support
SmartConnect Ethernet port for cloud monitoring feature availability varies by terms of use
High online efficiency
Reduces utility costs, generates less heat.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
LCD Status Display
Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.
Cold-start capable
Provides temporary battery power when the utility power is out.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.

Specifications

Summary

Product Description: APC Smart-UPS C - UPS - 600 Watt - 1000 VA - with APC SmartConnect

Device Type: UPS - rack-mountable

Rack Size: 2U

Weight: 20.52 kg

Input Voltage: AC 230 V

Output Voltage: AC 230 V ± 5%

Power Capacity: 600 Watt / 1000 VA

Input Connectors: 1 x power IEC 60320 C14

Battery: Lead Acid

Batteries Qty: 1

Networking: USB, serial

Colour: Black

Dimensions (WxDxH): 43.2 cm x 40.6 cm x 8.9 cm

Manufacturer Warranty: 2-year warranty

Bundled with: APC SmartConnect

Designed For: P/N: AR2487G, AR3100W, AR3105SP, AR3105W, AR3140G, AR3140W, AR3150W, AR3155SP, AR3155W, AR3300W, AR3305W, AR3340G, AR3355SP, AR3355W, AR4018IX429, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4024IX431, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4038IX432, NBWL0356A

Detailed Specification

General

Device Type: UPS - rack-mountable

Height (Rack Units): 2U

Colour: Black

Bundled with: APC SmartConnect

Power Device

UPS Technology: Line interactive

Input Voltage: AC 230 V

Input Voltage Range: AC 180 - 287 V

Input Voltage Range (Adjustable): AC 170 - 300 V

Frequency Provided: 57 - 63 Hz

Frequency Required: 50/60 Hz

Input Connectors: 1 x power IEC 60320 C14

Output Voltage: AC 230 V ± 5% - 57 - 63 Hz

Power Capacity: 600 Watt / 1000 VA

Output Waveform: Sinewave

Surge Suppression: Yes

Surge Energy Rating: 459 Joules

Circuit Protection: Circuit breaker

Battery

Quantity: 1

Technology: Lead Acid

Run Time (Up To): 16 min at half load , 6 min at full load

Recharge Time: 3 hours

Networking

Remote Management Interface: USB, serial

Miscellaneous

Cables Included: Power cable , USB cable - external

Rack Mounting Kit: Included

Features: Audible alarm, LCD display, Automatic Voltage Regulation (AVR), cold-start function, automatic shut down reset, automatic self-test, hot-swappable batteries

Compliant Standards: C-Tick, GOST, UL 1449, VDE, RoHS, REACH

Software / System Requirements

Software Included: APC PowerChute Business Edition

Manufacturer Warranty

Service & Support: Limited warranty - parts and labour - 2 years

Environmental Parameters

Min Operating Temperature: 0 °C

Max Operating Temperature: 40 °C

Humidity Range Operating: 0 - 95%

Sound Emission: 42 dBA

Dimensions & Weight

Width: 43.2 cm

Depth: 40.6 cm

Height: 8.9 cm

Weight: 20.52 kg

Dimensions & Weight (Shipping)

Shipping Width: 59.4 cm

Shipping Depth: 58.4 cm

Shipping Height: 24.1 cm

Shipping Weight: 22.33 kg

Compatibility Information

Designed For: P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, ACF600, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR100, AR100HD, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR4018, AR4018A, AR4018I, AR4018IA, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X431, AR4018X432, AR4024, AR4024A, AR4024I, AR4024IA, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X429, AR4038X432, AR7007, AR7050, AR7057, NBWL0356A
