Description
APC Smart-UPS protects your data by supplying reliable, network-grade power in either traditional Tower or Rack-optimized form factors for space constrained business critical applications. Award winning APC Smart-UPS is the perfect UPS for protecting business critical fileservers (Intel or UNIX based), minicomputers, network switches and hubs, Point of Sale, retail/bank back office and ATMs. Rack Mount versions are the choice for rack optimized servers, server appliances, blade servers, other blade devices and rack-mounted network switches and hubs.
-
High online efficiency
Reduces utility costs, generates less heat. -
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. -
Energy meter
Provides actual kilowatt hours of usage for energy conscious users. -
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. -
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys. -
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics. -
Cold-start capable
Provides temporary battery power when the utility power is out. -
Intelligent Card Slot
Customize UPS capabilities with management cards. -
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Specifications
Summary
- Product Description

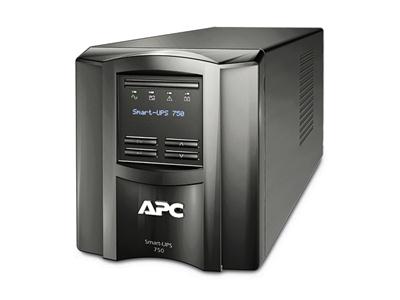

- APC Smart-UPS 750 LCD - UPS - 500 Watt - 750 VA
- Device Type
- UPS - external
- Weight
- 13.18 kg
- Input Voltage
- AC 230 V
- Output Voltage
- AC 230 V
- Power Capacity
- 500 Watt / 750 VA
- Input Connectors
- Power IEC 60320 C14
- Output connectors
- 6 x power IEC 60320 C13 , 2 x IEC jumper
- Battery
- Lead Acid
- Run Time (Up To)
- 5 min at full load
- Networking
- RS-232, USB
- Colour
- Black
- Dimensions (WxDxH)
- 13.8 cm x 36.3 cm x 16.1 cm
- Manufacturer Warranty
- 3-year warranty
- Designed For
- P/N: AR4000MVX429, AR4000MVX432, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X429
Detailed Specification
General
- Device Type
- UPS - external
- Colour
- Black
Power Device
- UPS Technology
- Line interactive
- Input Voltage
- AC 230 V
- Input Voltage Range
- AC 160 - 280 V
- Input Voltage Range (Adjustable)
- AC 151 - 302 V
- Frequency Provided
- 47 - 53 / 57 - 63 Hz
- Frequency Required
- 50/60 Hz
- Input Connectors
- Power IEC 60320 C14
- Power Output Connectors Details
- 6 x power IEC 60320 C13 , 2 x IEC jumper
- Output Voltage
- AC 230 V 47 - 53 / 57 - 63 Hz
- Power Capacity
- 500 Watt / 750 VA
- Output Waveform
- Sinewave
- Surge Suppression
- Yes
- Surge Energy Rating
- 540 Joules
Battery
- Technology
- Lead Acid
- Run Time (Up To)
- 5 min at full load
Networking
- Remote Management Interface
- RS-232, USB
Expansion / Connectivity
- Interfaces
- 1 x management (RS-232) - 9 pin D-Sub (DB-9) , 1 x USB
- Expansion Slots
- 1 SmartSlot
Miscellaneous
- Features
- Audible alarm, LCD display
- Compliant Standards
- C-Tick, UL 1449, VDE, EN 50091-2, RoHS, EN 50091-1, REACH
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years , Limited warranty - batteries - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 0 - 95%
- Sound Emission
- 40 dBA
Dimensions & Weight
- Width
- 13.8 cm
- Depth
- 36.3 cm
- Height
- 16.1 cm
- Weight
- 13.18 kg
Compatibility Information
- Designed For
- P/N: AR4000MV, AR4000MVX429, AR4000MVX432, AR4018, AR4018A, AR4018I, AR4018IA, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X431, AR4018X432, AR4024, AR4024A, AR4024I, AR4024IA, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X429, AR4038X431, AR4038X432
