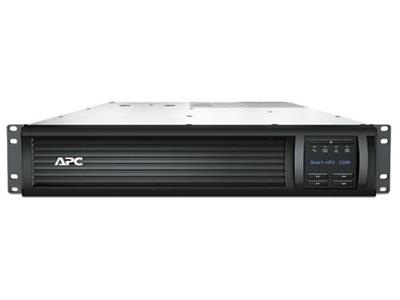

APC Smart-UPS 2200VA LCD RM 2U 230V

Review this product
Quicklinx: 7M78WS00 Mfr#: SMT2200RMI2U
Discontinued

Description

APC award-winning Smart-UPS is the most popular UPS in the world for servers, storage and networks.

Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption.

Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Smart-UPS models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards.

  • Pure sine wave output on battery

    Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics
  • Cold-start capable

    Provides temporary battery power when the utility power is out
  • Temperature-compensated battery charging

    Prolongs battery life by regulating the charge voltage according to battery temperature
  • Green mode

    Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection
  • High online efficiency

    Reduces utility costs, generates less heat
  • Intuitive LCD interface

    Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys
  • Predictive replace battery date

    Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning
  • Single switched outlet group

    Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding
  • SmartSlot

    Customize UPS capabilities with management cards
  • Energy meter

    Provides actual kilowatt hours of usage for energy conscious users
  • Sequenced network shutdown and reboot

    Customize network shutdown and reboot sequence of connected servers and UPSs
  • StruxureWare Data Center Expert compatible

    Enables centralized management via StruxureWare Data Center Expert

Specifications

Summary

Product Description
APC Smart-UPS 2200 LCD - UPS - 1.98 kW - 2200 VA
Device Type
UPS - rack-mountable
Rack Size
2U
Weight
42.3 kg
Input Voltage
AC 220/230/240 V
Output Voltage
AC 220/230/240 V
Power Capacity
1.98 kW / 2200 VA
Input Connectors
3 x power IEC 60320 C20, power CEE 7/7, power BS 1363A
Output connectors
8 x power IEC 60320 C13 , 1 x power IEC 60320 C19
Battery
Lead Acid
Run Time (Up To)
5.4 min at full load
Networking
RS-232, USB
Dimensions (WxDxH)
48 cm x 68.3 cm x 8.6 cm
Manufacturer Warranty
3-year warranty


Detailed Specification

General

Device Type
UPS - rack-mountable
Height (Rack Units)
2U

Power Device

UPS Technology
Line interactive
Input Voltage
AC 220/230/240 V
Input Voltage Range
AC 160 - 286 V
Input Voltage Range (Adjustable)
AC 151 - 299 V
Frequency Provided
47 - 53 / 57-63 Hz
Frequency Required
50/60 Hz
Input Connectors
3 x power IEC 60320 C20, power CEE 7/7, power BS 1363A
Power Output Connectors Details
8 x power IEC 60320 C13 , 1 x power IEC 60320 C19
Output Voltage
AC 220/230/240 V 47 - 53 / 57-63 Hz
Power Capacity
1.98 kW / 2200 VA
Output Waveform
Sinewave
Surge Suppression
Yes
Surge Energy Rating
375 Joules

Battery

Technology
Lead Acid
Run Time (Up To)
5.4 min at full load , 16.1 min at half load
Recharge Time
3 hours

Networking

Remote Management Interface
RS-232, USB

Expansion / Connectivity

Interfaces
1 x USB , 1 x serial
Expansion Slots
1 SmartSlot

Miscellaneous

Cables Included
Serial cable , USB cable , Power cable - integrated - 2 m
Rack Mounting Kit
Included
Features
Audible alarm, LCD display, Automatic Voltage Regulation (AVR)
Compliant Standards
C-Tick, GOST, EN 60950, GS, VDE, IEC 62040-1-1, RoHS Exemption 7b, IEC 62040-2, IRAM, WEEE

Software / System Requirements

Software Included
Drivers & Utilities

Manufacturer Warranty

Service & Support
Limited warranty - 3 years , Limited warranty - batteries - 2 years

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 95%
Sound Emission
55 dBA

Dimensions & Weight

Width
48 cm
Depth
68.3 cm
Height
8.6 cm
Weight
42.3 kg

Dimensions & Weight (Shipping)

Shipping Width
60 cm
Shipping Depth
98 cm
Shipping Height
25.4 cm
Shipping Weight
49.7 kg
