Cold-start capable
Provides temporary battery power when the utility power is out. -
Energy meter
Provides actual kilowatt hours of usage for energy conscious users. -
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. -
High online efficiency
Reduces utility costs, generates less heat. -
Intelligent Card Slot
Customize UPS capabilities with management cards. -
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys. -
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. -
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics. -
Sequenced network shutdown and reboot
Customize network shutdown and reboot sequence of connected servers and UPSs. -
Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. -
SmartConnect
Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services. -
StruxureWare Data Center Expert compatible
Enables centralized management via StruxureWare Data Center Expert. -
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Specifications
Summary
- Product Description

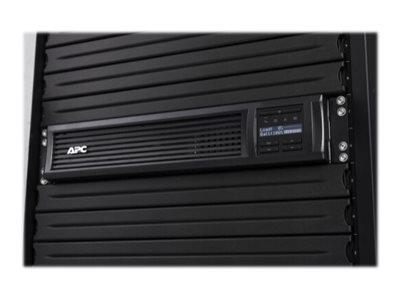

- APC Smart-UPS SMT 2200VA LCD RM with SmartConnect - UPS - 1980 Watt - 2200 VA
- Device Type
- UPS - rack-mountable
- Rack Size
- 2U
- Weight
- 42.31 kg
- Input Voltage
- AC 230 V
- Output Voltage
- AC 220/230/240 V
- Power Capacity
- 1980 Watt / 2200 VA
- Input Connectors
- 1 x power IEC 60320 C20
- Output connectors
- 8 x power IEC 60320 C13 , 1 x power IEC 60320 C19
- Battery
- Lead Acid
- Batteries Qty
- 1
- Run Time (Up To)
- 5 min at full load
- Networking
- RS-232, USB
- Dimensions (WxDxH)
- 48 cm x 68.3 cm x 8.6 cm
- Designed For
- P/N: AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP, AR3140G, AR3340G, AR3357X674, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4024IX431, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4038IX432, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, NBWL0356A
Detailed Specification
General
- Device Type
- UPS - rack-mountable
- Height (Rack Units)
- 2U
Power Device
- UPS Technology
- On-line
- Input Voltage
- AC 230 V
- Input Voltage Range
- AC 160 - 286 V
- Input Voltage Range (Adjustable)
- AC 150 - 300 V
- Frequency Provided
- 50/60 Hz
- Frequency Required
- 50/60 Hz
- Input Connectors
- 1 x power IEC 60320 C20
- Power Output Connectors Details
- 8 x power IEC 60320 C13 , 1 x power IEC 60320 C19
- Output Voltage
- AC 220/230/240 V 50/60 Hz
- Power Capacity
- 1980 Watt / 2200 VA
- Output Waveform
- Sinewave
- Surge Suppression
- Yes
Battery
- Quantity
- 1
- Technology
- Lead Acid
- Features
- Maintenance free, sealed, leak-proof
Networking
- Remote Management Interface
- RS-232, USB
Expansion / Connectivity
- Interfaces
- 1 x management (RS-232) - RJ-45 , 1 x management (USB)
- Expansion Slots
- 1 (total) / 1 (free) x SmartSlot
Miscellaneous
- Features
- Audible alarm, LCD display
- Compliant Standards
- VDE, EN 62040-2, EAC, RCM, EN 62040-1
Software / System Requirements
- Software Included
- APC PowerChute Business Edition
Dimensions & Weight
- Width
- 48 cm
- Depth
- 68.3 cm
- Height
- 8.6 cm
- Weight
- 42.31 kg
Compatibility Information
- Designed For
- P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF002, ACF101BLK, ACF102BLK, ACF400, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3003, AR3003SP, AR3006, AR3006SP, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3103, AR3103SP, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3106, AR3106SP, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3357X674, AR4018, AR4018A, AR4018I, AR4018IA, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X431, AR4018X432, AR4024, AR4024A, AR4024I, AR4024IA, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X432, AR7007, AR7050, AR7057, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, NBWL0356A
