APC Rack PDU 2G Switched 0U 32A 230V (21) C13 & (3) C19

Review this product
Quicklinx: 7N10WS00 Mfr#: AP8953
Type: PDU
Power Rating: [N/A]
Stock Status: In Stock
Hurry, only 3 left in stock!
£782.67 ex VAT
£939.20 inc VAT
Qty
Standard delivery Delivered within 3 working days

Description

APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power recycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and low profile circuit breakers. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces.

  • Network Management

    Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
  • Remote individual outlet control

    Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment).
  • Power delays

    Allows users to configure the sequence in which power is turned on or off for each outlet. This helps avoid in-rushes at start-up, which can cause overloaded circuits and dropped loads. Sequencing also allows users to predetermine which piece of equipment is turned on first so other equipment dependant on that unit will function properly.
  • Load indicator LED

    Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
  • Integrates with InfraStruXure Central

    An IT-ready, scalable monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network.
  • Single input power source

    Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Specifications

Summary

Product Description
APC Switched Rack PDU 2G Zero U - power distribution strip
Device Type
Power distribution strip - rack-mountable
Weight
8.6 kg
Input Voltage
AC 200/208/230 V
Input Connectors
1 x power IEC 60309 32A
Output connectors
3 x power IEC 60320 C19 , 21 x power IEC 60320 C13
Networking
RS-232
Remote Management Protocol
SNMP, Telnet, HTTP
Colour
Black
Dimensions (WxDxH)
5.6 cm x 4.6 cm x 183 cm
Manufacturer Warranty
2 years warranty
Designed For
P/N: AR3100, AR3150, SMX3000RMHV2UNC


Detail

General

Device Type
Power distribution strip - rack-mountable
Colour
Black

Power Device

Input Voltage
AC 200/208/230 V
Input Voltage Range
AC 220 - 240 V
Frequency Required
50/60 Hz
Input Connectors

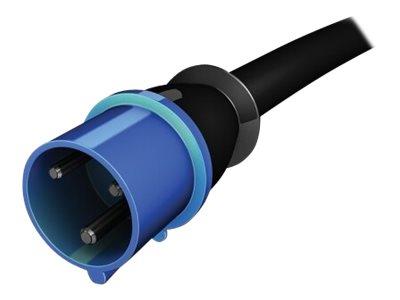

1 x power IEC 60309 32A
Power Output Connectors Details
3 x power IEC 60320 C19 , 21 x power IEC 60320 C13
Max Electric Current
32 A

Networking

Remote Management Interface
RS-232
Remote Management Protocol
SNMP, Telnet, HTTP

Expansion / Connectivity

Interfaces
1 x management

Miscellaneous

Cables Included
Power cable - external - 3.05 m , Serial cable - external
Rack Mounting Kit
Included
Features
LCD display, overload protection
Compliant Standards
EN 61000-3-2, EN55022, VDE, EN 61000-3-3, EN55024, RoHS, REACH

Manufacturer Warranty

Service & Support
Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature
-5 °C
Max Operating Temperature
45 °C
Humidity Range Operating
5 - 95%

Dimensions & Weight

Width
5.6 cm
Depth
4.6 cm
Height
183 cm
Weight
8.6 kg

Dimensions & Weight (Shipping)

Shipping Width
16.5 cm
Shipping Depth
12.4 cm
Shipping Height
204 cm
Shipping Weight
10 kg

Compatibility Information

Designed For
P/N: AR3100, AR3150, SMX3000RMHV2UNC
