Description
The APC Rack Automatic Transfer Switch provides reliable, redundant power to single-corded equipment loads, such as servers. It has two input power cords supplying power to the connected loads. If the primary source becomes unavailable or out of the selected range, the Rack ATS will seamlessly source power from the secondary source without interrupting critical loads.
Specifications
Summary
- Product Description

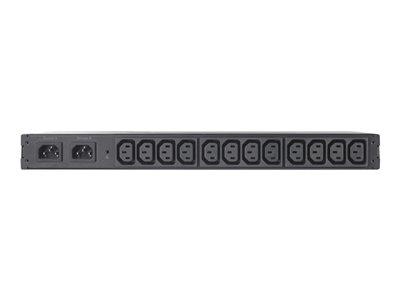

- APC Rack Automatic Transfer Switch AP4421 - redundant switch
- Device Type
- Redundant switch - rack-mountable
- Rack Size
- 1U
- Weight
- 3.93 kg
- Input Voltage
- AC 230 V
- Output Voltage
- AC 230 V
- Input Connectors
- 2 x power IEC 60320 C14
- Output connectors
- 12 x power IEC 60320 C13 10 A
- Networking
- Ethernet 10/100, RS-232, USB
- Remote Management Protocol
- SNMP, Telnet, HTTP, SSH
- Included Accessories
- Mounting kit, rack mounting brackets
- Colour
- Black
- Dimensions (WxDxH)
- 43.2 cm x 23.6 cm x 4.4 cm
- Manufacturer Warranty
- 2-year warranty
- Designed For
- P/N: AR106SH4, AR106SH6, AR109SH4, AR109SH6, AR112SH4, AR112SH6, AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP, SCL400RMJ1U, SCL500RM1UNC, SCL500RMI1UC, SCL500RMI1UNC, SMTL1000RMI2UC, SMTL750RMI2UC, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX750C, SMX750CNC, SRT5KRMXLW-TW
Detailed Specification
General
- Device Type
- Redundant switch - rack-mountable
- Height (Rack Units)
- 1U
- Colour
- Black
Power Device
- Input Voltage
- AC 230 V
- Input Voltage Margin
- ± 10%
- Frequency Required
- 50/60 Hz
- Input Connectors
- 2 x power IEC 60320 C14
- Power Output Connectors Details
- 12 x power IEC 60320 C13 10 A
- Output Voltage
- AC 230 V
- Max Electric Current
- 10 A
Networking
- Remote Management Interface
- Ethernet 10/100, RS-232, USB
- Remote Management Protocol
- SNMP, Telnet, HTTP, SSH
Expansion / Connectivity
- Interfaces
- 1 x management (RS-232) , 1 x management (Ethernet) - RJ-45 , 1 x USB - 4 pin USB Type A
Miscellaneous
- Included Accessories
- Mounting kit, rack mounting brackets
- Cables Included
- Serial cable - external
- Rack Mounting Kit
- Included
- Features
- Current meter, LED indicators, short-circuit protection
- Compliant Standards
- RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, EMC 2004/108/EC, LVD 2006/95/EC, EMC 2014/30/EU, LVD 2014/35/EU
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- -5 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 0 - 95% (non-condensing)
Dimensions & Weight
- Width
- 43.2 cm
- Depth
- 23.6 cm
- Height
- 4.4 cm
- Weight
- 3.93 kg
Dimensions & Weight (Shipping)
- Shipping Width
- 60 cm
- Shipping Depth
- 34.9 cm
- Shipping Height
- 11.4 cm
- Shipping Weight
- 5.7 kg
Compatibility Information
- Designed For
- P/N: AP7950B, AR106, AR106SH4, AR106SH6, AR109SH4, AR109SH6, AR112, AR112SH4, AR112SH6, AR2487G, AR3003, AR3003SP, AR3006, AR3006SP, AR3100W, AR3103, AR3103SP, AR3105SP, AR3105W, AR3106, AR3106SP, AR3140G, AR3140W, AR3150W, AR3155SP, AR3155W, AR3300W, AR3305SP, AR3305W, AR3340G, AR3355SP, AR3355W, AR3357X674, AR4018IX429, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4024IX431, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4038IX432, NBPD0160A, NBWL0355A, NBWL0356A, SCL400RMJ1U, SCL500RM1UC, SCL500RM1UNC, SCL500RMI1UC, SCL500RMI1UNC, SMC1000-BR, SMC1000I-2UC, SMC1000I-BR, SMC1000IC, SMC15002U-BR, SMC1500-BR, SMC1500I2U-BR, SMC1500I-2UC, SMC1500I-BR, SMC1500IC, SMT1000I-6W, SMT1000I-AR, SMT1000IC, SMT1000R2I-AR, SMT1000RMI2UC, SMT1500I-AR, SMT1500IC, SMT1500R2I-6W, SMT1500R2I-AR, SMT1500RMI2UC, SMT1500RMI2UNC, SMT2200I-AR, SMT2200IC, SMT2200R2I-AR, SMT2200RM2UC, SMT2200RMI2UC, SMT2200RMI2UNC, SMT3000I2U-BR, SMT3000I-AR, SMT3000IC, SMT3000R2I-6W, SMT3000R2I-AR, SMT3000RM2UC, SMT3000RMI2UC, SMT3000RMI2UNC, SMT750RMI2UC, SMT750RMI2UNC, SMTL1000RM2UC, SMTL1000RMI2UC, SMTL750RM2UC, SMTL750RMI2UC, SMX1000C, SMX1000US, SMX1500RM2UC, SMX1500RM2UCNC, SMX1500RMNCUS, SMX1500RMUS, SMX2000LVNCUS, SMX2000LVUS, SMX2200HVNC, SMX2200R2HVNC, SMX2200RMLVUS, SMX3000HV-BR, SMX3000HVTUS, SMX3000LV2U-BR, SMX3000LVNCUS, SMX3000LVUS, SMX3000RMLVUS, SMX3KRMLVNCUS, SMX750C, SMX750CNC, SMX750INC, SMX750US, SPD10KCBL, SPD20KCBL, SRC2000XLI-CC, SRC3KUXI, SRT1000RMXLA, SRT1000RMXLA-NC, SRT1000RMXLI, SRT1000RMXLI-NC, SRT10RMXLIX806, SRT1500RMXLA, SRT1500RMXLA-NC, SRT1500RMXLI, SRT1500XLI, SRT2200RMXLI, SRT2200RMXLI-NC, SRT2200XLI, SRT2200XLI-KR, SRT3000RMXLI, SRT3000RMXLI-NC, SRT3000RMXLW-IEC, SRT3000XLI, SRT3000XLW-IEC, SRT5KRMXLI-6W, SRT5KRMXLIM, SRT5KRMXLTUS, SRT5KRMXLW-TW, SRT6KRMXLI-6W, SRT6KRMXLIM, SRT8KXLT-IEC, SUA1000ICH-45, SUA1500I-IN, SUA2200ICH-45, SUA3000I-IN, SURT1000RMXLI-NC, SURT1000XLI-NC, SYAF16KRMICH
