Description
Metered rack Power Distribution Units (PDUs) provide real-time remote monitoring of connected loads. User-defined alarms warn of potential circuit overloads before critical IT failures occur.
-
Efficient power distribution

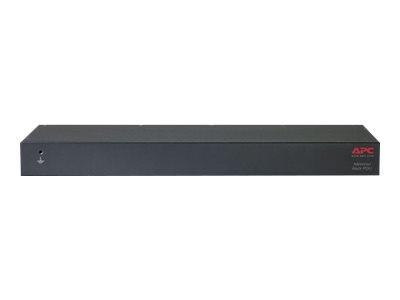

The APC Metered Rack PDU AP7820B is designed to distribute power efficiently within your rack setup, featuring 8 power IEC 60320 C13 output connectors and a power capacity of 2300 VA to support multiple devices. -
Advanced environmental adaptability
With an operating humidity range of 5 - 95% and temperature tolerance from -5°C to 45°C, this power distribution unit ensures reliable performance in a wide range of environmental conditions. -
Comprehensive remote management
Equipped with Ethernet 10/100 remote management interface and support for HTTP, SNMP, and Telnet protocols, the AP7820B allows for easy monitoring and management of your power distribution remotely. -
Robust compliance standards
Meeting a broad spectrum of compliance standards including C-Tick, CSA, FCC Class A certified, and more, the APC Metered Rack PDU ensures safety and reliability for your critical infrastructure. -
Compact and rack-mountable design
With a 1 rack unit height and a form factor designed for rack-mountability, this power distribution unit integrates seamlessly into your existing rack setup, saving space and maintaining organization.
Specifications
Summary
- Product Description
- APC Metered Rack PDU AP7820B - power distribution unit - 2300 VA
- Device Type
- Power distribution unit - rack-mountable
- Cord Length
- 1.98 m
- Rack Size
- 1U
- Weight
- 1.73 kg
- Input Voltage
- AC 200/208/230 V
- Output Voltage
- AC 208/230 V
- Power Capacity
- 2300 VA
- Input Connectors
- 1 x power IEC 60320 C14
- Output connectors
- 8 x power IEC 60320 C13
- Networking
- Ethernet 10/100
- Remote Management Protocol
- SNMP, Telnet, HTTP
- Dimensions (WxDxH)
- 44.4 cm x 10.2 cm x 4.4 cm
- Manufacturer Warranty
- 2-year warranty
- Designed For
- P/N: AR106SH4, AR106SH6, AR106V, AR106VI, AR109SH4, AR109SH6, AR112SH4, AR112SH6, AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP, SCL400RMJ1U, SCL500RMI1UC, SCL500RMI1UNC, SMTL1000RMI2UC, SMTL750RMI2UC, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX750C, SMX750CNC, SRT5KRMXLW-TW
Detailed Specification
General
- Device Type
- Power distribution unit - rack-mountable
- Height (Rack Units)
- 1U
- Cord Length
- 1.98 m
Power Device
- Input Voltage
- AC 200/208/230 V
- Frequency Required
- 50/60 Hz
- Input Connectors
- 1 x power IEC 60320 C14
- Power Output Connectors Details
- 8 x power IEC 60320 C13
- Output Voltage
- AC 208/230 V
- Max Electric Current
- 12 A
- Power Capacity
- 2300 VA
Networking
- Remote Management Interface
- Ethernet 10/100
- Remote Management Protocol
- SNMP, Telnet, HTTP
Expansion / Connectivity
- Interfaces
- 1 x management (Ethernet) - RJ-45 , 1 x serial - RJ-11
Miscellaneous
- Cables Included
- 1 power cable 1.98 m
- Features
- Current meter, LED display
- Compliant Standards
- FCC Class A certified, CSA, VCCI, C-Tick, GOST, cUL, VDE, UL 60950, UL, RoHS, REACH
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- -5 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 5 - 95%
Dimensions & Weight
- Width
- 44.4 cm
- Depth
- 10.2 cm
- Height
- 4.4 cm
- Weight
- 1.73 kg
Dimensions & Weight (Shipping)
- Shipping Width
- 47 cm
- Shipping Depth
- 33.7 cm
- Shipping Height
- 6.4 cm
- Shipping Weight
- 2.91 kg
Compatibility Information
- Designed For
- P/N: AP7950B, AR106, AR106SH4, AR106SH6, AR106V, AR106VI, AR109SH4, AR109SH6, AR112, AR112SH4, AR112SH6, AR2487G, AR3003, AR3003SP, AR3006, AR3006SP, AR3100W, AR3103, AR3103SP, AR3105SP, AR3105W, AR3106, AR3106SP, AR3140G, AR3140W, AR3155W, AR3305W, AR3340G, AR3355SP, AR3355W, AR3357X674, AR4018IX429, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4024IX431, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4038IX432, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, NBPD0160A, NBWL0355A, NBWL0356A, SCL400RMJ1U, SCL500RM1UC, SCL500RM1UNC, SCL500RMI1UC, SCL500RMI1UNC, SMC1000-BR, SMC1000I-2UC, SMC1000I-BR, SMC1000IC, SMC15002U-BR, SMC1500-BR, SMC1500I2U-BR, SMC1500I-2UC, SMC1500I-BR, SMC1500IC, SMT1000I-6W, SMT1000I-AR, SMT1000IC, SMT1000R2I-AR, SMT1000RMI2UC, SMT1500I-AR, SMT1500IC, SMT1500R2I-6W, SMT1500R2I-AR, SMT1500RMI2UC, SMT1500RMI2UNC, SMT2200I-AR, SMT2200IC, SMT2200R2I-AR, SMT2200RM2UC, SMT2200RMI2UC, SMT2200RMI2UNC, SMT3000I2U-BR, SMT3000I-AR, SMT3000IC, SMT3000R2I-6W, SMT3000R2I-AR, SMT3000RM2UC, SMT3000RMI2UC, SMT3000RMI2UNC, SMT750RMI2UC, SMT750RMI2UNC, SMTL1000RM2UC, SMTL1000RMI2UC, SMTL750RM2UC, SMTL750RMI2UC, SMX1000C, SMX1000US, SMX1500RM2UC, SMX1500RM2UCNC, SMX1500RMNCUS, SMX1500RMUS, SMX2000LVNCUS, SMX2000LVUS, SMX2200HVNC, SMX2200R2HVNC, SMX2200RMLVUS, SMX3000HV-BR, SMX3000HVTUS, SMX3000LV2U-BR, SMX3000LVNCUS, SMX3000LVUS, SMX3000RMLVUS, SMX3KRMLVNCUS, SMX750C, SMX750CNC, SMX750INC, SMX750US, SRC2000XLI-CC, SRC3KUXI, SRT1000RMXLA, SRT1000RMXLA-NC, SRT1000RMXLI, SRT1000RMXLI-NC, SRT10RMXLIX806, SRT1500RMXLA, SRT1500RMXLA-NC, SRT1500RMXLI, SRT1500XLI, SRT2200RMXLI, SRT2200RMXLI-NC, SRT2200XLI, SRT2200XLI-KR, SRT3000RMXLI, SRT3000RMXLI-NC, SRT3000RMXLW-IEC, SRT3000XLI, SRT3000XLW-IEC, SRT5KRMXLI-6W, SRT5KRMXLIM, SRT5KRMXLTUS, SRT5KRMXLW-TW, SRT6KRMXLI-6W, SRT6KRMXLIM, SRT8KXLT-IEC, SUA1000ICH-45, SUA1500I-IN, SUA2200ICH-45, SUA3000I-IN, SURT1000RMXLI-NC, SURT1000XLI-NC, SYAF16KRMICH
