Description

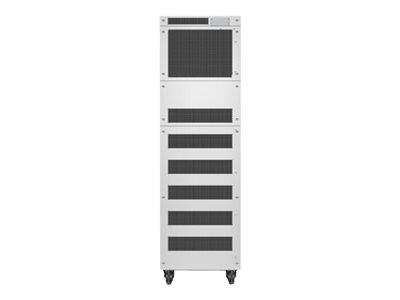

Easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 60 kVA 3 phase UPS with advanced product features, robust electrical specifications and compact design making your business continuity easy. Ideal for small and medium data centers and other business critical applications, this UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. For battery runtime details, see the runtime charts published under the Documents tab. Includes 5x8 start-up service.
-
Efficient power management
The Schneider Electric Easy UPS 3M offers an eco-mode for energy savings and supports VRLA batteries, ensuring efficient power management and sustainability. -
Advanced connectivity
Featuring a touchscreen LCD display for easy monitoring and control, along with a comprehensive suite of compliant standards including IEC and RoHS, this UPS ensures your equipment stays protected in a variety of environments. -
Reliable performance
With a power capacity of 60 kW and the ability to operate in temperatures ranging from 0°C to 40°C, the E3MUPS60KHBS provides reliable performance even in demanding conditions. -
Enhanced safety features
Built-in static bypass, audible and visible alarms keep you informed of any issues, ensuring your setup remains safe under all circumstances. -
Flexible installation options
The external form factor and hardwire 5-wire input connector type allow for flexible installation options, making it suitable for a wide range of applications.
Specifications
Summary
- Product Description
- Schneider Electric Easy UPS 3M E3MUPS60KHBS - UPS - 60 kW - 60000 VA
- Device Type
- UPS - external
- Bundled Services
- Start-Up Service 5X8
- Weight
- 311 kg
- Input Wiring
- 3-phase
- Input Voltage
- AC 380/400/415 V
- Output Voltage
- AC 380/400/415 V ± 3%
- Power Capacity
- 60 kW / 60000 VA
- Input Connectors
- Hardwire 5-wire (3PH + N + G)
- Battery
- No battery
- Included Accessories
- Dust filter
- Colour
- White
- Dimensions (WxDxH)
- 60 cm x 100 cm x 197 cm
- Manufacturer Warranty
- 1-year warranty
Detailed Specification
General
- Device Type
- UPS - external
- Bundled Services
- Start-Up Service 5X8
- Colour
- White
Power Device
- UPS Technology
- On-line
- Input Voltage
- AC 380/400/415 V
- Input Voltage Range
- AC 342 - 477 V
- Frequency Provided
- 50/60 Hz
- Input Wiring
- 3-phase
- Frequency Required
- 40 - 70 Hz
- Input Connectors
- Hardwire 5-wire (3PH + N + G)
- Output Voltage
- AC 380/400/415 V ± 3% - 50/60 Hz
- Power Capacity
- 60 kW / 60000 VA
- Output Waveform
- Sinewave
Battery
- Type
- No battery
Miscellaneous
- Included Accessories
- Dust filter
- Features
- Touch screen interface, audible alarm, built-in static bypass, touch screen LCD display, Eco-Mode, visible alarm, VRLA battery support
- Compliant Standards
- IEC 62040-3, IEC 62040-1-1, IEC 62040-2, RoHS, WEEE, REACH, IP20, EAC, RCM, ISTA 2B, IEC 62040-4
Manufacturer Warranty
- Service & Support
- Limited warranty - 1 year - on-site
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 0 - 95% (non-condensing)
- Sound Emission
- 65 dBA
Dimensions & Weight
- Width
- 60 cm
- Depth
- 100 cm
- Height
- 197 cm
- Weight
- 311 kg
Dimensions & Weight (Shipping)
- Shipping Width
- 75 cm
- Shipping Depth
- 112.5 cm
- Shipping Height
- 210.2 cm
- Shipping Weight
- 360 kg
