Description
The Back-UPS CS provides professional-grade power protection for office and home office systems. Battery powered & surge protected power outlets, built-in phone/fax/modem line (DSL compatible) protection, safe system shutdown software with sophisticated power management features and pro-active audio-visual status indicators ensure office systems and their valuable data are protected from dangerous power surges, spikes and blackouts. Serial or USB connectivity gives users more flexibility making installation quicker and easier. Easy access to a hot-swappable, user-replaceable battery also makes servicing the Back-UPS CS hassle-free. These features along with its classic styling make the Back-UPS CS a perfect choice for protecting your important office and home office systems.
-
Serial connectivity
Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks. -
Serial connectivity
Provides management of the UPS via a serial port. -
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Specifications
Summary
- Product Description
- APC Back-UPS CS 650 - UPS - 400 Watt - 650 VA
- Device Type
- UPS - external
- Weight
- 6 kg
- Load Rating
- Individual PC
- Input Voltage
- AC 230 V
- Output Voltage
- AC 230 V
- Power Capacity
- 400 Watt / 650 VA
- Input Connectors
- 1 x power IEC 60320 C14
- Output connectors
- 1 x power IEC 60320 C13 (surge) , 3 x power IEC 60320 C13 (UPS and surge)
- Battery
- Lead Acid
- Battery Form Factor
- Plug-in module
- Batteries Qty
- 1
- Run Time (Up To)
- 2.4 min at full load
- Networking
- RS-232, USB
- Colour
- Beige
- Dimensions (WxDxH)
- 9.1 cm x 28.4 cm x 16.5 cm
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- UPS - external
- Battery Enclosure Type
- Plug-in module
- Colour
- Beige
Power Device
- Load Rating
- Individual PC
- UPS Technology
- Off-line
- Supported Battery Technology
- Lead Acid
- Input Voltage
- AC 230 V
- Input Voltage Range
- AC 180 - 260 V
- Input Voltage Range (Adjustable)
- AC 160 - 282 V
- Frequency Required
- 50/60 Hz
- Input Connectors
- 1 x power IEC 60320 C14
- Power Output Connectors Details
- 1 x power IEC 60320 C13 (surge) , 3 x power IEC 60320 C13 (UPS and surge)
- Output Voltage
- AC 230 V
- Power Capacity
- 400 Watt / 650 VA
- Output Waveform
- Stepped approximation to a sinewave
- Surge Suppression
- Yes
- Surge Energy Rating
- 320 Joules
- Circuit Protection
- Circuit breaker
Battery
- Quantity
- 1
- Technology
- Lead Acid
- Run Time (Up To)
- 2.4 min at full load
- Recharge Time
- 8 hours
Networking
- Remote Management Interface
- RS-232, USB
Expansion / Connectivity
- Interfaces
- 1 x management (RS-232/USB) - RJ-45
Miscellaneous
- Cables Included
- USB cable - external , Power cable 2 m
- Equipment Protection Value
- 100000 Euros
- Features
- Audible alarm
- Compliant Standards
- C-Tick, GOST, NEMKO, A-Tick
Software / System Requirements
- Software Included
- APC PowerChute Personal Edition
Manufacturer Warranty
- Service & Support
- Limited warranty - replace or repair - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 5 - 95%
- Sound Emission
- 45 dBA
Dimensions & Weight
- Width
- 9.1 cm
- Depth
- 28.4 cm
- Height
- 16.5 cm
- Weight
- 6 kg
Dimensions & Weight (Shipping)
- Shipping Width
- 18.5 cm
- Shipping Depth
- 49.4 cm
- Shipping Height
- 41.5 cm
- Shipping Weight
- 7.3 kg
Bundle deals
 |
APC Replacement Battery Cartridge RBC17 | In Stock | £56.66 |
Customer reviews
Write a review for the APC Back-UPS CS 650VA here!
APC CS 650 UPS
Reviewed by Ian. Review Posted 17/10/2006

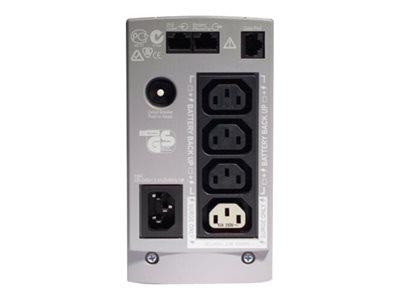

It came with PowerChute personal edition, a cable to connect the RJ45 data port on the rear to one of the PC's USB ports. It has 4 surge protected power sockets (3 are battery backed, 1 - clearly marked - is not so loses power during blackout). One female-male power cable is provided out of the box - if you plan to connect more than one device then you will require additional female-male cables. Note that maximum number of devices is upto 4 (3 battery backed) using a total of 400W. Powerchute software is simple to install and use and provides useful information (e.g. I'm using 140W of available 400W and would last about 16min without electicity). It allows various automatic shutdown options (e.g. shutdown immediately, shutdown when down to last 5 mins of battery life etc).
-
Overall
-
Ease of use
-
Value for money
Works well
Reviewed by Chris N. Review Posted 25/06/2007
Very high quality product. Software does give the shutdown (hibernate) options, they are just not so obvious. Just note that the non-battery-backed output is not switched on or off by the front panel switch.
-
Overall
-
Ease of use
-
Value for money
Be careful buying this
Reviewed by Mark. Review Posted 21/06/2006
Can't fault APC for the product but just to make you aware that it comes with no software to shut the PC down automatically and the phone/modem/adsl protection looks like a CAT5 network socket and there was no cable supplied to make use of it! Consequently I have had to buy a surge protector to protect the ADSL router!
-
Overall
-
Ease of use
-
Value for money
