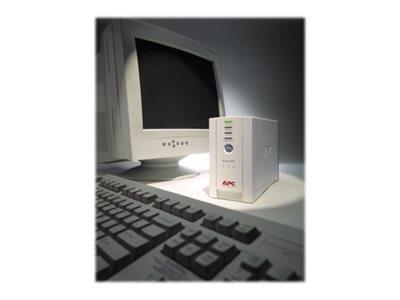

APC Back-UPS CS 500Ei

APC Back-UPS CS 500Ei

Customer rating: 5.0* (Write a review)
Quicklinx: XK0WS00 Mfr#: BK500EI
Type: UPS
Power Rating: 300Watt
21 In Stock
£113.80 ex VAT
£136.56 inc VAT
Qty
Standard delivery Delivered within 3 working days

Description

The Back-UPS CS provides professional-grade power protection for office and home office systems. Battery powered & surge protected power outlets, built-in phone/fax/modem line (DSL compatible) protection, safe system shutdown software with sophisticated power management features and pro-active audio-visual status indicators ensure office systems and their valuable data are protected from dangerous power surges, spikes and blackouts. Easy access to a hot-swappable, user-replaceable battery also makes servicing the Back-UPS CS hassle-free. These features along with its classic styling make the Back-UPS CS a perfect choice for protecting your important office and home office systems.

  • Serial connectivity

    Provides management of the UPS via a serial port
  • USB connectivity

    Provides management of the UPS via a USB port (not available on all models)

Specifications

Summary

Product Description
APC Back-UPS CS 500 - UPS - 300 Watt - 500 VA
Device Type
UPS - external
Weight
6 kg
Load Rating
Individual PC
Input Voltage
AC 230 V
Output Voltage
AC 230 V ± 8%
Power Capacity
300 Watt / 500 VA
Input Connectors
1 x power IEC 60320 C14
Output connectors
1 x power IEC 60320 C13 (surge) , 3 x power IEC 60320 C13 (UPS and surge)
Battery
Lead Acid
Battery Form Factor
Internal
Batteries Qty
1
Run Time (Up To)
2.4 min at full load
Networking
RS-232, USB
Colour
Beige
System Requirements
Apple MacOS 9, Apple MacOS 9.0.4 or later, Microsoft Windows 98/ME/2000/XP
Dimensions (WxDxH)
9.1 cm x 28.4 cm x 16.5 cm
Manufacturer Warranty
2-year warranty


Detailed Specification

General

Device Type
UPS - external
Battery Enclosure Type
Internal
Colour
Beige

Power Device

Load Rating
Individual PC
UPS Technology
Off-line
Input Voltage
AC 230 V
Input Voltage Range
AC 196 - 280 V
Input Voltage Range (Adjustable)
AC 160 - 300 V
Input Voltage Margin
± 5%
Frequency Required
50/60 Hz
Input Connectors
1 x power IEC 60320 C14
Power Output Connectors Details
1 x power IEC 60320 C13 (surge) , 3 x power IEC 60320 C13 (UPS and surge)
Output Voltage
AC 230 V ± 8%
Power Capacity
300 Watt / 500 VA
Dataline Surge Protection
Phone line - RJ-11
Output Waveform
Stepped approximation to a sinewave
Surge Suppression
Yes
Surge Energy Rating
300 Joules
Circuit Protection
Circuit breaker

Battery

Quantity
1
Technology
Lead Acid
Run Time (Up To)
2.4 min at full load
Recharge Time
8 hours

Networking

Remote Management Interface
RS-232, USB

Expansion / Connectivity

Interfaces
1 x management (RS-232/USB) - RJ-45

Miscellaneous

Cables Included
USB cable - external
Equipment Protection Value
100000 Euros
Features
LED display, audible alarm
Compliant Standards
C-Tick, GOST, UL 1449, VDE, EN 50091-2, EN 50091-1

Software / System Requirements

Software Included
APC PowerChute Personal Edition
OS Required
Apple MacOS 9, Apple MacOS 9.0.4 or later, Microsoft Windows 98/ME/2000/XP

Manufacturer Warranty

Service & Support
Limited warranty - replace or repair - 2 years

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Min Storage Temperature
-15 °C
Max Storage Temperature
45 °C
Humidity Range Operating
0 - 95%
Humidity Range Storage
0 - 95%
Sound Emission
40 dBA

Dimensions & Weight

Width
9.1 cm
Depth
28.4 cm
Height
16.5 cm
Weight
6 kg

Dimensions & Weight (Shipping)

Shipping Width
24.1 cm
Shipping Depth
36.8 cm
Shipping Height
17.8 cm
Shipping Weight
7.1 kg

Bundle deals

XK0 APC BackUPS 250/280/400 Replacement Battery Cartridge In Stock £57.19

Customer reviews

Write a review for the APC Back-UPS CS 500Ei here!

very happy
Reviewed by Sean. Review Posted 17/01/2008

I'm very pleased with this unit

It works on Linux with the NUT driver version 2.0.4 - no need for the supplied disk.

Powering my desktop and monitor it is reporting 25% load with a predicted runtime on battery of 45minutes!

I'm not quite convinced by that runtime - but it is certainly ample time for a safe system shutdown.

  • Overall 5*
  • Ease of use 5*
  • Value for money 5*

Sockets
Reviewed by Rich. Review Posted 01/02/2007

In response to Francis, most computer ups do not have uk mains type sockets on them, they have the universal 3 pin sockets for the standard computer power cables, which you might find you have to go out and buy. eg: Quicklinx 3ZMRWS

  • Overall 5*
  • Ease of use 5*
  • Value for money 5*

APC are the best
Reviewed by Mark. Review Posted 06/06/2006

This may not have come with a mains cable - you use the one that your PC has now. The connectors are straight through male/female connectors. Unless the last reviewer had one designed for abroad then you should have no problem. I have bought a number of APC UPS's in the past and they are worth every penny. (You normally get two straight through leads with the UPS - enough for tower and monitor

  • Overall 5*
  • Ease of use 5*
  • Value for money 5*
