Description
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Smart-UPS are trusted by millions of IT professionals throughout the world to protect equipment and critical data from costly interruptions by supplying reliable, network-grade power reliably and efficiently.
-
SmartConnect
Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services. -
Software package
SmartConnect software for remote power monitoring feature availability varies by terms of use -
Communication port support
SmartConnect Ethernet port for cloud monitoring feature availability varies by terms of use -
High online efficiency
Reduces utility costs, generates less heat. -
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. -
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics. -
LCD Status Display
Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs. -
Cold-start capable
Provides temporary battery power when the utility power is out. -
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Specifications
Summary
- Product Description

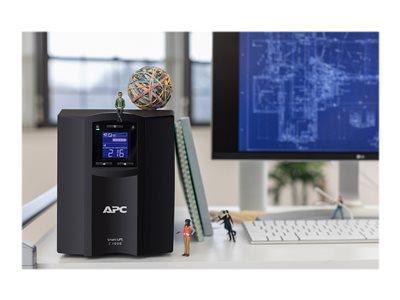

- APC Smart-UPS SMC1000IC - UPS - 600 Watt - 1000 VA
- Device Type
- UPS - external
- Weight
- 17.25 kg
- Input Voltage
- AC 220/230/240 V
- Output Voltage
- AC 230 V
- Power Capacity
- 600 Watt / 1000 VA
- Input Connectors
- 1 x power IEC 60320 C20
- Output connectors
- 8 x power IEC 60320 C13
- Battery
- Lead Acid
- Batteries Qty
- 1
- Run Time (Up To)
- 5 min at full load
- Networking
- USB
- Colour
- Black
- Dimensions (WxDxH)
- 21.9 cm x 17.1 cm x 43.9 cm
Detailed Specification
General
- Device Type
- UPS - external
- Colour
- Black
Power Device
- UPS Technology
- Line interactive
- Input Voltage
- AC 220/230/240 V
- Input Voltage Range
- AC 180 - 286 V
- Input Voltage Range (Adjustable)
- AC 170 - 300 V
- Frequency Provided
- 47 - 63 Hz
- Frequency Required
- 50/60 Hz ± 3%
- Input Connectors
- 1 x power IEC 60320 C20
- Power Output Connectors Details
- 8 x power IEC 60320 C13
- Output Voltage
- AC 230 V 47 - 63 Hz
- Power Capacity
- 600 Watt / 1000 VA
- Output Waveform
- Sinewave
- Surge Energy Rating
- 693 Joules
Battery
- Quantity
- 1
- Technology
- Lead Acid
- Run Time (Up To)
- 5 min at full load , 14 min at half load
Networking
- Remote Management Interface
- USB
Expansion / Connectivity
- Interfaces
- 1 x management - RJ-45 , 1 x USB - 4 pin USB Type A
Miscellaneous
- Features
- Audible alarm, LCD display
- Compliant Standards
- C-Tick, GOST, VDE
Software / System Requirements
- Software Included
- APC PowerChute Business Edition
Dimensions & Weight
- Width
- 21.9 cm
- Depth
- 17.1 cm
- Height
- 43.9 cm
- Weight
- 17.25 kg
