Description

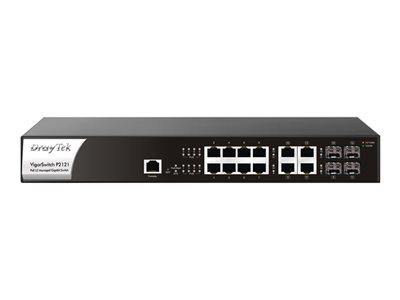

VigorSwitch P2121 is a layer 2 managed switch at a compact size, designed just for the small business network which has various devices.
-
Network security
VigorSwitch P2121 offers security features to prevent the local network being overloaded by superfluous traffic. -
Quality of service
VigorSwitch P2121 is especially ideal for a network which is going to deploy IP cameras and IP phones.
Specifications
Summary
- Product Description
- Draytek VigorSwitch P2121 - switch - 8 ports - Managed
- Device Type
- Switch - 8 ports - Managed
- Enclosure Type
- 1U
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 140 W
- Performance
- Forwarding performance (64-byte packet size): 17.85 Mpps
- Capacity
- Virtual interfaces (VLANs): 256
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 9KB
- Routing Protocol
- IGMPv2, IGMPv3, MLDv2, MLD
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, TR-069
- Features
- VLAN support, Syslog support, DoS attack prevention, IPv6 support, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, MLD snooping, IPv4 support, LACP, Port Security, SPQ, port isolation, CoS, tagged VLAN, GVRP, DSCP support, 4.1MB packet buffer, Storm Control, ARP inspection, VLAN Double Tagging (Q-in-Q), EEE, WRR
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
- Dimensions (WxDxH)
- 23 cm x 33 cm x 4.4 cm
- Weight
- 2.43 kg
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- Switch - 8 ports - Managed
- Enclosure Type
- Desktop 1U
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 140 W
- Performance
- Forwarding performance (64-byte packet size): 17.85 Mpps
- Capacity
- Virtual interfaces (VLANs): 256
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 9KB
- Routing Protocol
- IGMPv2, IGMPv3, MLDv2, MLD
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, TR-069
- Authentication Method
- Secure Shell (SSH), RADIUS, TACACS+
- Features
- VLAN support, Syslog support, DoS attack prevention, IPv6 support, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, MLD snooping, IPv4 support, LACP, Port Security, SPQ, port isolation, CoS, tagged VLAN, GVRP, DSCP support, 4.1MB packet buffer, Storm Control, ARP inspection, VLAN Double Tagging (Q-in-Q), EEE, WRR
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Expansion / Connectivity
- Interfaces
- 8 x 1000Base-T RJ-45 PoE+ , 4 x Gigabit LAN SFP , 4 x 1000Base-T RJ-45 , 1 x console RJ-45 management
Miscellaneous
- Included Accessories
- Wall mounting kit
- Rack Mounting Kit
- Included
Dimensions & Weight
- Width
- 23 cm
- Depth
- 33 cm
- Height
- 4.4 cm
- Weight
- 2.43 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 - 90% (non-condensing)
