Description
Get more power and lower your electric bill with the EarthWatts Green series! One of the most environmentally-friendly power supplies available, the EarthWatts EA-380D Green efficiently delivers 380-watt of reliable and stable power while meeting the bronze level of efficiency from 80 Plus, the most widely recognized independent standard in power supply efficiency. On top of that, this EarthWatts power supply boasts universal input to automatically work on any power grid on the planet, and an 80mm fan to keep cool. Get the power you need, save money and help protect the environment with Antec's EA-380D Green!
Specifications
Summary
- Product Description

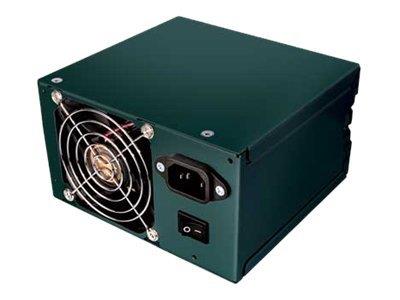

- Antec EarthWatts EA-380D Green - power supply - 380 Watt
- Device Type
- Power supply - active Power Factor Correction (PFC) - internal
- Specification Compliance
- ATX12V 2.3
- 80 PLUS Certification
- 80 PLUS Bronze
- Weight
- 1.6 kg
- Input Voltage
- AC 100-240 V
- Power Capacity
- 380 Watt
- Output Current
- +5V 20 A , +3.3V 20 A , +12V1 17 A , +12V2 15 A , -12V 0.8 A , +5VSB 2.5 A
- Output connectors
- 1 x 6 pin PCI Express power , 5 x 15 pin Serial ATA power , 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section , 1 x power 24 pin ATX with detachable 4 pin section , 4 x 4 PIN internal power , 1 x 4 PIN mini-power connector
- Cooling System
- 80 mm fan
- Dimensions (WxDxH)
- 15 cm x 14 cm x 8.6 cm
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Device Type
- Power supply - active Power Factor Correction (PFC) - internal
- Specification Compliance
- ATX12V 2.3
- PSU Form Factor
- ATX
Power Device
- Input Voltage
- AC 100-240 V
- Input Voltage Margin
- ± 10%
- Frequency Required
- 47 - 63 Hz
- Power Output Connectors Details
- 1 x 6 pin PCI Express power , 5 x 15 pin Serial ATA power , 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section , 1 x power 24 pin ATX with detachable 4 pin section , 4 x 4 PIN internal power , 1 x 4 PIN mini-power connector
- Power Capacity
- 380 Watt
- Output Current
- +5V 20 A , +3.3V 20 A , +12V1 17 A , +12V2 15 A , -12V 0.8 A , +5VSB 2.5 A
- 80 PLUS Certification
- 80 PLUS Bronze
Miscellaneous
- Cooling System
- 80 mm fan
- Features
- Over current protection, over voltage protection, short-circuit protection
- Compliant Standards
- UL, TUV, C-Tick, BSMI, cUL, CB, CCC, FCC, RoHS
Manufacturer Warranty
- Service & Support
- Limited warranty - parts and labour - 3 years
Environmental Parameters
- Min Operating Temperature
- 10 °C
- Max Operating Temperature
- 50 °C
Dimensions & Weight
- Width
- 15 cm
- Depth
- 14 cm
- Height
- 8.6 cm
- Weight
- 1.6 kg
