Description
The GS1200 series of PoE+ switches features true web management, QoS and support for 802.3af and 802.3at PoE+ plus a user-friendly set-up interface. With essential power and value features built-in, it’s the right choice for small or remote offices deploying IP cameras, VoIP phone systems or wireless access points.
Specifications
Summary
- Product Description

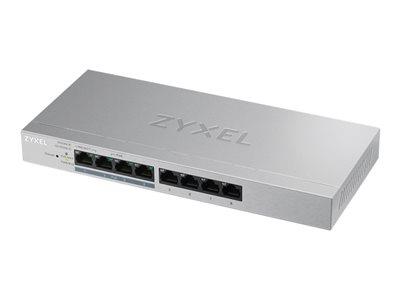

- Zyxel GS1200-8HP v2 - switch - 8 ports - Managed
- Device Type
- Switch - 8 ports - Managed
- Subtype
- Gigabit Ethernet
- Ports
- 4 x 10/100/1000 + 4 x 10/100/1000 (PoE+)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 60 W
- Performance
- Switching capacity: 16 Gbps
- Capacity
- LAG groups: 2 , Multicast groups: 128
- MAC Address Table Size
- 4K entries
- Jumbo Frame Support
- 9KB
- Routing Protocol
- IGMPv2, IGMP, IGMPv3
- Remote Management Protocol
- HTTP
- Features
- Flow control, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, Broadcast Storm Control, firmware upgradable, Quality of Service (QoS), DHCP client, loop prevention, 192KB packet buffer, Class of Service (CoS), administrator's password, Link Aggregation, Energy-Efficient Ethernet (EEE), Weighted Round Robin (WRR), loopback detection, VLAN Tagging, port-based QoS
- Compliant Standards
- IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az
- Dimensions (WxDxH)
- 24 cm x 10.5 cm x 2.6 cm
- Weight
- 584 g
- Localisation
- United Kingdom
Detailed Specification
General
- Device Type
- Switch - 8 ports - Managed
- Enclosure Type
- Desktop
- Subtype
- Gigabit Ethernet
- Ports
- 4 x 10/100/1000 + 4 x 10/100/1000 (PoE+)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 60 W
- Performance
- Switching capacity: 16 Gbps
- Capacity
- LAG groups: 2 , Multicast groups: 128
- MAC Address Table Size
- 4K entries
- Jumbo Frame Support
- 9KB
- Routing Protocol
- IGMPv2, IGMP, IGMPv3
- Remote Management Protocol
- HTTP
- Features
- Flow control, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, Broadcast Storm Control, firmware upgradable, Quality of Service (QoS), DHCP client, loop prevention, 192KB packet buffer, Class of Service (CoS), administrator's password, Link Aggregation, Energy-Efficient Ethernet (EEE), Weighted Round Robin (WRR), loopback detection, VLAN Tagging, port-based QoS
- Compliant Standards
- IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az
- Status Indicators
- Port status, power, PoE
Expansion / Connectivity
- Interfaces
- 4 x 1000Base-TX RJ-45 PoE+ - 30 W , 4 x 1000Base-TX RJ-45
Power
- Power Device
- External power adapter
- Power Provided
- 55 V - 1.3 A
- Power Consumption Operational
- 72 Watt
Miscellaneous
- Included Accessories
- Rubber feet
- Compliant Standards
- EMC, FCC, RoHS, BSMI Class B, LVD
- Localisation
- United Kingdom
Dimensions & Weight
- Width
- 24 cm
- Depth
- 10.5 cm
- Height
- 2.6 cm
- Weight
- 584 g
Dimensions & Weight (Shipping)
- Shipping Width
- 25.6 cm
- Shipping Depth
- 13.2 cm
- Shipping Height
- 7.8 cm
- Shipping Weight
- 1.153 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 10 - 90% (non-condensing)
