Description
This direct thermal/thermal transfer desktop printer includes a 300dpi print head to ensure high-quality, crisp, clear printing of 2-D bar codes, fine text and complex graphics -ideal for high-density data on small labels. It has the widest range of features and the easiest ribbon-loading system of any desktop printer on the market. It prints up to 4 inches per second.
-
Versatile barcode compatibility
Supports a wide range of barcodes including Aztec code, Codabar, and QR code, making it ideal for diverse industry applications from retail to healthcare. -
High-quality printing
Delivers sharp, clear prints with a maximum resolution of 300 DPI, ensuring every detail is captured for accurate barcode scanning. -
Efficient media handling
Accommodates rolls up to 10.8 cm with a core diameter of 25.4 mm and a maximum outer diameter of 127 mm, facilitating seamless label printing operations. -
Robust connectivity options
Equipped with USB and serial interfaces, offering flexible connection solutions to easily integrate into existing systems. -
Durable design for demanding environments
Built to operate within a wide temperature range from 5°C, ensuring reliable performance in various working conditions.
Specifications
Summary
- Product Description

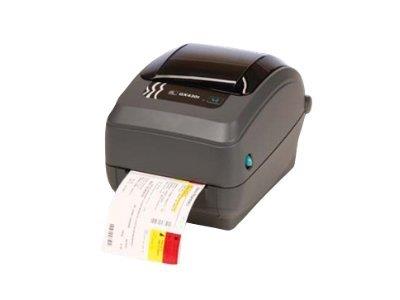

- Zebra GX Series GX430t - label printer - B/W - direct thermal / thermal transfer
- Printer Type
- Label printer - direct thermal / thermal transfer - B/W
- Weight
- 2.1 kg
- Localisation
- United Kingdom, Europe
- Max Media Size
- Roll (10.8cm)
- Min Media Size (Custom)
- 19 mm x 9.7 mm
- Max Media Size (Custom)
- 108 mm x 991 mm
- Print Speed
- Up to 102 mm/sec - max speed
- Max Resolution (B&W)
- 300 dpi
- Interface
- USB, LAN, serial
- RAM Installed (Max)
- 8 MB SDRAM
- Flash Memory Installed (Max)
- 4 MB (68 MB)
- Language Simulation
- ZPL, ZPL II, EPL2
- Barcodes
- Code 93, Industrial 2 of 5, Code 39, UCC/EAN-128, Code 49, GS1 DataBar, QR code, MaxiCode, Aztec code, LOGMARS, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Code 2 of 5, UPC, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, Japanese Post, Plessey, MacroPDF417, EAN-14, Code 128B, Code 128C, German Post, MSI-3, Code 128A
- Media Type
- Labels, continuous forms, fanfold paper, tag stock
- Features
- Peeler
- Networking
- Print server - Ethernet, Fast Ethernet
- Microsoft Certification
- Compatible with Windows 7
- Manufacturer Warranty
- 1-year warranty
- Dimensions (WxDxH)
- 19.4 cm x 25.4 cm x 19.1 cm
Detailed Specification
General
- Printer Type
- Label printer - direct thermal / thermal transfer - monochrome
- Localisation
- United Kingdom, Europe
Printer
- Print Speed
- Up to 102 mm/sec - max speed - 300 dpi
- Built-in Devices
- Status LCD, peeler
- Connectivity Technology
- Wired
- Interface
- USB, LAN, serial
- Max Resolution (B&W)
- 300 dpi
- Language Simulation
- ZPL, ZPL II, EPL2
- Features
- Peeler
- Fonts Included
- 16 x bitmapped , 1 x scalable
- Barcodes
- Code 93, Industrial 2 of 5, Code 39, UCC/EAN-128, Code 49, GS1 DataBar, QR code, MaxiCode, Aztec code, LOGMARS, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Code 2 of 5, UPC, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, Japanese Post, Plessey, MacroPDF417, EAN-14, Code 128B, Code 128C, German Post, MSI-3, Code 128A
RAM
- RAM Installed (Max)
- 8 MB
- Technology / Form Factor
- SDRAM
Flash Memory
- Flash Memory
- 4 MB (installed) / 68 MB (max)
Media Handling
- Media Type
- Labels, continuous forms, fanfold paper, tag stock
- Max Media Size
- Roll (10.8cm)
- Min Media Size (Custom)
- 19 mm x 9.7 mm
- Max Media Size (Custom)
- 108 mm x 991 mm
- Media Sizes
- Roll (1.9 - 10.8 cm)
- Max Printing Width
- 104 mm
- Max Printing Length
- 991 mm
- Media Thickness Range
- 0.08 mm - 0.2 mm
- Roll Maximum Outer Diameter
- 127 mm
- Roll Core Diameter
- 25.4 mm, 12.7 mm, 37.1 mm
- Media Feeders
- 1 x manual - 1 roll - Roll (10.8cm)
Networking
- Networking
- Print server
- Network Controller Name
- ZebraNet 10/100 Print Server
- Data Link Protocol
- Ethernet, Fast Ethernet
Expansion / Connectivity
- Connections
- 1 x RS-232 - 9 pin D-Sub (DB-9) , 1 x USB - 4 pin USB Type B , 1 x LAN - RJ-45
Miscellaneous
- Included Accessories
- Peeler
- Cables Included
- 1 x USB cable
- Compatible with Windows 7
- "Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
- Compliant Standards
- TUV, VCCI, C-Tick, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class B, CCC, FCC Part 15
Power
- Power Device
- Power adapter - external
- Frequency Required
- 50/60 Hz
- Power Factor Correction
- Yes
Software / System Requirements
- Software Included
- Drivers & Utilities, ZebraDesigner
Manufacturer Warranty
- Service & Support
- Limited warranty - 1 year
Environmental Parameters
- Min Operating Temperature
- 5 °C
- Max Operating Temperature
- 41 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
Dimensions & Weight
- Width
- 19.4 cm
- Depth
- 25.4 cm
- Height
- 19.1 cm
- Weight
- 2.1 kg
Dimensions & Weight (Shipping)
- Weight (Shipping)
- 4.1 kg
