Description

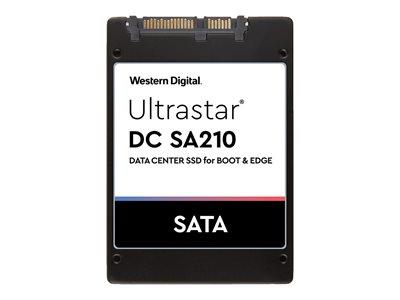

Built on Western Digital 64-layer 3D NAND, the Ultrastar DC SA210 SATA SSD is Western Digital's first SSD purpose-built for enterprise boot and edge applications. The Ultrastar DC SA210 offers outstanding value and provides an alternative to enterprise boot HDDs. End-to-end data protection and LDPC error correction mechanisms provide greater reliability. Ultrastar DC SA210 has been validated to operate with Windows Server 2012/2016 and various versions of the enterprise Linux operating systems.
Edge computing is pushing applications, like content delivery, away from centralized data centers and closer to those who are consuming the content. In such environments, data access speed is essential. The Ultrastar DC SA210 delivers up to 510MiB/s sequential read throughput and 64K IOPS random read performance to unleash the full potential of your server grade system and its high-end CPU capabilities. Such applications can also benefit from higher capacity offerings. The Ultrastar DC SA210 is designed to be cost-optimized and offer sufficient endurance for read-intensive environments. It is architected to minimize the probability of data loss due to unexpected power loss yet still be a cost-effective alternative to traditional enterprise SSDs that rely on costly hold-up capacitors. To address encryption requirements, the Ultrastar DC SA210 supports self-encryption drive (SED) capability compliant with TCG OPAL 2.01 to protect data from unauthorized access. The DC SA210 also includes Instant Secure Erase functionality to speed and simplify drive redeployment and retirement.
-
Robust durability
Designed to withstand the demands of both high and low operational temperatures, the WD Ultrastar SA210 operates reliably between 0°C and 70°C. Its solid state drive technology, coupled with an impressive MTBF of 2,000,000 hours, ensures long-term dependability for critical data storage. -
Enhanced security
The WD Ultrastar SA210 solid state drive comes equipped with advanced encryption features, including Self-Encrypting Drive (SED) technology and TCG Opal Encryption 2.01. This hardware encryption ensures that your data remains secure against unauthorized access, providing peace of mind for sensitive information storage. -
High-speed performance
With an internal data rate of up to 510 MBps for reading and 475 MBps for writing, alongside a data transfer rate of 600 MBps, this internal hard drive delivers swift and efficient performance. The inclusion of LDPC error correction further enhances data integrity and reliability during high-speed transactions.
Specifications
Summary
- Product Description
- WD Ultrastar SA210 HBS3A1996A7E6B1 - SSD - 960 GB - SATA 6Gb/s
- Type
- Solid state drive - internal
- Capacity
- 960 GB
- Hardware Encryption
- Yes
- Form Factor
- 2.5"
- Interface
- SATA 6Gb/s
- Data Transfer Rate
- 600 MBps
- Features
- LDPC error correction
- Dimensions (WxDxH)
- 100.2 mm x 69.85 mm x 7 mm
- Weight
- 59.7 g
- Manufacturer Warranty
- 5-year warranty
Detailed Specification
General
- Device Type
- Solid state drive - internal
- Capacity
- 960 GB
- Hardware Encryption
- Yes
- Form Factor
- 2.5"
- Interface
- SATA 6Gb/s
- Features
- LDPC error correction
- Width
- 100.2 mm
- Depth
- 69.85 mm
- Height
- 7 mm
- Weight
- 59.7 g
Performance
- SSD Endurance
- 175 TB
- Drive Transfer Rate
- 600 MBps (external)
- Internal Data Rate
- 510 MBps (read) / 475 MBps (write)
- Maximum 4KB Random Write
- 5000 IOPS
- Maximum 4KB Random Read
- 64000 IOPS
- Seek Time
- 0.15 ms (average)
Reliability
- MTBF
- 2,000,000 hours
- Non-Recoverable Errors
- 1 per 10^17
Expansion & Connectivity
- Interfaces
- 1 x SATA 6 Gb/s
- Compatible Bay
- 2.5"
Power
- Power Consumption
- 3.8 Watt (average)
Manufacturer Warranty
- Service & Support
- Limited warranty - 5 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 70 °C
