Description
Data centers face growing pressures to store more with flat-to-shrinking budgets. Keeping systems operational for as long as possible to maximize investments can be an effective part of the strategy, but supporting those legacy applications becomes even more challenging as drive technologies move to next generation formats and interfaces. Ultrastar 7K2 has a SATA 6Gb/s interface and native 512-byte sector size to provide high performance and compatibility with legacy data center applications. Enhanced RAFF technology in the 7K2 includes sophisticated electronics to monitor the drive and correct both linear and rotational vibration disturbances in real time - especially helpful in multi-drive arrays and rack-mounted systems maintaining high read/write performance.
-
Enhanced durability
Equipped with Enhanced Rotational Vibration Safeguard (RVS) and a robust Dual Stage Actuator (DSA), this hard drive ensures reliable performance in demanding environments, making it ideal for continuous operation. -
Optimized for efficiency
Featuring HelioSeal technology for lower power consumption and a Secure Erase function for data security, this hard drive is designed for optimal efficiency and peace of mind. -
High-capacity storage
With a 1 TB capacity and a data transfer rate of 600 MBps, this hard drive offers ample storage space and fast data access, suitable for a variety of applications. -
Reliable performance
A high MTBF of 2,000,000 hours and support for 24x7 continuous operation make this hard drive a dependable choice for critical systems and data centers.
Specifications
Summary
- Product Description

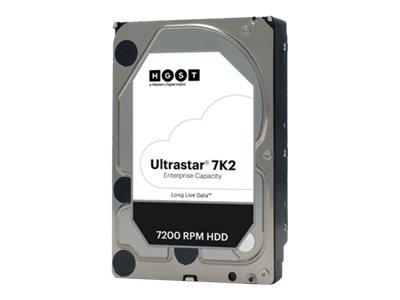

- WD Ultrastar DC HA210 HUS722T1TALA604 - hard drive - 1 TB - SATA 6Gb/s
- Type
- Hard drive - internal
- Capacity
- 1 TB
- Form Factor
- 3.5"
- Interface
- SATA 6Gb/s
- Data Transfer Rate
- 600 MBps
- Buffer Size
- 128 MB
- Spindle Speed
- 7200 rpm
- Features
- Dual Stage Actuator (DSA), Secure Erase function, HelioSeal, 24x7 continuous operation, Enhanced Rotational Vibration Safeguard (RVS), Dynamic fly height technology, advanced format 512n
- Dimensions (WxDxH)
- 101.6 mm x 147 mm x 26.1 mm
- Weight
- 640 g
- Manufacturer Warranty
- 5-year warranty
Detailed Specification
General
- Device Type
- Hard drive - internal
- Capacity
- 1 TB
- Form Factor
- 3.5"
- Interface
- SATA 6Gb/s
- Buffer Size
- 128 MB
- Bytes per Sector
- 512
- Features
- Dual Stage Actuator (DSA), Secure Erase function, HelioSeal, 24x7 continuous operation, Enhanced Rotational Vibration Safeguard (RVS), Dynamic fly height technology, advanced format 512n
- Width
- 101.6 mm
- Depth
- 147 mm
- Height
- 26.1 mm
- Weight
- 640 g
Performance
- Drive Transfer Rate
- 600 MBps (external)
- Internal Data Rate
- 184 MBps
- Spindle Speed
- 7200 rpm
Reliability
- MTBF
- 2,000,000 hours
- 24x7 Operation
- Yes
- Non-Recoverable Errors
- 1 per 10^15
- Load / Unload Cycles
- 600,000
Expansion & Connectivity
- Interfaces
- 1 x SATA 6 Gb/s
- Compatible Bay
- 3.5"
Power
- Power Consumption
- 8.1 Watt (active) , 5.9 Watt (idle)
Miscellaneous
- Compliant Standards
- RoHS 2011/65/EU
Manufacturer Warranty
- Service & Support
- Limited warranty - 5 years
Environmental Parameters
- Min Operating Temperature
- 5 °C
- Max Operating Temperature
- 60 °C
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Shock Tolerance (operating)
- 65 g @ 2 ms half-sine wave
- Shock Tolerance (non-operating)
- 300 g @ 2 ms half-sine wave
- Vibration Tolerance (operating)
- 1.08 g @ 10-300 Hz
- Vibration Tolerance (non-operating)
- 3.8 g @ 10-300 Hz
