Description

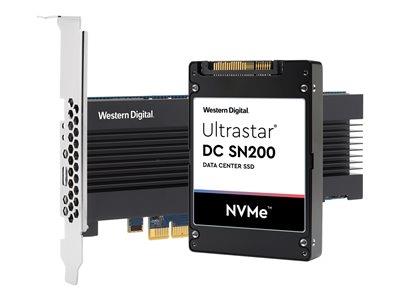

HGST extends its technology leadership with the introduction of the Ultrastar SN200 Series solid-state drives (SSDs). The Ultrastar SN200 Series SSDs deliver a new level of performance and capacity for Enterprise, Cloud and Hyperscale environments. Enabling faster intelligence in the expanding digital demands of business applications the Ultrastar SN200 Series SSDs are a reliable resource for fast access to critical data. The HGST Ultrastar SN200 Series SSDs double the speed of the previous generation within the same power envelope. By offering exceptional 580,000 mixed read/write random 70/30 4KiB I/O performance on the HH-HL add-in card (AIC), the Ultrastar SN200 Series SSD will enable OLTP applications to scale to new levels.
-
Ultra-low latency and high quality of service (QoS)
To meet Tier 1 enterprise service level agreements (SLAs), data center managers need high QoS from their storage infrastructure. Ultrastar DC SN200 delivers a 30% improvement over its predecessor providing consistent low latency as the device reaches its highest levels of throughput. The combination of high throughput performance and predictable low latency delivers extreme performance for today's data intensive applications. -
Enterprise storage experience in dual port
Ultrastar SSDs leverage decades of enterprise storage design expertise in high performance and high reliability to deliver this dual-port NVMe SSD 2.5-inch drive. The dual-port feature supports two redundant paths to an SSD, ensuring access to data in the event of a failure in the data path.
Specifications
Summary
- Product Description
- WD Ultrastar SN200 HUSMR7619BDP3Y1 - SSD - 1.92 TB - PCIe 3.0 x4 (NVMe)
- Type
- Solid state drive - internal
- Capacity
- 1.92 TB
- Form Factor
- 2.5" SFF
- Interface
- PCIe 3.0 x4 (NVMe)
- Features
- Secure Erase function, PowerSave technology, End-to-end data path protection, Online Transaction Processing (OLTP), Read-Intensive Endurance, Advanced ECC Engine, Mixed-Use, Online Analytical Processing (OLAP), NVM Express (NVMe), High Frequency Trading (HFT), flash-aware RAID
- Dimensions (WxDxH)
- 10.045 mm x 6.985 mm x 15 mm
- Manufacturer Warranty
- 5-year warranty
Detailed Specification
General
- Device Type
- Solid state drive - internal
- Capacity
- 1.92 TB
- Form Factor
- 2.5" SFF
- Interface
- PCIe 3.0 x4 (NVMe)
- Features
- Secure Erase function, PowerSave technology, End-to-end data path protection, Online Transaction Processing (OLTP), Read-Intensive Endurance, Advanced ECC Engine, Mixed-Use, Online Analytical Processing (OLAP), NVM Express (NVMe), High Frequency Trading (HFT), flash-aware RAID
- Width
- 10.045 mm
- Depth
- 6.985 mm
- Height
- 15 mm
Performance
- Internal Data Rate
- 3350 MBps (read) / 2100 MBps (write)
- 4KB Random Read
- 835000 IOPS
- 4KB Random Write
- 75000 IOPS
- Average Latency
- 20 µs
Reliability
- MTBF
- 2,000,000 hours
- Seek Errors
- 1 per 10^17
Expansion & Connectivity
- Interfaces
- 1 x PCI Express 3.0 x4 (NVMe)
- Compatible Bay
- 2.5" SFF
Power
- Power Consumption
- 9 Watt (idle) , 25 Watt (active)
Miscellaneous
- Compliant Standards
- REACH, RoHS 2 (2011/65/EU)
Manufacturer Warranty
- Service & Support
- Limited warranty - 5 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 70 °C
