Description

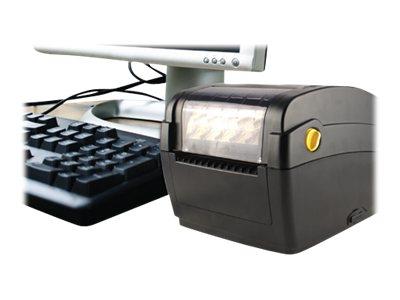

The Wasp WPL304 desktop barcode printer provides a price-performance combination unmatched by other desktop barcode printers. With small footprint of any wasp 4-inch format printer, the WPL304 is an excellent choice for cramped workspaces.
Specifications
Summary
- Product Description
- Wasp WPL304 - label printer - B/W - direct thermal / thermal transfer
- Printer Type
- Label printer - direct thermal / thermal transfer - B/W
- Weight
- 2.3 kg
- Localisation
- United Kingdom
- Max Media Size
- Roll (11.2 cm)
- Min Media Size (Custom)
- 20 mm
- Max Media Size (Custom)
- 112 mm
- Print Speed
- Up to 102 mm/sec
- Max Resolution (B&W)
- 203 dpi
- Interface
- Parallel, USB, LAN, serial
- Processor
- 200 MHz
- RAM Installed (Max)
- 8 MB SDRAM
- Flash Memory Installed (Max)
- 4 MB
- Language Simulation
- ZPL, EPL, WPL
- Barcodes
- Code 93, Code 39, UCC/EAN-128, GS1 DataBar, QR code, MaxiCode, Aztec code, LOGMARS, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, Codabar, Code 11, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, Code 128B, Code 128C, Code 128A
- Media Type
- Labels
- Networking
- Print server
- System Requirements
- Microsoft Windows Server 2003, Microsoft Windows Server 2008, Microsoft Windows 2000/XP/Vista/7/8
- Manufacturer Warranty
- 2-year warranty
- Dimensions (WxDxH)
- 20.2 cm x 25.8 cm x 17.3 cm
Detailed Specification
General
- Printer Type
- Label printer - direct thermal / thermal transfer - monochrome
- Localisation
- United Kingdom
Printer
- Print Speed
- Up to 102 mm/sec - 203 dpi
- Connectivity Technology
- Wired
- Interface
- Parallel, USB, LAN, serial
- Max Resolution (B&W)
- 203 dpi
- Language Simulation
- ZPL, EPL, WPL
- Barcodes
- Code 93, Code 39, UCC/EAN-128, GS1 DataBar, QR code, MaxiCode, Aztec code, LOGMARS, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, Codabar, Code 11, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, Code 128B, Code 128C, Code 128A
Processor
- Processor
- 200 MHz
RAM
- RAM Installed (Max)
- 8 MB
- Technology / Form Factor
- SDRAM
Flash Memory
- Flash Memory
- 4 MB
Media Handling
- Media Type
- Labels
- Max Media Size
- Roll (11.2 cm)
- Min Media Size (Custom)
- 20 mm
- Max Media Size (Custom)
- 112 mm
- Media Sizes
- Roll (11.2 cm)
- Max Printing Width
- 106 mm
- Max Printing Length
- 2286 mm
- Roll Maximum Outer Diameter
- 127 mm
- Roll Core Diameter
- 25.4 mm, 38.1 mm
- Media Feeders
- 1 x manual - 1 roll - Roll (11.2 cm)
Networking
- Networking
- Print server
Expansion / Connectivity
- Connections
- 1 x parallel , 1 x serial , 1 x USB , 1 x LAN
Miscellaneous
- Cables Included
- 1 x USB cable
- Compliant Standards
- FCC Class B certified, UL, TUV, cUL, C-Tick Class B, CCC
Software / System Requirements
- OS Required
- Microsoft Windows Server 2003, Microsoft Windows Server 2008, Microsoft Windows 2000/XP/Vista/7/8
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 5 °C
- Max Operating Temperature
- 40 °C
Dimensions & Weight
- Width
- 20.2 cm
- Depth
- 25.8 cm
- Height
- 17.3 cm
- Weight
- 2.3 kg
