Description
Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options.
Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 98% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and optional SNMPWEBCARD network interface. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets.
Specifications
Summary
- Product Description
- Eaton Tripp Lite Series UPS Smart 2200VA 1920W Rackmount AVR 230V Pure Sine Wave C13 2U - UPS - 1920 Watt - 2200 VA
- Device Type
- UPS - external
- Rack Size
- 19" - 2U
- Weight
- 27.5 kg
- Input Voltage
- AC 220/230/240 V
- Output Voltage
- AC 220/230/240 V + 8% / - 19%
- Power Capacity
- 1920 Watt / 2200 VA
- Input Connectors
- 1 x power IEC 60320 C20
- Output connectors
- 8 x power IEC 60320 C13
- Battery
- Lead Acid expandable
- Battery Form Factor
- Internal
- Run Time (Up To)
- 5 min at full load
- Colour
- Attractive black
- Dimensions (WxDxH)
- 44.5 cm x 48.3 cm x 9 cm
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- UPS - external
- Battery Enclosure Type
- Internal
- Height (Rack Units)
- 2U
- Rack Size
- 19"
- Colour
- Attractive black
Power Device
- UPS Technology
- Line interactive
- Input Voltage
- AC 220/230/240 V
- Input Voltage Range
- AC 158 - 290 V
- Frequency Provided
- 50/60 Hz
- Frequency Required
- 50/60 Hz
- Input Connectors
- 1 x power IEC 60320 C20
- Power Output Connectors Details
- 8 x power IEC 60320 C13
- Output Voltage
- AC 220/230/240 V + 8% / - 19% - 50/60 Hz
- Power Capacity
- 1920 Watt / 2200 VA
- Output Waveform
- Sinewave
- Surge Suppression
- Yes
- Surge Energy Rating
- 350 Joules
- Circuit Protection
- Circuit breaker
Battery
- Type
- Expandable
- Technology
- Lead Acid
- Voltage Provided
- 48 V
- Run Time (Up To)
- 5 min at full load
- Recharge Time
- 4 hours
Expansion / Connectivity
- Interfaces
- 1 x management (USB) - 4 pin USB Type B , 1 x management (RS-232) - 9 pin D-Sub (DB-9)
- Expansion Slots
- 1 (total) / 1 (free) x Expansion Slot
Miscellaneous

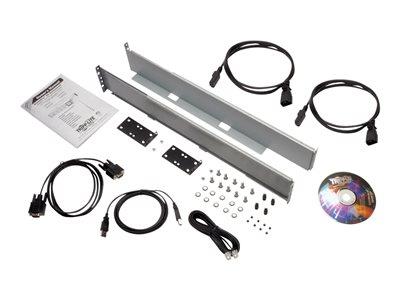

- Cables Included
- 3 x power cable - external
- Features
- Audible alarm, emergency power off, Automatic Voltage Regulation (AVR), LED indicators
- Compliant Standards
- FCC Class A certified, TUV GS, GOST, SASO, RoHS
Software / System Requirements
- Software Included
- TrippLite PowerAlert
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 0 - 95%
Dimensions & Weight
- Width
- 44.5 cm
- Depth
- 48.3 cm
- Height
- 9 cm
- Weight
- 27.5 kg
Dimensions & Weight (Shipping)
- Shipping Width
- 59.5 cm
- Shipping Depth
- 51 cm
- Shipping Height
- 23 cm
- Shipping Weight
- 32.4 kg
