Description

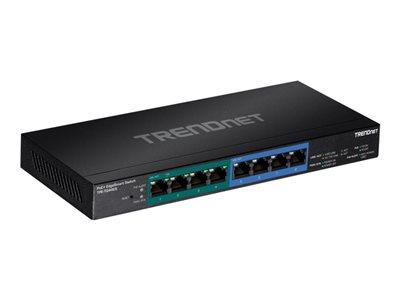

TRENDnet's 8-Port Gigabit EdgeSmart PoE+ Switch, model TPE-TG44ES, is a cost-effective switch solution for high-speed gigabit PoE+ applications. This EdgeSmart switch features the most commonly used managed switch features, reducing unnecessary switch complexity. The web-based management interface offers features for traffic control, troubleshooting, access controls, and monitoring. TRENDnet's TPE-TG44ES provides four gigabit PoE+ and four gigabit non-PoE ports. The PoE+ standard supplies up to 30W of power per port for devices such as high power wireless access points, PTZ (Pan Tilt Zoom) Internet cameras, and VoIP telephony systems.
-
PoE power
A 60W PoE power budget supports up to four Power over Ethernet devices. -
EdgeSmart management
Provides an easy to use web-based GUI management for reduced switch configuration complexity and offers a combination of more commonly used SMB management features for easy deployment. -
Integration flexibility
Managed features include VLAN, IGMP Snooping, and QoS for flexible network integration.
Specifications
Summary
- Product Description
- TRENDnet TPE TG44ES - switch - 8 ports
- Device Type
- Switch - 8 ports
- Subtype
- Gigabit Ethernet
- Ports
- 4 x 10/100/1000 (PoE+) + 4 x 10/100/1000
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 60 W
- Performance
- Switching capacity: 16 Gbps ¦ Forwarding performance: 11.9 Mpps
- MAC Address Table Size
- 4K entries
- Jumbo Frame Support
- 9KB
- Features
- IGMP snooping, port mirroring, firmware upgradable, Weighted Fair Queuing (WFQ), Quality of Service (QoS), reset button, fanless, over-current protection, short circuit protection, loop prevention, link aggregation trunking, Strict Priority (SP), tagged VLAN, Storm Control, rate limit, DLF (Destination Lookup Failure)
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3at, IEEE 802.3az
- Power
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 24 cm x 10.5 cm x 2.7 cm
- Weight
- 576 g
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 8 ports
- Enclosure Type
- Desktop, wall-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 4 x 10/100/1000 (PoE+) + 4 x 10/100/1000
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 60 W
- Performance
- Switching capacity: 16 Gbps ¦ Forwarding performance: 11.9 Mpps
- MAC Address Table Size
- 4K entries
- Jumbo Frame Support
- 9KB
- Features
- IGMP snooping, port mirroring, firmware upgradable, Weighted Fair Queuing (WFQ), Quality of Service (QoS), reset button, fanless, over-current protection, short circuit protection, loop prevention, link aggregation trunking, Strict Priority (SP), tagged VLAN, Storm Control, rate limit, DLF (Destination Lookup Failure)
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3at, IEEE 802.3az
- Status Indicators
- Port status, power, PoE
Expansion / Connectivity
- Interfaces
- 4 x 1000Base-T RJ-45 PoE+ , 4 x 1000Base-T RJ-45
Power
- Power Device
- External power adapter
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 65.28 Watt
Miscellaneous
- MTBF
- 1,089,244 hours
- Compliant Standards
- FCC, RoHS, RoHS 2011/65/EU, EN 61000-3-3:2013, EN 55024:2010, EMC 2014/30/EU, EN 61000-3-2:2014, Directive 2014/35/EU, EN 55032:2015, AS/NZS CISPR32:2013, REACH 2006/1907
Software / System Requirements
- Software Included
- Drivers & Utilities
Dimensions & Weight
- Width
- 24 cm
- Depth
- 10.5 cm
- Height
- 2.7 cm
- Weight
- 576 g
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime , Limited warranty - power supply and fans - 1 year
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 90% (non-condensing)
