Description

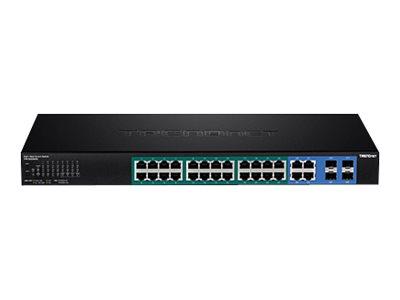

TRENDnet’s 28-Port Gigabit Web Smart PoE+ Switch, model TPE-5028WS, delivers advanced management features with a 56Gbps switching capacity. This rack mountable IPv6 ready switch comes with an intuitive web-based interface. Advanced traffic management controls, troubleshooting, and SNMP monitoring make this a powerful solution for SMB networks. The TPE-5028WS provides 24 gigabit PoE+ ports with a total power budget of 370W, and four shared gigabit ports (RJ-45 or SFP). The PoE+ standard supplies up to 30W of power per port for devices such as high power wireless access points, PTZ (Pan Tilt Zoom) Internet cameras, and VoIP telephony systems.
Specifications
Summary
- Product Description
- TRENDnet TPE 5028WS - switch - 28 ports - smart - rack-mountable - TAA Compliant
- Device Type
- Switch - 28 ports - smart
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 24 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 370 W
- Performance
- Switching capacity: 56 Gbps , Forwarding performance (64-byte packet size): 41.7 Mpps
- Capacity
- VLAN groups: 256
- MAC Address Table Size
- 16K entries
- Jumbo Frame Support
- 10KB
- Routing Protocol
- IGMPv2, IGMP, IGMPv3
- Remote Management Protocol
- SNMP 1, RMON 1, SNMP 3, SNMP 2c, HTTP, HTTPS
- Features
- DHCP support, VLAN support, IGMP snooping, Syslog support, port mirroring, MAC address filtering, IPv6 support, half duplex mode, full duplex mode, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Cable Test (VCT) technology, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, LLDP support, Link Aggregation Control Protocol (LACP), Traffic Control, SNMP trap, Management Information Base (MIB), Dynamic VLAN Support (GVRP), Class of Service (CoS), Strict Priority (SP), tagged VLAN, Denial of Service (DoS), per port bandwidth control, 3 fans, 1.5MB packet buffer, Storm Control, port filtering, Static Link Aggregation, Voice VLAN, LLDP-MED, Private VLAN, Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
- Power
- AC 100 - 240 V (50/60 Hz)
- Dimensions (WxDxH)
- 44 cm x 25 cm x 4.4 cm
- Weight
- 3.92 kg
- System Requirements
- Microsoft Windows Server 2003, Microsoft Windows Server 2008, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10
- TAA Compliant
- Yes
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 28 ports - smart
- Enclosure Type
- Desktop, rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 24 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 370 W
- Performance
- Switching capacity: 56 Gbps , Forwarding performance (64-byte packet size): 41.7 Mpps
- Capacity
- VLAN groups: 256
- MAC Address Table Size
- 16K entries
- Jumbo Frame Support
- 10KB
- Routing Protocol
- IGMPv2, IGMP, IGMPv3
- Remote Management Protocol
- SNMP 1, RMON 1, SNMP 3, SNMP 2c, HTTP, HTTPS
- Encryption Algorithm
- TLS, SSL 3.0, SSL 2.0
- Authentication Method
- RADIUS, TACACS+
- Features
- DHCP support, VLAN support, IGMP snooping, Syslog support, port mirroring, MAC address filtering, IPv6 support, half duplex mode, full duplex mode, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Cable Test (VCT) technology, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, LLDP support, Link Aggregation Control Protocol (LACP), Traffic Control, SNMP trap, Management Information Base (MIB), Dynamic VLAN Support (GVRP), Class of Service (CoS), Strict Priority (SP), tagged VLAN, Denial of Service (DoS), per port bandwidth control, 3 fans, 1.5MB packet buffer, Storm Control, port filtering, Static Link Aggregation, Voice VLAN, LLDP-MED, Private VLAN, Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
- Status Indicators
- Power, PoE, link/activity, SFP
Expansion / Connectivity
- Interfaces
- 24 x 1000Base-T RJ-45 PoE+ , 4 x Gigabit LAN SFP , 4 x 1000Base-T RJ-45
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 100 - 240 V (50/60 Hz)
- Power Consumption Operational
- 446 Watt
Miscellaneous
- Rack Mounting Kit
- Included
- MTBF
- 277,604 hours
- Compliant Standards
- UL, FCC
- TAA Compliant
- Yes
Software / System Requirements
- OS Required
- Microsoft Windows Server 2003, Microsoft Windows Server 2008, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10
Dimensions & Weight
- Width
- 44 cm
- Depth
- 25 cm
- Height
- 4.4 cm
- Weight
- 3.92 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Environmental Parameters
- Min Operating Temperature
- -5 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 95% (non-condensing)
