Description
With fast Internet access, your gaming will be fully optimized with a large boost in speed, latency, and responsiveness. Large-sized game downloads, seamless live streaming, and massive data backups via the cloud are as easy as choosing your character.
-
Local data transmissions in seconds
For local connections, a 10 Gigabit Ethernet PCIe adapter helps build a lightning fast transport channel between a central server and other working machines in your local network. Local data transmissions will be a breeze for you as you handle bandwidth-intensive tasks easily at your home or office. -
Versatile, multi-speed compatibility
The Ethernet port automatically negotiates between higher and lower speed connections, allowing you to upgrade to 10 Gigabit Ethernet networking smoothly. -
A bandwidth buff for gaming
QoS technology ensures enough bandwidth and avoids network congestion for PC gaming. It delivers prioritized performance for gamers.
Specifications
Summary
- Product Description

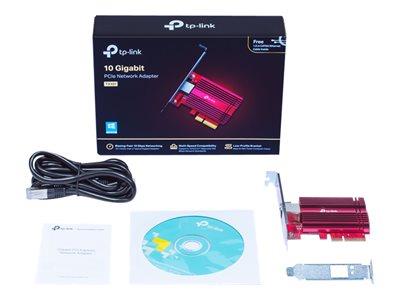

- TP-Link TX401 - V1 - network adapter - PCIe 3.0 x4 - 1/2.5/5/10GBase-T x 1
- Device Type
- Network adapter
- Form Factor
- Plug-in card - low profile
- Interface (Bus) Type
- PCI Express 3.0 x4
- Ports
- 1/2.5/5/10GBase-T x 1
- Dimensions (WxDxH)
- 2.15 cm x 12.08 cm x 9.82 cm
- Cabling Type
- Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 10GBase-T, Ethernet 2.5GBase-T, Ethernet 5GBase-T
- Data Link Protocol
- 10GbE
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz
- System Requirements
- Linux, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2019
Detailed Specification
General
- Device Type
- Network adapter
- Form Factor
- Plug-in card - low profile
- Interface (Bus) Type
- PCI Express 3.0 x4
Networking
- Ports
- 1/2.5/5/10GBase-T x 1
- Connectivity Technology
- Wired
- Cabling Type
- Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 10GBase-T, Ethernet 2.5GBase-T, Ethernet 5GBase-T
- Data Link Protocol
- 10 Gigabit Ethernet
- Status Indicators
- Link/activity
- Features
- Auto-negotiation, half duplex mode, full duplex mode, QoS
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz
Expansion / Connectivity
- Interfaces
- 1 x 1/2.5/5/10GBase-T - RJ-45
Miscellaneous
- Included Accessories
- Low-profile bracket
- Cables Included
- 1 x network cable (external) - 1.5 m
- Compliant Standards
- FCC, RoHS
Software / System Requirements
- Software Included
- Drivers & Utilities
- OS Required
- Linux, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2019
Dimensions & Weight
- Width
- 2.15 cm
- Depth
- 12.08 cm
- Height
- 9.82 cm
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
