Description
An EAP in each room allows guests to enjoy their own private Wi-Fi network that's fast, delivering a strong signal, and providing corner to corner coverage.
-
Connect faster and more
802.11ac wave 2 MU-MIMO technology enables multiple users to access the Internet simultaneously, which largely boosts up your network speed of up to 1,200 Mbps. Capable of transmitting in both 2.4 GHz and 5 GHz wireless band, it provides greater compatibility to connect varieties of devices. -
Effortless deployment with PoE-powered
With 802.3af/802.3at Power over Ethernet supported there's no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you're ready to go. -
Quick, simplified installation
EAP235-Wall is easy to install, so extra cost, time, or professional knowledge are completely unnecessary. -

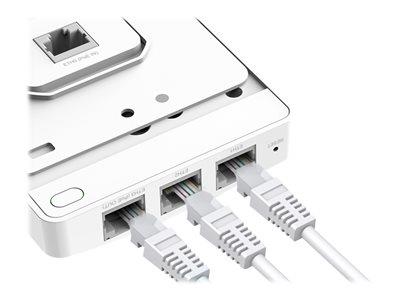

Full Gigabit ports to bridge network
Equipped with four Gigabit data ports, one downlink port offering PoE passthrough, to connect multiple devices to your Gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables.
Specifications
Summary
- Product Description
- TP-Link Omada EAP235-Wall - radio access point - Wi-Fi 5
- Device Type
- Radio access point
- Form Factor
- Wall mountable
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
- Frequency Band
- 2.4 GHz, 5 GHz
- Capacity
- Maximum number of configured SSIDs (2.4 Ghz): 8 , Maximum number of configured SSIDs (5 Ghz): 8
- Included Accessories
- Wall mounting kit
- OS Required
- Microsoft Windows XP / Vista / 7 / 8 / 10
- Power Over Ethernet (PoE) Supported
- PoE+
- Dimensions (WxDxH)
- 8.6 cm x 2 cm x 14.3 cm
Detailed Specification
General
- Device Type
- Radio access point
- Width
- 8.6 cm
- Depth
- 2 cm
- Height
- 14.3 cm
Networking
- Form Factor
- Wall mountable
- Connectivity Technology
- Wireless
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
- Remote Management Protocol
- SNMP 1, SNMP 2c, HTTP, HTTPS
- Frequency Band
- 2.4 GHz, 5 GHz
- Capacity
- Maximum number of configured SSIDs (2.4 Ghz): 8 , Maximum number of configured SSIDs (5 Ghz): 8
- Wi-Fi Rating
- AC1200
- Features
- Load balancing, E-mail alert, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), reset button, rogue access point detection, MU-MIMO technology, beamforming technology, band steering, SSID to VLAN mapping, rate limit, VLAN management
- Encryption Algorithm
- 128-bit WEP, 64-bit WEP, 152-bit WEP, WPA, WPA2, WPA-PSK, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise
- Authentication Method
- Secure Shell (SSH)
- Compliant Standards
- IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac Wave 2
Aerial
- Antenna
- Internal
- Antenna Qty
- 4
- Gain Level
- 4 dBi
Expansion / Connectivity
- Interfaces
- 3 x 1000Base-T (PoE+) - RJ-45 , 1 x 1000Base-T (uplink) - RJ-45
Miscellaneous
- Included Accessories
- Wall mounting kit
- Compliant Standards
- FCC, RoHS
Power
- Power Over Ethernet (PoE) Supported
- PoE+
- Power Consumption Operational
- 9.8 Watt
Software / System Requirements
- OS Required
- Microsoft Windows XP / Vista / 7 / 8 / 10
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
