Description
The TP-Link LiteWave switches provide easy and affordable way to expand your wired network. They are easy to use and reliable.
Plug and play, no configuration needed
Fanless design ensures quiet operation
-
Durable metal casing
The interior components of LS108G are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, LS105G delivers switching performance you can depend on. Its compact size makes it ideal for deployment on desktops or work benches. -
Use where you need
The LS108G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.
Specifications
Summary
- Product Description

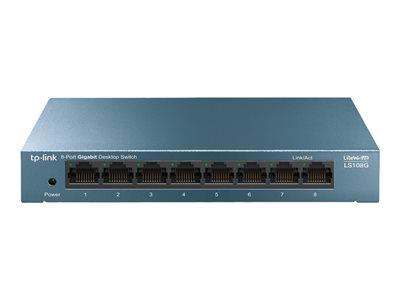

- TP-Link LiteWave LS108G - switch - 8 ports - unmanaged
- Device Type
- Switch - 8 ports - unmanaged
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000
- Performance
- Forwarding performance: 11.9 Mpps
- MAC Address Table Size
- 4K entries
- Jumbo Frame Support
- 16KB
- Features
- Auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, store and forward, QoS, fanless, loop prevention
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 801.1p
- Power
- AC 220 V (50 Hz)
- Dimensions (WxDxH)
- 15.8 cm x 9.91 cm x 2.5 cm
Detailed Specification
General
- Device Type
- Switch - 8 ports - unmanaged
- Enclosure Type
- Desktop
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000
- Performance
- Forwarding performance: 11.9 Mpps
- MAC Address Table Size
- 4K entries
- Jumbo Frame Support
- 16KB
- Features
- Auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, store and forward, QoS, fanless, loop prevention
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 801.1p
- Status Indicators
- Port status, power
Expansion / Connectivity
- Interfaces
- 8 x 1000Base-T RJ-45
Power
- Power Device
- External power adapter
- Voltage Required
- AC 220 V (50 Hz)
- Power Consumption Operational
- 3.7 Watt
Miscellaneous
- Compliant Standards
- FCC, RoHS
Dimensions & Weight
- Width
- 15.8 cm
- Depth
- 9.91 cm
- Height
- 2.5 cm
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 - 90% (non-condensing)
