Lag no more
Revolutionary OFDMA reduces latency by up to 75% to provide ultra-responsive gaming, uninterrupted video chatting and seamless live streaming. -
High-gain antennas for broader coverage
Two powerful signal-boosting high-gain antennas greatly extend existing Wi-Fi coverage, offering a fast, smooth online experience from farther away. -
More devices, less congestion
OFDMA creates separate channel segments for devices to communicate while MU-MIMO allows multiple clients to simultaneously receive data. Combining these technologies guarantees your PC gets strong, efficient, and lag-free wireless connectivity at the same time all of your other devices are communicating. -
Ingenious details make a perfect whole
A customized heat sink improves connection stability by efficiently dissipating thermal energy. Additionally, gold plating on every contractor prevents oxidation. Attention to every detail ensures your adapter is crafted for ultimate performance.
Specifications
Summary
- Product Description

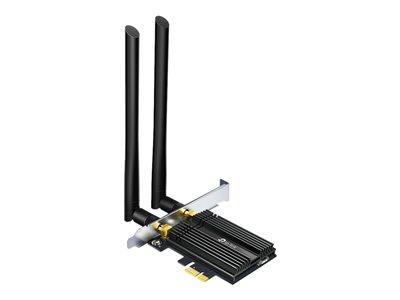

- TP-Link Archer TX50E - network adapter - PCIe
- Device Type
- Network adapter
- Form Factor
- Plug-in card
- Interface (Bus) Type
- PCI Express x1
- Data Link Protocol
- Wi-Fi 5, Bluetooth 5.0, 802.11ax
- Performance
- Maximum data rate (2.4 GHz): 574 Mbps , Maximum data rate (5 GHz): 2402 Mbps
- Frequency Band
- 2.4 GHz, 5 GHz
- Compliant Standards
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac, Bluetooth 4.2, Bluetooth 5.0, IEEE 802.11ax
- System Requirements
- Windows 10 64-bit Edition
Detailed Specification
General
- Device Type
- Network adapter
- Form Factor
- Plug-in card
- Interface (Bus) Type
- PCI Express x1
Networking
- Connectivity Technology
- Wireless
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, 802.11ax
- Performance
- Maximum data rate (2.4 GHz): 574 Mbps , Maximum data rate (5 GHz): 2402 Mbps
- Line Coding Format
- DBPSK, DQPSK, CCK, 64 QAM, 256 QAM, 16 QAM, OFDM, 1024 QAM
- Frequency Band
- 2.4 GHz, 5 GHz
- Compliant Standards
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac, Bluetooth 4.2, Bluetooth 5.0, IEEE 802.11ax
Aerial
- Antenna
- External detachable
- Antenna Qty
- 2
- Gain Level
- 5 dBi
Expansion / Connectivity
- Interfaces
- 2 x aerial
Miscellaneous
- Included Accessories
- Low-profile bracket
- Encryption Algorithm
- 128-bit WEP, 64-bit WEP, WPA, WPA2, WPA-PSK, WPA2-PSK, WPA3
- Compliant Standards
- FCC, RoHS
Software / System Requirements
- Software Included
- Drivers & Utilities
- OS Required
- Windows 10 64-bit Edition
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
