Description

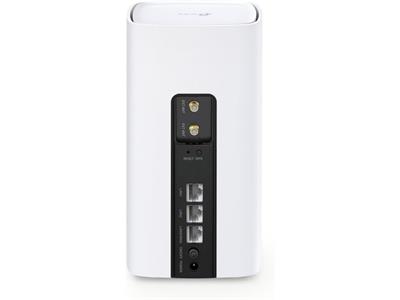

The TP-Link Archer NX200 V1 bridges and routers bring enhanced connectivity and security to your home network. This device is not just a router; it's a comprehensive solution for high-speed Internet, extensive coverage, and robust protection against cyber threats. With the integration of both 5G and Wi-Fi 6 technologies, users can enjoy faster speeds and reduced latency, making it ideal for streaming, gaming, and downloading. The Archer NX200 V1 is designed with security in mind, featuring WPA3 encryption and a suite of security features to keep your network safe. Managing your network is easier than ever with EasyMesh support, allowing for straightforward setup and network management. Additionally, the router's 10 internal antennas ensure your entire home is covered, providing reliable connections for all your devices. Whether you're looking for speed, security, or simplicity, the Archer NX200 V1 meets your needs.
-
Advanced connectivity
With support for both 5G and Wi-Fi 6 technologies, the Archer NX200 V1 ensures your devices enjoy faster speeds and lower latency. Whether streaming, gaming, or downloading, experience enhanced wireless performance. -
Comprehensive security
Equipped with WPA3 encryption and a suite of security features including Access Control List (ACL) support, Stateful Packet Inspection (SPI), and DoS protection, this router provides a fortified barrier against cyber threats. -
Effortless network management
Featuring EasyMesh support and a user-friendly interface, setting up and managing your home network is simple. Parental controls and guest network capabilities offer additional layers of control and security. -
Seamless coverage
Boasting 10 internal antennas and features like Quality of Service (QoS) and Wi-Fi Multimedia (WMM) support, the Archer NX200 V1 delivers extensive coverage and ensures prioritization of traffic for critical applications. -
Versatile connectivity options
With three integrated LAN ports and support for a wide range of cellular bands, this router offers flexible connection options for a variety of network configurations and devices, ensuring you're always connected.
Specifications
Summary
- Product Description
- TP-Link Archer NX200 V1 - wireless router - Wi-Fi 6 - 5G - desktop
- Device Type
- Wireless router - 3-port switch (integrated)
- Enclosure Type
- Desktop
- Mobile Communication Protocol
- UMTS, FDD LTE, TDD LTE
- Generation
- 5G
- Cellular Band
- LTE B3, LTE B7, LTE B20, LTE B1, LTE B5, LTE B28, LTE B8, LTE B40, LTE B41, LTE B38, LTE B32, LTE B42, LTE B43, 5G n78, 5G n1, 5G n3, 5G n5, 5G n7, 5G n8, 5G n20, 5G n28, 5G n40, 5G n41, 5G n77, 5G n38, UMTS B1, UMTS B5, UMTS B8
- WAN Ports Qty
- 1
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
- Frequency Band
- 2.4 GHz / 5 GHz
- Data Transfer Rate
- 4.67 Gbps
- Performance
- Maximum data rate (2.4 GHz): 574 Mbps , Maximum data rate (5 GHz): 1201 Mbps
- Network / Transport Protocol
- PPTP, L2TP, IPSec, PPPoE, DHCP, DDNS, IPv4, IPv6, OpenVPN
- Routing Protocol
- Static IP routing
- Remote Management Protocol
- DHCP
- Features
- SPI, ALG support, parental control, IP address filtering, firmware upgradable, WMM support, ACL support, QoS, virtual server support, WAN failover, DHCP server, port forwarding, reset button, port triggering, dynamic IP mode, DHCP client, Wireless Scheduler, domain filter, IPMB, DMZ support, WPS button, EasyMesh, Guest Network, Address Reservation, Wi-Fi on/off button, No-IP DDNS, DoS protection
- Compliant Standards
- IEEE 802.11, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, UPnP, IEEE 802.11ac, IEEE 802.11ax
- Power
- AC 100-240 V (50/60 Hz) 0.6 A
- Dimensions (WxDxH)
- 9.9 cm x 9.9 cm x 19 cm
- System Requirements
- UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10
Detailed Specification
General
- Device Type
- Wireless router - 3-port switch (integrated)
- Enclosure Type
- Desktop
- Connectivity Technology
- Wireless, wired
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
- Frequency Band
- 2.4 GHz / 5 GHz
- Data Transfer Rate
- 4.67 Gbps
- Performance
- Maximum data rate (2.4 GHz): 574 Mbps , Maximum data rate (5 GHz): 1201 Mbps
- Network / Transport Protocol
- PPTP, L2TP, IPSec, PPPoE, DHCP, DDNS, IPv4, IPv6, OpenVPN
- Routing Protocol
- Static IP routing
- Remote Management Protocol
- DHCP
- Encryption Algorithm
- 128-bit WEP, 64-bit WEP, WPA, WPA2, WPA-PSK, WPA2-PSK, WPA3
- Wi-Fi Rating
- AX1800
- Features
- SPI, ALG support, parental control, IP address filtering, firmware upgradable, WMM support, ACL support, QoS, virtual server support, WAN failover, DHCP server, port forwarding, reset button, port triggering, dynamic IP mode, DHCP client, Wireless Scheduler, domain filter, IPMB, DMZ support, WPS button, EasyMesh, Guest Network, Address Reservation, Wi-Fi on/off button, No-IP DDNS, DoS protection
- Compliant Standards
- IEEE 802.11, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, UPnP, IEEE 802.11ac, IEEE 802.11ax, Plug and Play, RoHS
Line Properties
- Line Coding Format
- 1024 QAM
Communications
- Mobile Communication Protocol
- UMTS, FDD LTE, TDD LTE
- Generation
- 5G
- Cellular Band
- LTE B3, LTE B7, LTE B20, LTE B1, LTE B5, LTE B28, LTE B8, LTE B40, LTE B41, LTE B38, LTE B32, LTE B42, LTE B43, 5G n78, 5G n1, 5G n3, 5G n5, 5G n7, 5G n8, 5G n20, 5G n28, 5G n40, 5G n41, 5G n77, 5G n38, UMTS B1, UMTS B5, UMTS B8
Expansion / Connectivity
- Interfaces
- LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 , WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 , Antenna: 2 x
- Expansion Slots
- 1 (total) / 1 (free) x Nano-SIM
Aerial
- Aerial
- Internal
- Antenna Qty
- 10
- Configuration Details
- 8 internal LTE/5G antennas, 2 internal Wi-Fi aerials
Power
- Power Device
- External power adapter
- Voltage Required
- AC 100-240 V (50/60 Hz)
- Electric Current Required
- 0.6 A
Miscellaneous
- Cables Included
- 1 x network cable , 1 x power adapter - 1.5 m
Software / System Requirements
- OS Required
- UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10
Dimensions & Weight
- Width
- 9.9 cm
- Depth
- 9.9 cm
- Height
- 19 cm
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
