Description

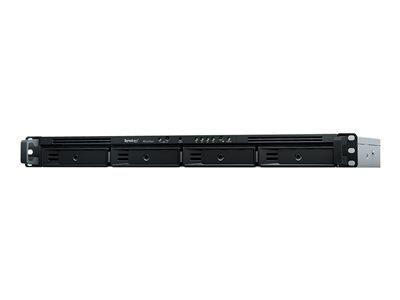

RS1619xs+ is a high-performance and scalable 1U rackmount NAS designed with upgradable memory and M.2 SSD cache configuration to meet the needs of modern businesses that require a flexible, reliable, and efficient storage solution.
-
Robust security
Equipped with AES-NI, SSL, and TLS encryption algorithms, the Synology RackStation RS1619xs+ ensures your data remains secure and protected. Its comprehensive security features, including anti-malware and anti-virus protection, safeguard your system against potential threats. -
High-performance storage
Featuring a quad-core Intel Xeon processor with a clock speed of 2.2 GHz and turbo up to 2.7 GHz, along with DDR4 ECC RAM, the RS1619xs+ delivers exceptional performance for your storage needs. Its support for RAID configurations enhances data protection and reliability. -
Versatile connectivity
With four Gigabit Ethernet ports, two USB-A ports, and expansion slots including PCI Express 3.0 x8 and M.2, the RS1619xs+ offers flexible connectivity options for various networking and storage expansion needs. -
Comprehensive network services
The RS1619xs+ supports a wide range of network protocols and services, including FTP, NFS, iSCSI, and WebDAV, making it a versatile choice for managing and sharing files across different platforms and devices. -
Advanced surveillance capabilities
Supporting up to 75 IP cameras and featuring H.264, H.265, and MJPEG compression formats, the RS1619xs+ serves as a powerful surveillance station, providing high-quality video monitoring and recording capabilities.
Specifications
Summary
- Product Description
- Synology RackStation RS1619xs+ - NAS server - 40 TB
- Device Type
- NAS server
- Host Connectivity
- Gigabit Ethernet
- Enclosure Type
- Rack-mountable - 1U
- Total Storage Capacity
- 40 TB
- Max Supported Capacity
- 56 TB
- Installed Devices / Modules Qty
- 4 (installed) / 4 (max)
- Dimensions (WxDxH)
- 48 cm x 51.86 cm x 4.4 cm
- Weight
- )
- Processor
- 1 x Intel Xeon D-1527 2.2 GHz (Quad-Core)
- Storage Controller
- RAID SATA 6Gb/s RAID RAID 0, 1, 5, 6, 10, JBOD, RAID F1
- Hard Drive
- 4 x 10 TB SATA 6Gb/s - Western Digital
- Networking
- 10Mb LAN, 100Mb LAN, 1GbE
- IP Cameras Supported
- 75
- RAM
- 8 GB
- Power
- AC 120/230 V (50/60 Hz)
- Power Redundancy
- Yes
- Manufacturer Warranty
- 5-year warranty
Detailed Specification
General
- Device Type
- NAS server
- Host Connectivity
- Gigabit Ethernet
- Enclosure Type
- Rack-mountable - 1U
- Total Storage Capacity
- 40 TB
- Max Supported Capacity
- 56 TB
- Installed Devices / Modules Qty
- 4 (installed) / 4 (max)
- Width
- 48 cm
- Depth
- 51.86 cm
- Height
- 4.4 cm
- Weight
- )
- Built-in Devices
- Led panel
Processor / Memory
- Processors Installed
- 1 x Intel Xeon D-1527 2.2 GHz
- Number of Cores
- Quad-Core
- Max Supported Qty
- 1
- Max Turbo Speed
- 2.7 GHz
- RAM
- 8 GB (installed) / 64 GB (supported) - DDR4
- Features
- ECC
Storage Controller
- Type
- RAID
- Interface Type
- SATA 6Gb/s
- RAID Level
- RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID F1
Hard Drive
- Type
- HDD - hot-swap - 3.5"
- Capacity
- 4 x 10 TB
- Interface Type
- SATA 6Gb/s
- Manufacturer
- Western Digital
Networking
- Data Link Protocol
- 10Mb LAN, 100Mb LAN, 1GbE
- Network / Transport Protocol
- TCP/IP, PPTP, L2TP, iSCSI, FTP, NFS
- Remote Management Protocol
- SNMP, Telnet, HTTPS, SSH
- Network Services Compatibility
- Microsoft Active Directory (AD), Microsoft CIFS, Network File System (NFS), FTP, Apple File Protocol (AFP), Web-based Distributed Authoring and Versioning (WebDAV), Calendaring Extensions to WebDAV (CalDAV)
- Features
- Firewall protection, hardware encryption, LDAP support, wake on LAN (WOL), IP address filtering, backup server, download client, anti-malware protection, event log, Access Control List (ACL) support, Samba support, FTP server, reset button, bandwidth control, surveillance station, PXE support, DLNA Media Server, cloud backup, VPN Server, Dropbox support, anti-virus protection, Google Drive support, Amazon Cloud Drive support, Yandex Disk support, Microsoft OneDrive support, hubiC support, OpenStack Swift-compatible, cloud station server, MailPlus server, Amazon S3 support
- Encryption Algorithm
- SSL, TLS, AES-NI
- Compliant Standards
- DLNA CERTIFIED
Security DVR
- IP Cameras Supported
- 75
- Compression Format
- MJPEG, H.264, H.265
- Image Resolution
- 1280x720, 1920x1080, 2048x1536, 2591x1944, 3840x2160
Expansion / Connectivity
- Expansion Bays
- 4 (total) / 0 (free) x hot-swap - 2.5" / 3.5"
- Expansion Slots
- 1 (total) / 1 (free) x PCI Express 3.0 x8 , 4 (total) / 3 (free) x DIMM 288-pin , 2 (total) / 2 (free) x M.2
- Interfaces
- 4 x Ethernet 1000Base-T - RJ-45 , 2 x USB 3.0 - Type A , 1 x serial (management) - DB-9
Miscellaneous
- Features
- Wake on LAN, built-in 2 cooling fans, scheduled power on/off
- Compliant Standards
- VCCI, BSMI, CCC, FCC, RoHS, KC, EAC, RCM
- Included Accessories
- Accessory pack
Power
- Power Device
- Internal power supply
- Installed Qty
- 2
- Max Supported Qty
- 2
- Power Redundancy
- Yes
- Power Redundancy Scheme
- 1+1
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 68.68 Watt
- Power Provided
- 150 Watt
Software / System Requirements
- Software Included
- McAfee AntiVirus (Trial)
Manufacturer Warranty
- Service & Support
- Limited warranty - 5 years
Environmental Parameters
- Min Operating Temperature
- 5 °C
- Max Operating Temperature
- 35 °C
- Humidity Range Operating
- 5 - 95%
- Sound Emission
- 39.3 dBA
