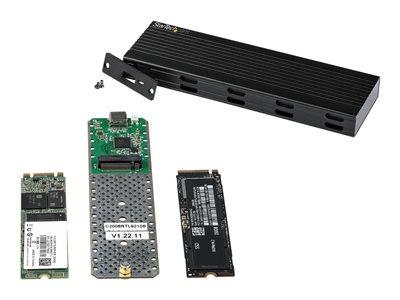

StarTech.com USB-C 10Gbps to M.2 NVMe or M.2 SATA SSD Enclosure

StarTech.com USB-C 10Gbps to M.2 NVMe or M.2 SATA SSD Enclosure

Review this product
Quicklinx: GD8XWS00 Mfr#: SM2E1BMU31C
Type: Storage enclosure
HD Size: M.2
13 in stock
£67.67 ex VAT
£81.20 inc VAT
Qty
Standard delivery Delivered within 3 working days

Description

Works with Both PCIe and SATA Based M.2 Drives - Supports 2230/2242/2260/2280 Drive Heights - USB-C and USB-A Host Cables Included

Turn your PCIe M.2 NVMe or SATA AHCI M.2 SSD into a highly portable, USB-based external storage solution. This enclosure features USB 3.2 Gen 2x1 (10Gbps) with UASP support & PCIe 3.0 delivering real read/write data transfer speeds up to 1GB per second. Working with both PCIe and SATA based drives, this enclosure ensures compatibility with virtually any M.2 drive, supporting both M-Key (PCIe) and B+M-Key (SATA) drives sized 2230/2242/2260/2280.

USB 3.2 Gen 2x1 10Gbps (also known as USB 3.1 Gen 2) is backward compatible with USB 3.1 Gen 1 5Gbps (also known as USB 3.0), USB 2.0, and USB 1.1.

All-in-One M.2 and USB Solution

With compatibility for both PCIe NVMe and SATA based M.2 drives, this enclosure solves the common challenge of identifying which enclosure is compatible with your M.2 drive. Regardless of whether your M.2 drive is SATA or PCIe NVMe based, you can rest assured that this enclosure will provide a high-performance solution for turning your M.2 drive into a portable external enclosure. For further compatibility the enclosure works with multiple drive heights supporting 2230, 2242, 2260 and 2280mm drives including Samsung (850, 860, 870, 950, 960, 970) Kingston, Seagate, Western Digital (WD), HP, and Intel SSD drives.

For multiplatform support this enclosure, that features a USB-C host connection, includes two different host cables, a USB-C to USB-C cable (20 in. / 50 cm) and a USB-C to USB-A cable (10" / 25 cm). This combined with the backward compatibility of the USB protocol, ensures that this M.2 enclosure will work with virtually any computer, whether it's USB-A, USB-C or Thunderbolt 3.

Unparalleled Performance

Leverage the high speeds of your M.2 NVMe or SATA drive, with this external SSD enclosure. It delivers USB 3.2 Gen 2x1 maximum theoretical throughput of 10Gbps, which is twice the throughput of USB 3.2 Gen 1x1 at 5Gbps. The enclosure also supports PCIe 3.0 which when combined with an M.2 NVMe drive takes full advantage of the throughput available to USB 3.2 Gen 2x1.

This fan-less aluminum enclosure features ventilation holes for maximum heat dissipation, ensuring your drive operates noiselessly at an optimal temperature to preserve performance and protect your drive from overheating damage.

Durable and Portable

This slim, pocket-sized enclosure for PCIe NVMe or SATA based M.2 drives is specially designed for mobility, with a small form-factor design that fits easily into your laptop bag. Its lightweight, yet durable aluminum housing helps to ensure your drive won't be damaged while you're on the move.

Hassle-Free Drive Installation

The external M2 SATA or M.2 NVMe SSD enclosure case supports driverless plug-and-play installation and hassle free drive installation. A screwdriver is included ensuring no additional tools are required.

SM2E1BMU31C is backed by a StarTech.com 2-year warranty and free lifetime technical support.

  • All-in-one M.2 and USB solution

    With compatibility for both PCIe NVMe and SATA based M.2 drives, this enclosure solves the common challenge of identifying which enclosure is compatible with your M.2 drive. Regardless of whether your M.2 drive is SATA- or PCIe NVMe -based, you can rest assured that this enclosure will provide a high-performance solution for turning your M.2 drive into a portable external enclosure.
  • Unparalleled performance

    Leverage the high speeds of your M.2 NVMe or SATA drive, with this external SSD enclosure. It delivers USB 3.2 Gen 2x1 maximum theoretical throughput of 10 Gbps, which is twice the throughput of USB 3.2 Gen 1x1 at 5 Gbps. The enclosure also supports PCIe 3.0 which when combined with an M.2 NVMe drive takes full advantage of the throughput available to USB 3.2 Gen 2x1. This fanless aluminum enclosure features ventilation holes for maximum heat dissipation, ensuring your drive operates noiselessly at an optimal temperature to preserve performance and protect your drive from overheating damage.
  • Durable and portable

    This slim, pocket-sized enclosure for PCIe NVMe- or SATA-based M.2 drives is specially designed for mobility, with a small form factor design that fits easily into your laptop bag. Its lightweight, yet durable aluminum housing helps ensure your drive won't be damaged while you're on the move.

Specifications

Summary

Product Description
StarTech.com USB-C 10Gbps to M.2 NVMe or M.2 SATA SSD Enclosure, External M.2 PCIe/SATA NGFF SSD Enclosure, Portable Aluminum Case, USB Type-C & USB-A Host Cables, For 2230/2242/2260/2280 - Works w/ Thunderbolt 3 (SM2E1BMU31C) - storage enclosure - M.2 Card - USB 3.2 (Gen 2) - TAA Compliant
Device Type
Storage enclosure - external
Bus Type
USB 3.2 (Gen 2)
Colour
Black
Expansion Bays
1 x internal - M.2 2230/2242/2260/2280
Hard Drive Form Factor Compatibility
M.2
Interface
M.2 Card
Data Transfer Rate
10 Gbit/s
Supported Devices
Solid state drive
Max Storage Devices Qty
1
Product Material
Plastic, aluminium
TAA Compliant
Yes
Dimensions (WxDxH)
12.8 cm x 4 cm x 1.4 cm
Weight
81.6 g
Manufacturer Warranty
2-year warranty


Detailed Specification

General

Device Type
Storage enclosure - external
Hard Drive Form Factor Compatibility
M.2
Host Bus
USB 3.2 (Gen 2)
Product Material
Plastic, aluminium
Colour
Black

Storage Controller

Interface
M.2 Card
Data Transfer Rate
10 Gbit/s
Supported Devices
Solid state drive
Max Storage Devices Qty
1
Processor
Realtek Semiconductor RTL9210B

Expansion / Connectivity

Bays
1 x internal - M.2 2230/2242/2260/2280
Interfaces
1 x PCIe 3.0 - NGFF B + M key
Connections
1 x USB 3.2 (Gen 2) - 24 pin USB-C

Miscellaneous

Included Accessories
Screwdriver
Features
USB powered, UASP transfer protocol, TRIM support, 4Kn drive compatible
MTBF
112,000 hours
Compliant Standards
FCC, RoHS, WEEE, REACH, RCM

Environmental Standards

TAA Compliant
Yes

Manufacturer Warranty

Service & Support
Limited warranty - 2 years

Dimensions & Weight

Width
12.8 cm
Depth
4 cm
Height
1.4 cm
Weight
81.6 g

Dimensions & Weight (Shipping)

Shipping Width
15.4 cm
Shipping Depth
10.6 cm
Shipping Height
3.5 cm
Shipping Weight
193.4 g

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90%
