Description

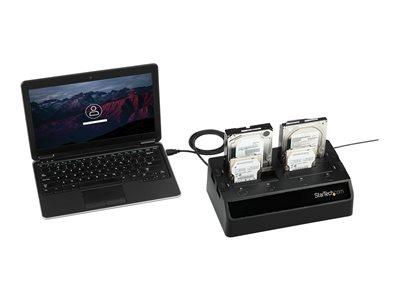

Connect and swap four 2.5/3.5" SATA III (6 Gbps) drives through USB 3.0 with UASP. The SDOCK4U33 four-bay 2.5/3.5" SATA HDD / SSD docking station lets you dock and swap four drives from your desktop or laptop computer simultaneously, using a single USB port.
Get the most out of your SATA III (Gbps) solid state drives and hybrid drives with this UASP (USB Attached SCSI Protocol) enhanced hard drive docking station. With performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller, UASP ensures high performance by reducing bottleneck.
The hard drive dock features independently-powered SATA connectors for each individual drive, ensuring you can operate drives separately. This gives you the freedom to hot-swap one drive while transferring data to another, saving you time. Plus, the built-in fans keep your drives running cool, ensuring optimal performance and helps to prevent premature drive failure.
Extend the value of this hard drive docking station further with the addition of the SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5 or 3.5in. IDE hard drive into a SATA hard drive dock.
To ensure compatibility with your computer system, the SDOCK4U33 supports all of the leading operating systems, including: Microsoft Windows (8/7/Vista/XP/Server 2008/Server 2003), Apple OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS.
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
Specifications
Summary
- Product Description
- StarTech.com 4-Bay USB 3.0 to SATA Hard Drive Docking Station, USB Hard Drive Dock, External 2.53.5 SATA III (6Gbps) SSDHDD Docking Station, Hot-Swappable Hard Drive Bay - Dual 40mm Fans, Top-Loading - storage enclosure
- Device Type
- Storage enclosure
- Colour
- Black
- Installed Devices / Modules Qty
- 0 (installed) / 4 (max)
- Supported Drives
- SATA-600
- OS Required
- Linux, Apple MacOS X 10.6, Microsoft Windows Vista (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Google Chrome OS, Apple MacOS X Lion 10.7, Apple OS X 10.8 Mountain Lion, Apple OS X 10.9 Mavericks, Microsoft Windows XP / 7 / 8 / 8.1 (32/64 bits)
- Power
- AC 120/230 V
- Dimensions (WxDxH)
- 17.12 cm x 29.05 cm x 8.73 cm
- Weight
- 1.028 kg
- Manufacturer Warranty
- 2-year warranty
- Designed For
- P/N: SVA12DN4NEUA
Detailed Specification
General
- Device Type
- Storage enclosure
- Enclosure Colour
- Black
Chassis
- Installed Devices / Modules Qty
- 0
- Supported Devices / Modules Qty
- 4
- Supported Drives
- SATA-600
Processor
- CPU
- No CPU
Expansion / Connectivity
- Expansion Bays
- 4 (total) / 4 (free) x external - 2.5" / 3.5" shared
- Interfaces
- 1 x USB 3.0 - 9 pin USB Type B , 4 x SATA 6Gb/s - 22 pin Serial ATA
System Requirements
- OS Required
- Linux, Apple MacOS X 10.6, Microsoft Windows Vista (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Google Chrome OS, Apple MacOS X Lion 10.7, Apple OS X 10.8 Mountain Lion, Apple OS X 10.9 Mavericks, Microsoft Windows XP / 7 / 8 / 8.1 (32/64 bits)
Miscellaneous
- Cables Included
- 1 x USB cable
- Compliant Standards
- FCC, RoHS
Power
- Power Device
- External power adapter
- Voltage Required
- AC 120/230 V
Dimensions & Weight
- Width
- 17.12 cm
- Depth
- 29.05 cm
- Height
- 8.73 cm
- Weight
- 1.028 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 5 °C
- Max Operating Temperature
- 35 °C
- Humidity Range Operating
- 20 - 80%
Compatibility Information
- Designed For
- P/N: SVA12DN4NEUA
