Description

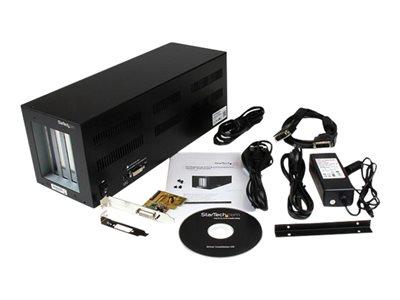

Add two PCI and two PCI Express expansion card slots to your desktop computer. The PEX2PCIE4L PCI/PCI Express Expansion Chassis provides a quick and simple I/O expansion solution to almost any PCI Express (PCIe) enabled system. Adding PCI/PCIe cards to a server or workstation, or providing a platform to swap cards between a mobile and desktop setup is a cost-effective and time-saving solution for maximizing the I/O capabilities of your system.
The external expansion chassis adds two full-length (38cm) PCI slots (32-bit/33MHz), as well as two PCIe x1 (single-lane) slots to a host computer through a single PCI Express connection. Providing total bandwidth up to 250MBps from the PCIe x1 host controller card allows the computer to function as though the expansion chassis cards were connected directly to the motherboard.
Specifications
Summary
- Product Description
- StarTech.com PCI Express to 2 PCI & 2 PCIe Expansion Enclosure System - Full Length (PEX2PCIE4L) - system bus extender
- Product Type
- System bus extender
- Dimensions (WxDxH)
- 38.2 cm x 13.7 cm x 14.3 cm
- Weight
- 4 kg
- Colour
- Black
- Power
- Power adapter - internal AC 120/230 V
- Manufacturer Warranty
- 2-year warranty
- Designed For
- P/N: SVA12M5NA
Detailed Specification
General
- Product Type
- System bus extender
- Width
- 38.2 cm
- Depth
- 13.7 cm
- Height
- 14.3 cm
- Weight
- 4 kg
- Enclosure Colour
- Black
Expansion / Connectivity
- Expansion Slots
- 2 (total) / 2 (free) x PCI
- Compatible Slots
- 2 x PCI Express x1
Miscellaneous
- Cables Included
- 1 x DVI cable - external - 91 cm
- Compliant Standards
- FCC, RoHS
Power
- Power Device
- Power adapter - internal
- Voltage Required
- AC 120/230 V
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 55 °C
Compatibility Information
- Designed For
- P/N: SVA12M5NA
