Description
This Gigabit PoE+ injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.
-
Designed for harsh environments
Industrial features include wide operating temperature range, IP30 housing, vibration, shock, and free-fall testing. -
Dual power inputs
Dual power inputs provide redundancy. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply, which does not require professional installation.
Specifications
Summary
- Product Description
- StarTech.com Industrial Gigabit Ethernet PoE Injector, 30W 802.3at PoE+ Midspan 48V-56VDC DIN Rail Power Over Ethernet Injector Adapter, -40C to +75C Cameras/Sensors/WiFi Access, 30W PoE - Midspan PoE Injector (POEINJ30W) - PoE injector - 30 Watt
- Device Type
- PoE injector - external
- Power Over Ethernet (PoE)
- PoE+
- Output Voltage
- 48 - 56 V
- Power Capacity
- 30 Watt
- Output connectors
- 1 x RJ-45
- Included Accessories

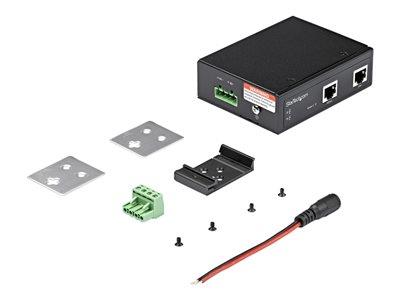

- Mounting kit, terminal block, terminal block to barrel power connector adapter
- Colour
- Black
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- PoE injector - external
- Power Over Ethernet (PoE)
- PoE+ (IEEE 802.3at)
- Colour
- Black
Power Device
- Power Output Connectors Details
- 1 x RJ-45
- Output Voltage
- 48 - 56 V
- Power Capacity
- 30 Watt
Expansion / Connectivity
- Interfaces
- 2 x Gigabit LAN - RJ-45
Miscellaneous
- Included Accessories
- Mounting kit, terminal block, terminal block to barrel power connector adapter
- MTBF
- 630,899 hours
- Features
- DIN rail mountable, auto MDIX support, LED indicators, over current protection, overload protection, 8 kV ESD protection (Air), 6 kV ESD protection (Contact)
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, UL, IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, FCC, RoHS, UL 60950-1, EN 60950-1, WEEE, cULus, IP30, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- -40 °C
- Max Operating Temperature
- 75 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
Dimensions & Weight (Shipping)
- Shipping Width
- 21.1 cm
- Shipping Depth
- 16.2 cm
- Shipping Height
- 6.4 cm
- Shipping Weight
- 400 g
