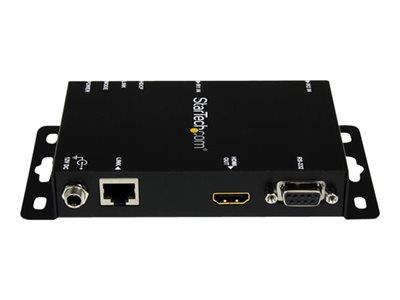

StarTech.com HDMI over Cat5 Video Extender with RS232 and IR Control

StarTech.com HDMI over Cat5 Video Extender with RS232 and IR Control

Review this product
Quicklinx: 8G5RWS00 Mfr#: ST121UTPHD2
Ordered upon request
£357.06 ex VAT
£428.47 inc VAT
Qty
Standard delivery Product out of stock. Due date unavailable.

Description

Extend an HDMI video and audio over standard CAT5 cabling, with support for RS232 Serial and Infrared control. The StarTech.com HDBaseT extender kit, extends HDMI up to 330 feet (100 Meters) over a single CAT5e or CAT6 cable. The extender supports Ultra HD and Full HD resolutions (4K / 1080p) with support for 3D and the accompanying 7.1 digital audio. For added versatility the transmitter and receiver can be used to transmit IR and RS232 serial communication over the same cable. The versatility of this video extender makes it an ideal solution for digital signage applications.

HDBaseT is a standardized, zero latency, video distribution technology that's revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video along with additional signals such as 100BaseT Ethernet, IR, RS-232 serial and power over cable.

The extender offers HDBaseT technology with HDMI, IR, and RS232 control in a single CAT 5 extender kit, for complete end-to-end control. Offering greater versatility than traditional HDMI extenders or HDMI cabling alone HDBaseT is the clear choice for every integrator and system designer. The IR extension enables you operate your display and an IR-enabled source device, such as a Blu-ray player or TV Set top box, from either end of your extension. While RS232 control let you to connect a serial I/O device at your display - an ideal solution for adding a serial touch screen interface to your remote display.

With the A/V industry quickly adopting 4K as the new high-resolution video standard, long range video distribution can be a challenge with standard HDMI cables beginning signal degradation at 30 feet.

With support for 4K you'll be amazed at how HDBaseT maintains your Ultra HD picture quality, four times the resolution of high-definition 1080p, even at 330 feet away from your video source. Plus, because the extender is still backward compatible with High-Definition 1080p displays and video sources, you can rest assured this extender will make your video source look great in any remote digital signage application.

This extender has been specially crafted for a smooth, tidy installation. HDBaseT technology allows for single cable installation, for seamless integration using existing CAT5e or CAT6 infrastructure, avoiding the hassle of running multiple cables, while reducing potential failure points. Mounting hardware is also built-in to both the extender and receiver for discrete, professional mounting.

Specifications

Summary

Product Description
StarTech.com 330 ft. (100 m) HDMI Over CAT5e / CAT6 HDbaseT Extender - UHD 4K - IR Extension - RS232 Extension - Power Over Ethernet (ST121UTPHD2) - video/infrared/serial extender - 10Mb LAN, HDMI
Device Type
Video/infrared/serial extender
Form Factor
External
Data Transfer Rate
3.4 Gbps
Data Link Protocol
10Mb LAN, HDMI
Transmission Medium
CAT 5e/6
Max Transfer Distance
100 m
Power
AC 120/230 V
Dimensions (WxDxH)
8 cm x 15 cm x 2.5 cm
Weight
305 g
Manufacturer Warranty
2-year warranty
Designed For
P/N: SVA12M2NEUA, SVA12M5NA


Detailed Specification

General

Device Type
Video/infrared/serial extender
Form Factor
External
Colour
Black

Networking

Connectivity Technology
Wired
Data Link Protocol
10Mb LAN, HDMI
Data Transfer Rate
3.4 Gbps
Max Resolution
1080p @ 60 Hz
Max Transfer Distance
100 m
Features
HDCP compliant

Expansion / Connectivity

Interfaces
1 x video - HDMI - 19 pin HDMI Type A , 1 x RS-232 (management) - DB-9 , 1 x IrDA

Miscellaneous

Compliant Standards
FCC, RoHS

Power

Power Device
External power adapter
Installed Qty
2
Voltage Required
AC 120/230 V

Dimensions & Weight

Width
8 cm
Depth
15 cm
Height
2.5 cm
Weight
305 g

Manufacturer Warranty

Service & Support
Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
70 °C
Humidity Range Operating
0 - 95%

Compatibility Information

Designed For
P/N: SVA12M2NEUA, SVA12M5NA
