Description

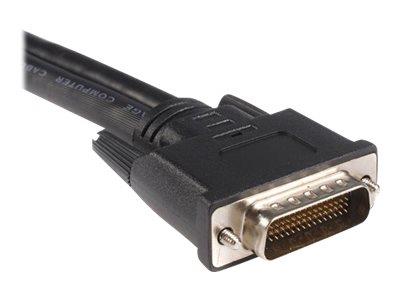

Connect one VGA monitor and one DVI monitor to your DMS / LFH graphics card. This DMS 59 to DVI and VGA Y cable allows you to break out one LFH 59 or LFH 60 (DMS 59 and DMS 60) connection on Matrox Qid, nVidia Quadro, and PNY Quadro cards into one DVI-I dual link female connector and one high density DB15 female connector, letting you to connect one VGA monitor and one DVI monitor for a cost-effective dual display solution.
Specifications
Summary
- Product Description
- StarTech.com DMS 59 Splitter Cable - 8in - DMS 59 to 1 x DVI / 1 x VGA - Y Cable - DMS 59 to VGA - Monitor Splitter Cable - DMS 59 Cable (DMSDVIVGA1) - display cable - 20 cm
- Type
- Display cable - dual link
- Length
- 20 cm
- Connectors
- DMS-59 - male
- Connectors (Second End)
- HD-15 (VGA) - female , DVI-I - female
- Compliant Standards
- RoHS
- Colour
- Black
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Type
- Display cable
- TMDS Links
- Dual link
- Length
- 20 cm
- Colour
- Black
Connectivity
- Connectors
- DMS-59 - male
- Connectors (Second End)
- 15 pin HD D-Sub (HD-15) - female , 24+5 pin combined DVI - female
Miscellaneous
- Compliant Standards
- RoHS
Manufacturer Warranty
- Service & Support
- Limited lifetime warranty
